Extension Housing Seal: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    VEHICLES WITHOUT A FIXED FLANGE

  1. Using the special tool, install the output shaft seal.
    Fig 1: Installing Output Shaft Seal Using Special Tool
    G03380994Courtesy of FORD MOTOR CO.

    2. VEHICLES WITH A FIXED FLANGE

  2. Using the special tool, install the output shaft seal.

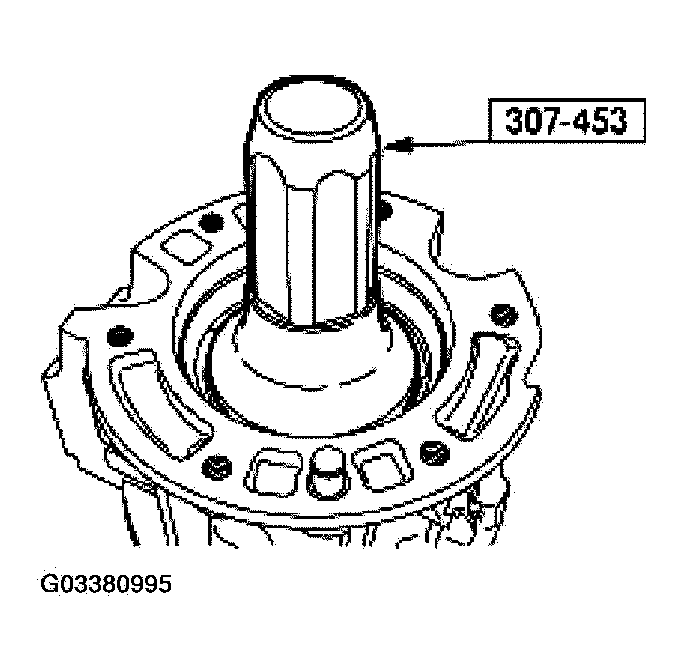

    Fig 2: Installing Output Shaft Seal Using Special Tool
    G03380995Courtesy of FORD MOTOR CO.
  3. Using the special tool, install a new output shaft nut.
    Fig 3: Installing New Output Shaft Nut Using Special Tool
    G03380996Courtesy of FORD MOTOR CO.
  4. Install the output shaft flange.
    1. Install the output shaft flange.
    2. Install a new bolt.

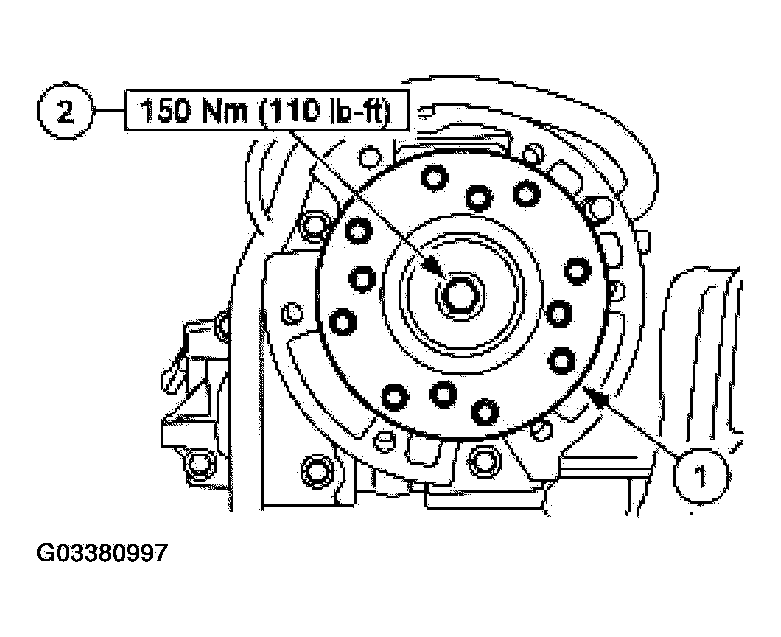

      Fig 4: Installing Output Shaft Flange And Bolt
      G03380997Courtesy of FORD MOTOR CO.

      3. ALL VEHICLES

  5. Install the driveshaft.
