Section 727 (Automatic Transmission - 5R110W): Disassembly: Transmission

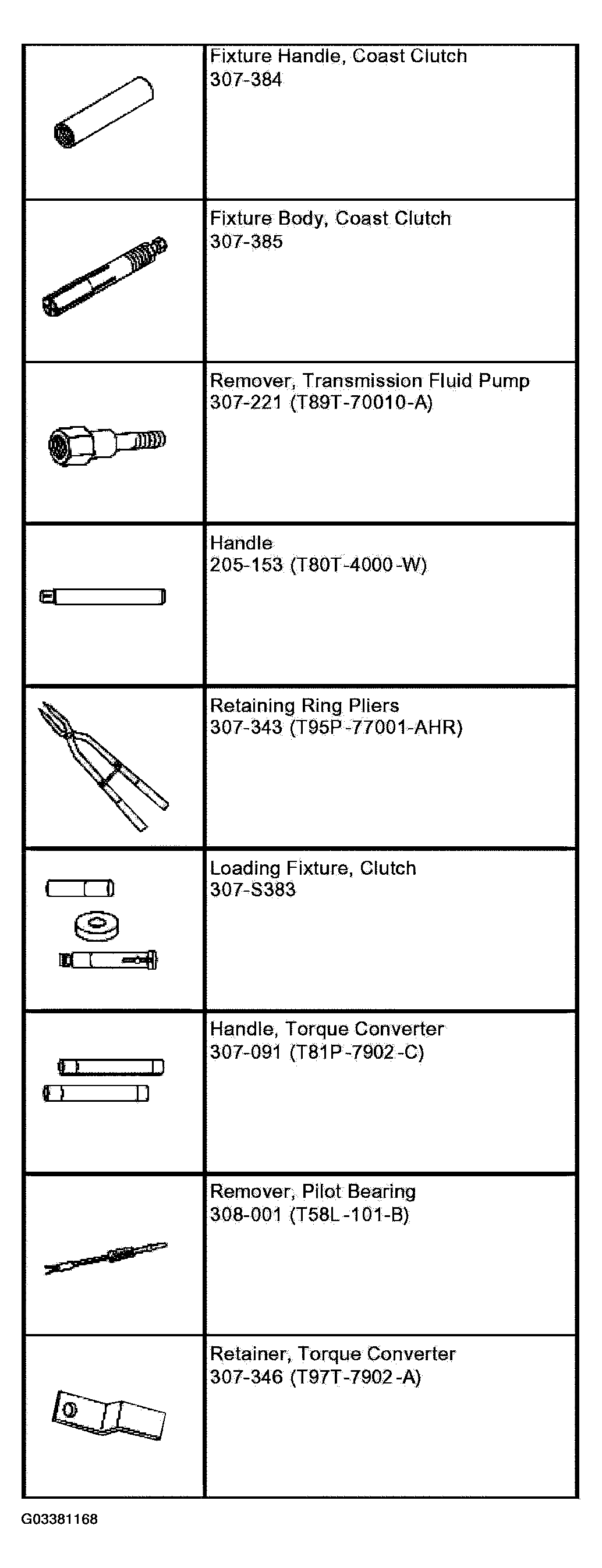

Special Tool(s)

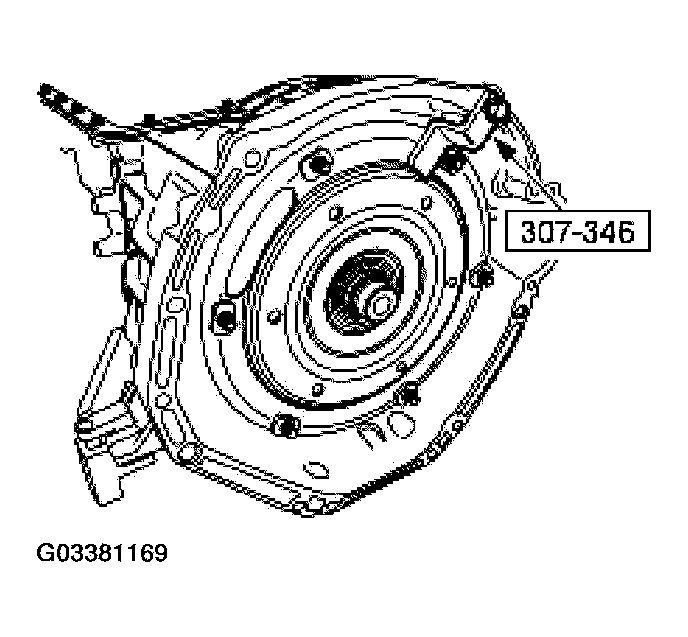

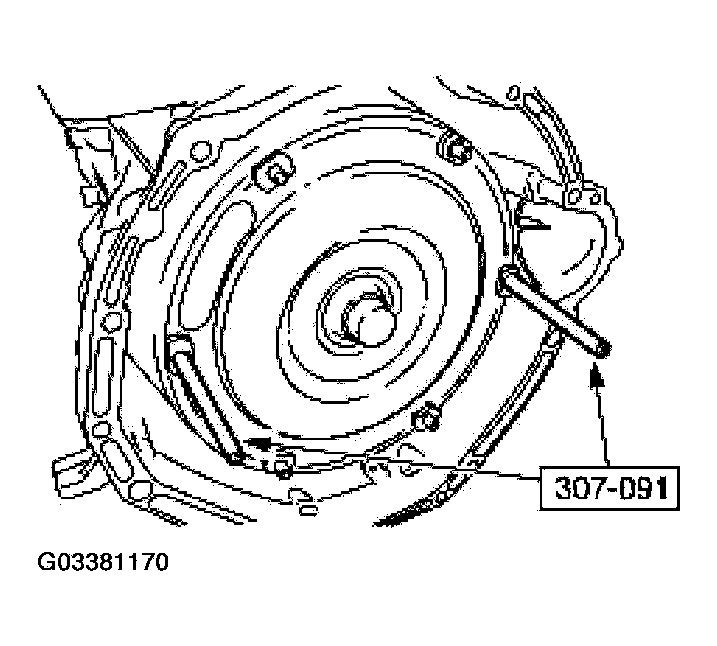

Fig 1: Identifying Special Tool (1 Of 2)

Courtesy of FORD MOTOR CO.

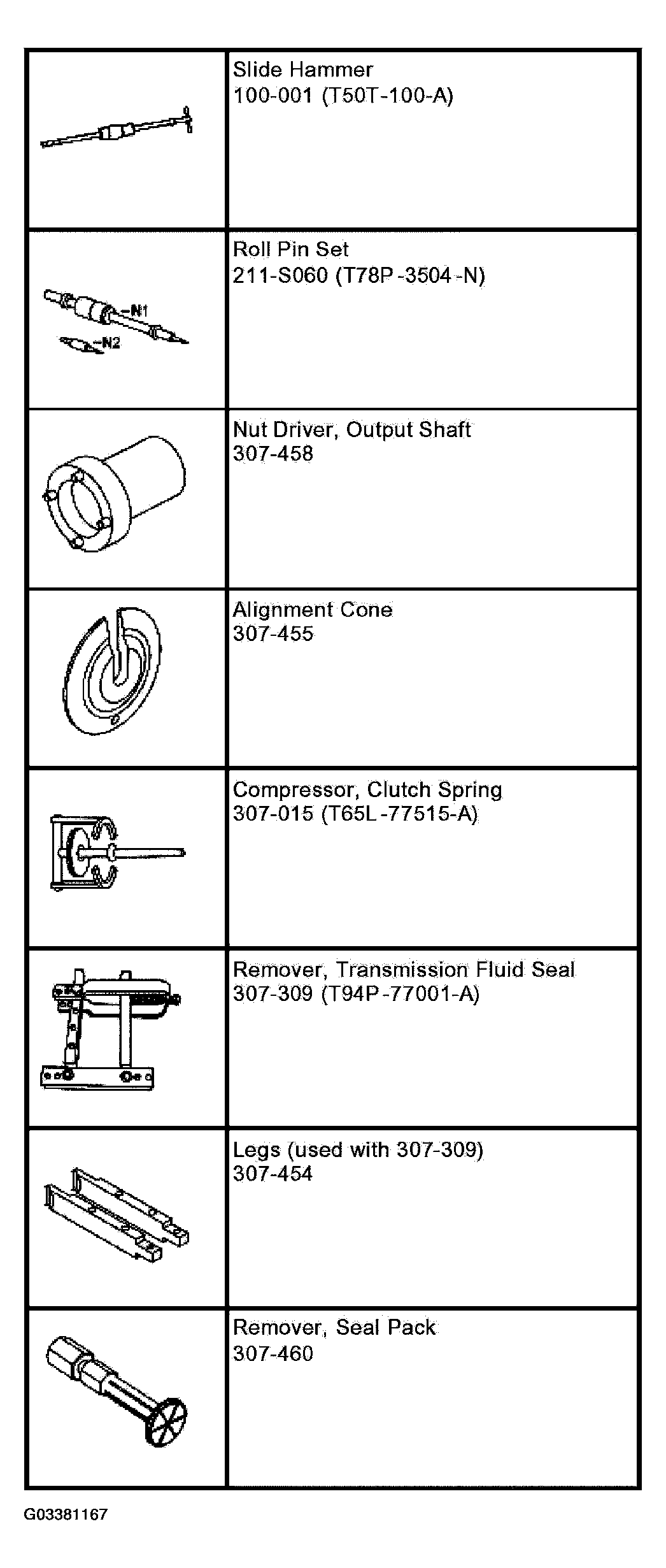

Fig 2: Identifying Special Tool (2 Of 2)

Courtesy of FORD MOTOR CO.

1. Remove the special tool.
   Fig 3: Removing Special Tool

   Courtesy of FORD MOTOR CO.
WARNING: Use the special tools when removing the torque converter because it is very heavy. Failure to follow may result in personal injury.
NOTE: Fluid loss will occur when removing the torque converter.

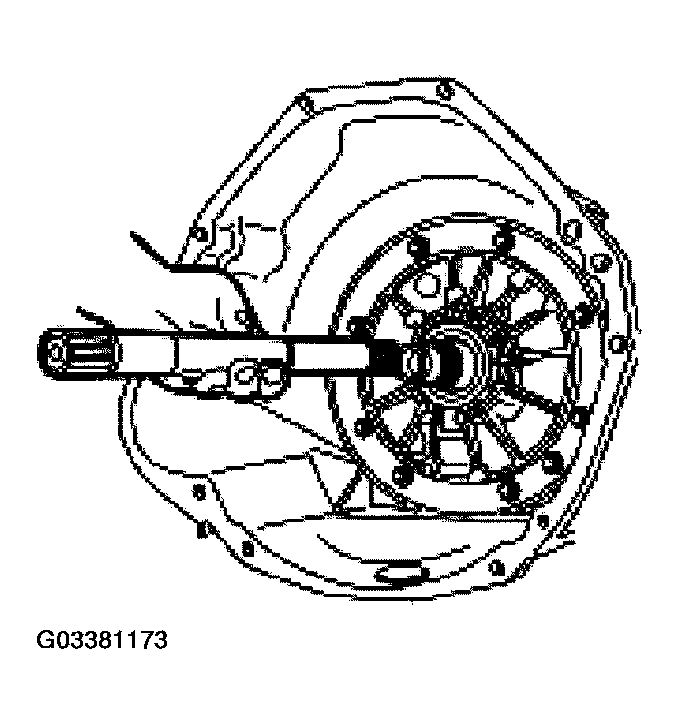

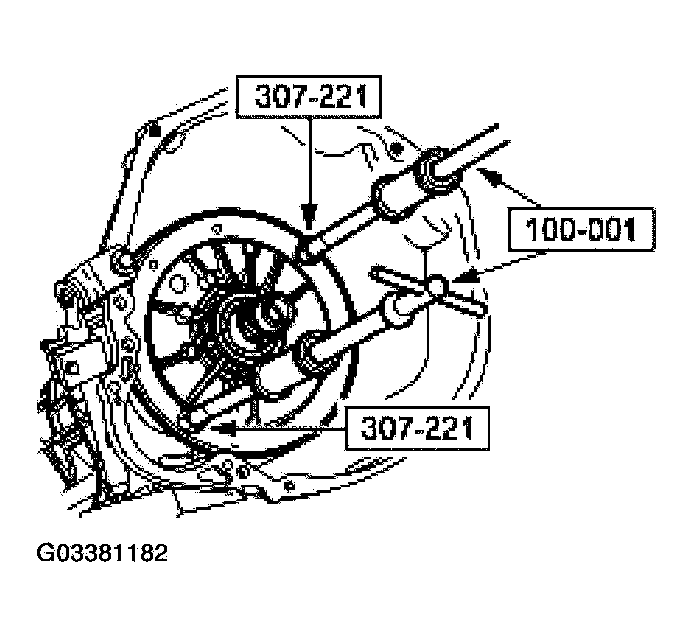

Fig 4: Removing Torque Converter Using Special Tool
Courtesy of FORD MOTOR CO.
2. Using the special tools, remove the torque converter.
3. Remove the intermediate shaft and turbine shaft speed combination sensor.
   1. Remove the bolt.
   2. Remove the sensor.

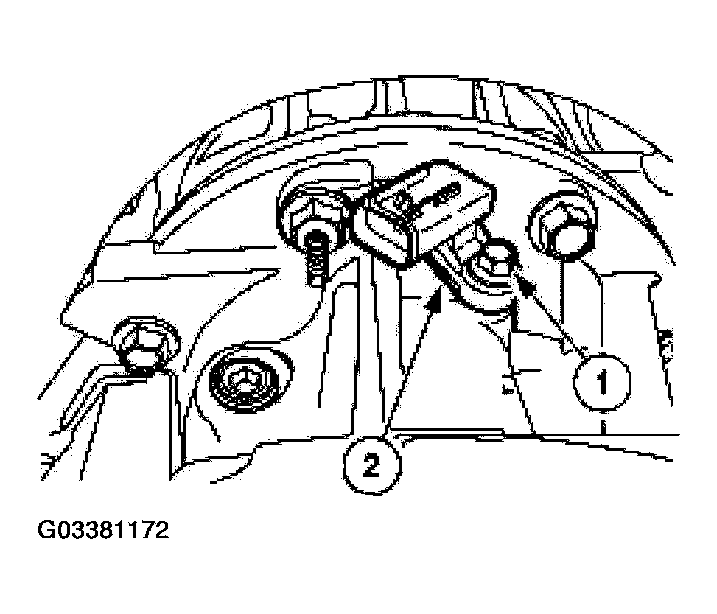

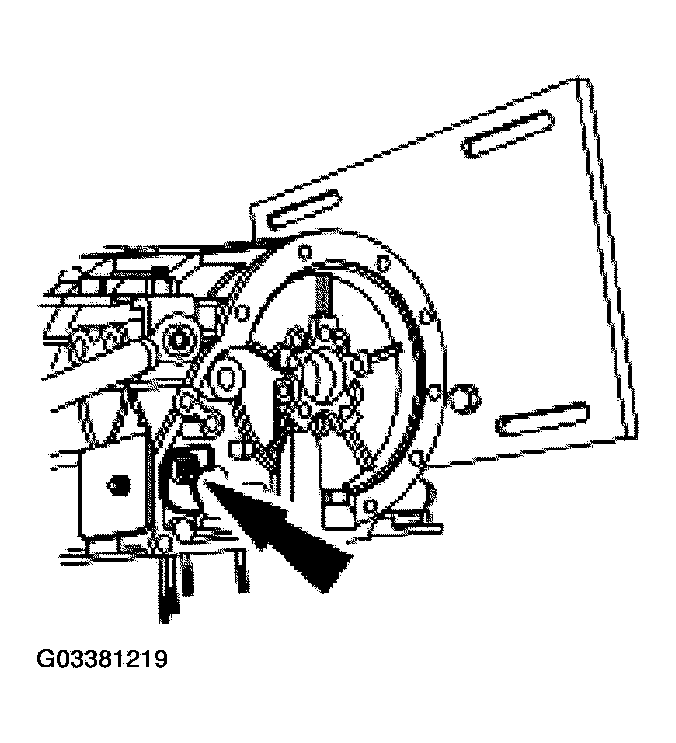

      Fig 5: Removing Bolt And Sensor

      Courtesy of FORD MOTOR CO.
4. Remove the output shaft speed sensor (OSS).
   1. Remove the bolt.
   2. Remove the output shaft speed sensor (OSS).
      Fig 6: Removing Output Shaft Speed Sensor (OSS)

      Courtesy of FORD MOTOR CO.
5. Mount the transmission onto a suitable stand.

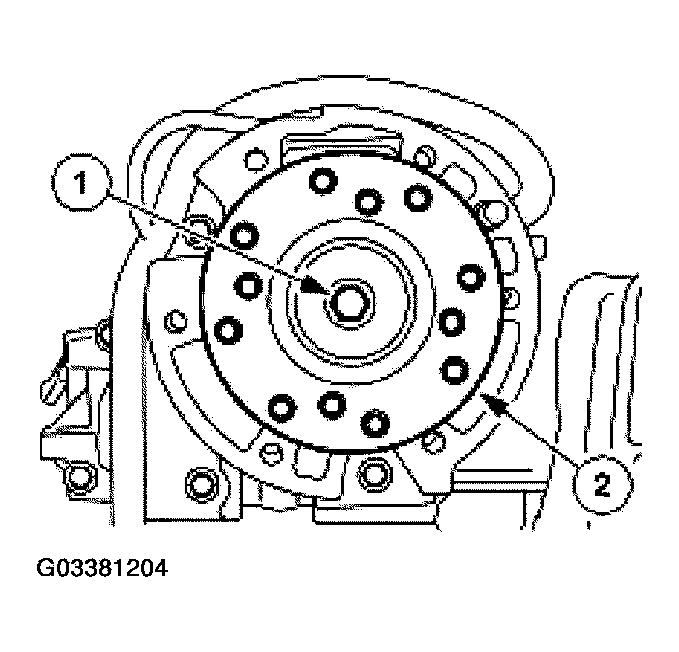

6. Remove the input shaft. Remove and discard the stator support seal.

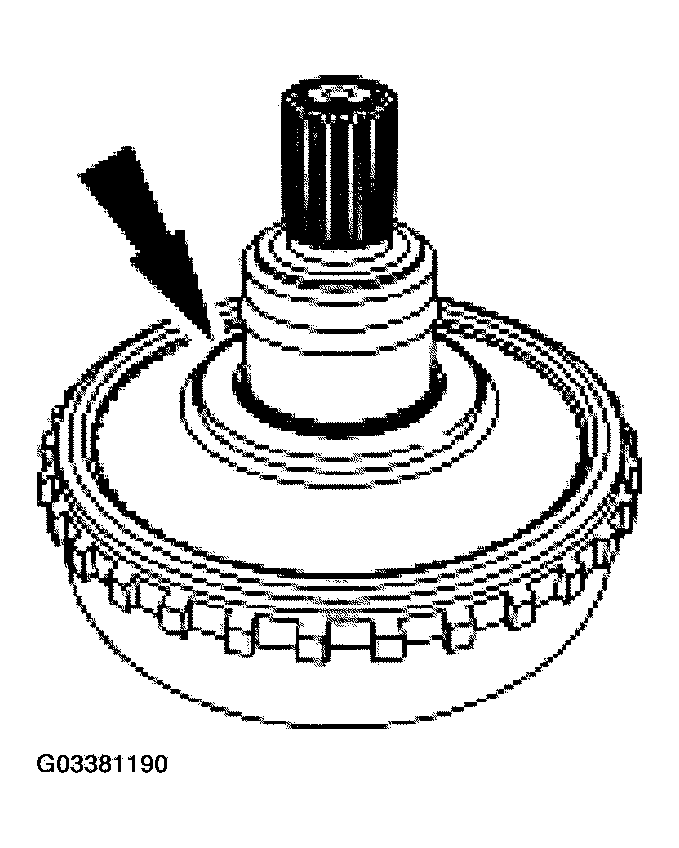

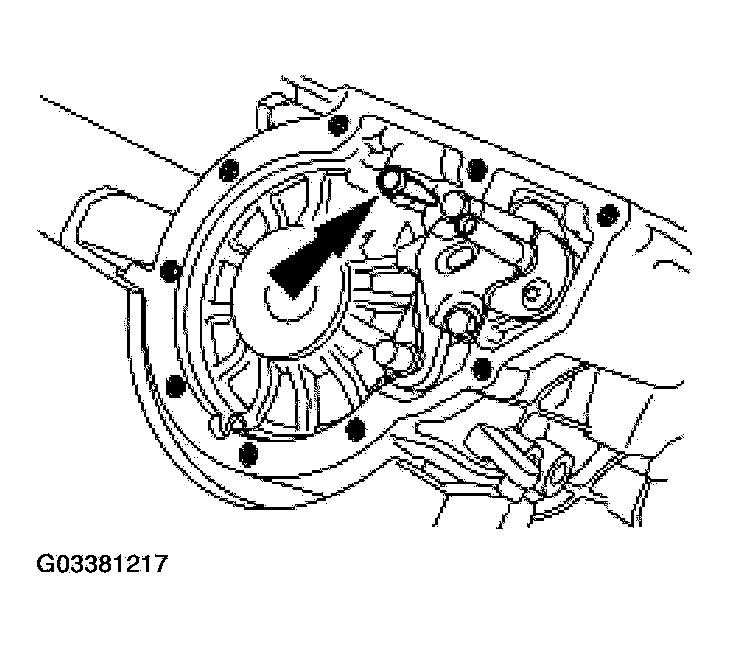

   Fig 7: Removing Input Shaft

   Courtesy of FORD MOTOR CO.

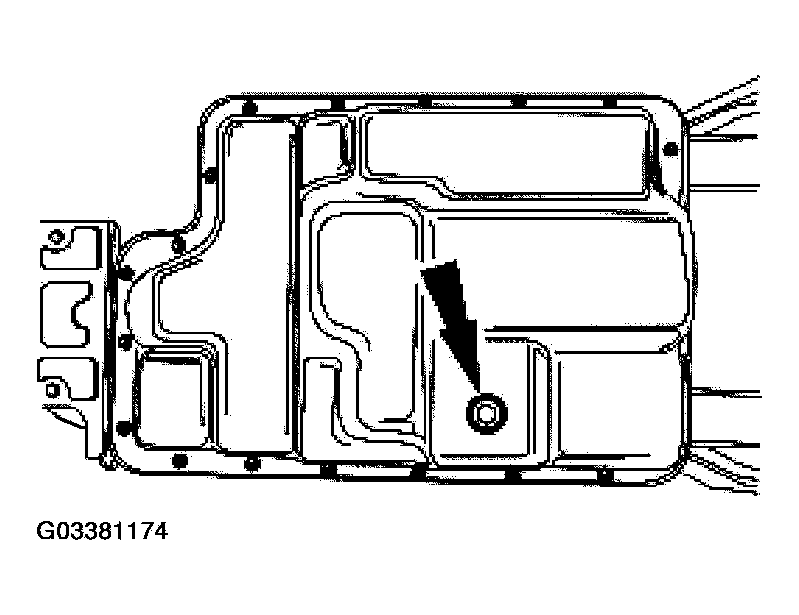

7. Install a new drain plug and seal if there is evidence of leaking.
   Fig 8: Installing Drain Plug And Seal

   Courtesy of FORD MOTOR CO.
NOTE: Do not discard the gasket unless damaged. This is a reusable gasket.

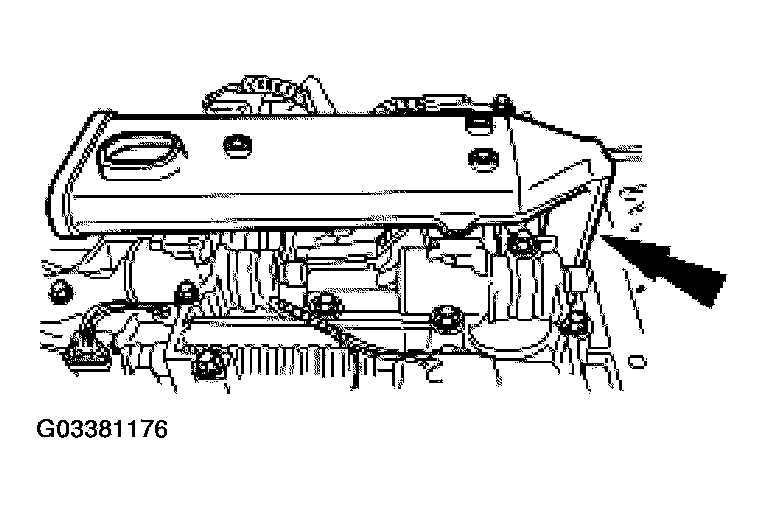

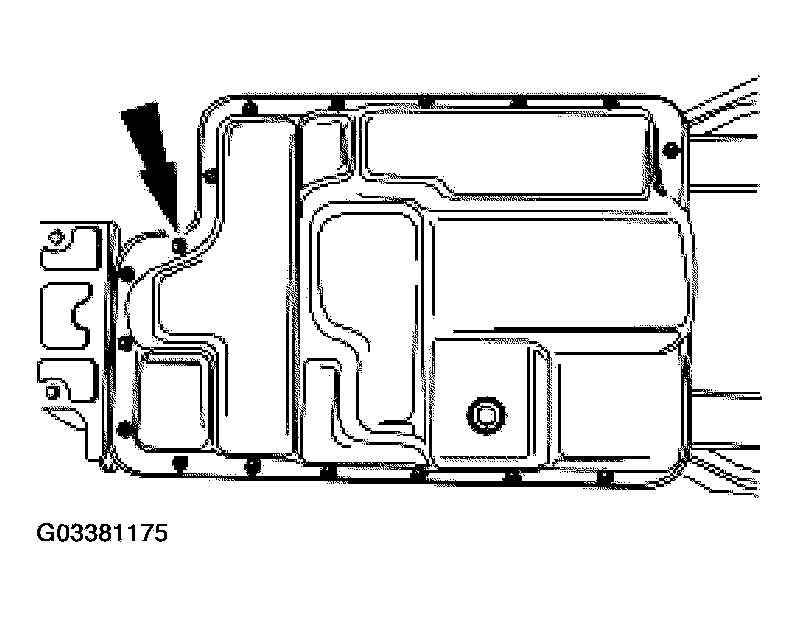

Fig 9: Removing Transmission Fluid Pan And Gasket
Courtesy of FORD MOTOR CO.
8. Remove the transmission fluid pan and the gasket. Check and clean the magnet if debris is evident.
NOTE: After removal, discard the filter and seal assembly.
Fig 10: Removing Filter And Seal Assembly
Courtesy of FORD MOTOR CO.
9. Remove the filter and seal assembly by carefully pulling and rotating the filter as necessary.
CAUTION: There is no retainer on the manual valve. Hold the manual valve in place while removing the solenoid assembly from the transmission to avoid dropping the valve.

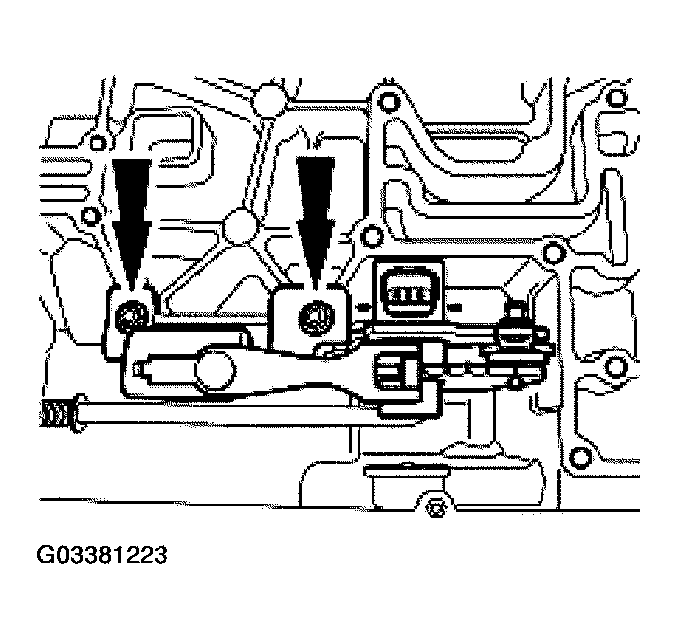

10. Remove the solenoid body.
    1. Disconnect the transmission range sensor.
    2. Remove the solenoid body bolts.
    3. Remove the solenoid body.

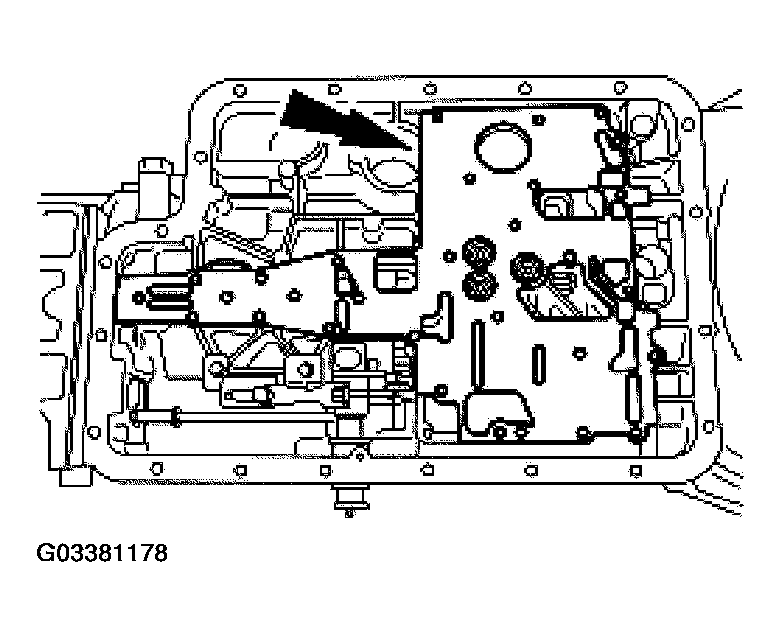

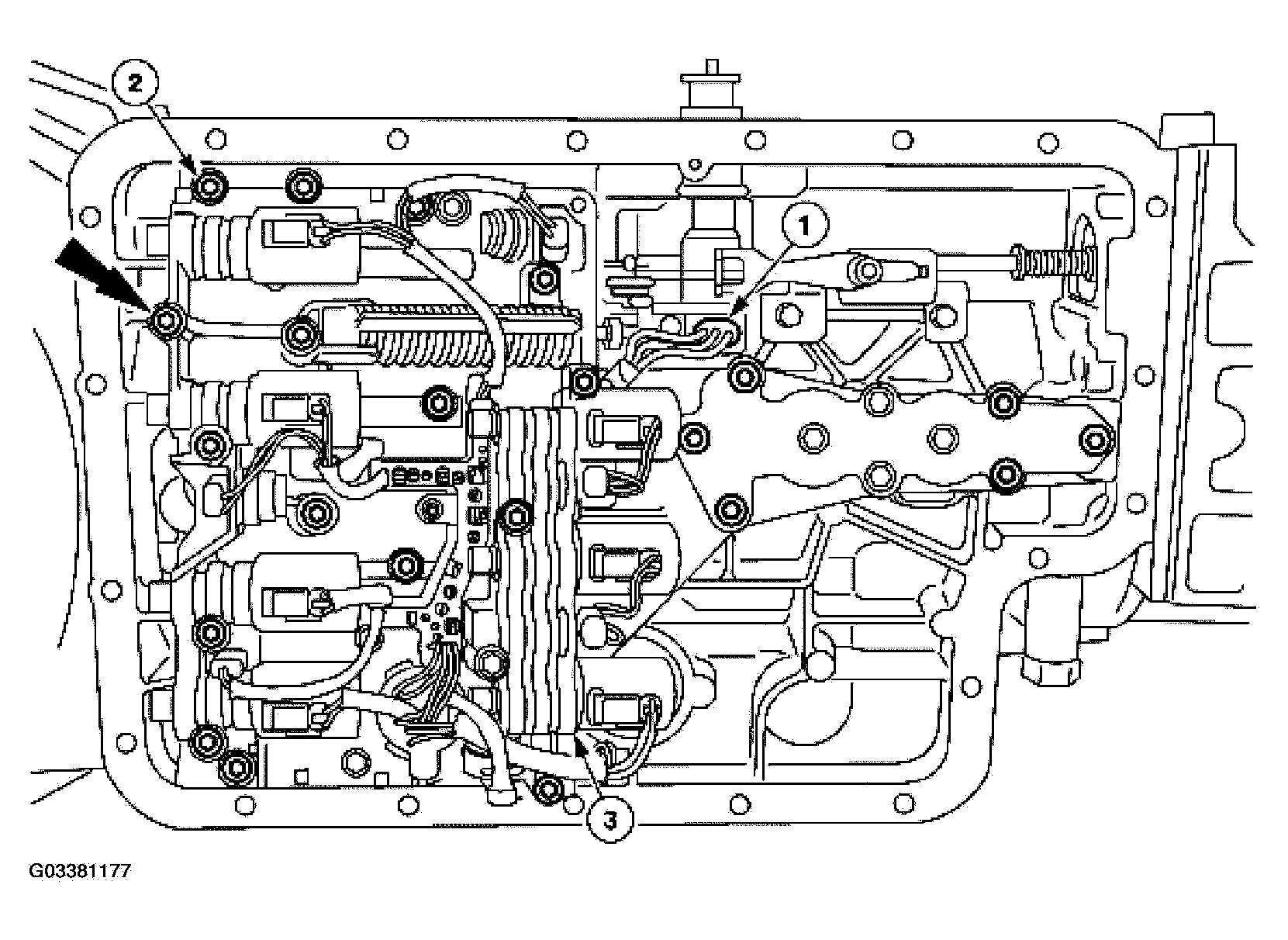

       Fig 11: Removing Solenoid Body Bolts And Solenoid Body

       Courtesy of FORD MOTOR CO.
11. Remove and discard the solenoid body gasket.
    Fig 12: Removing Solenoid Body Gasket

    Courtesy of FORD MOTOR CO.

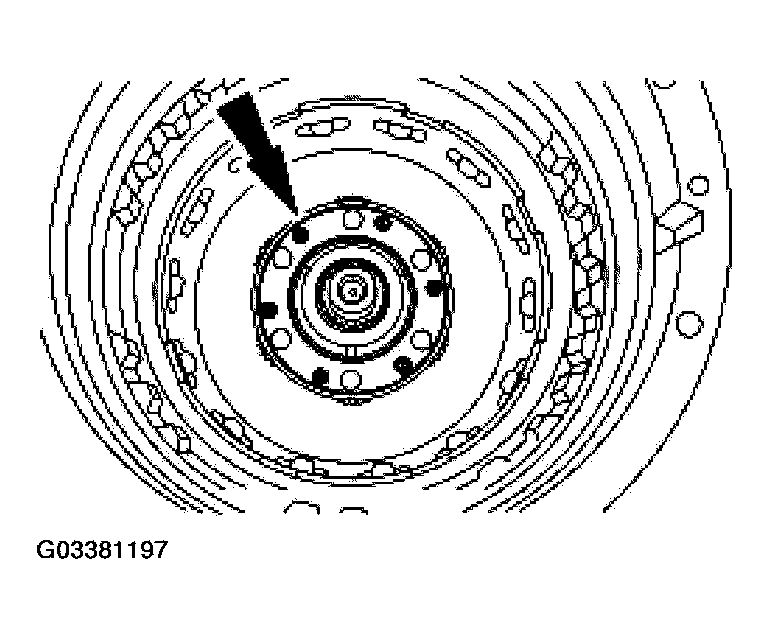

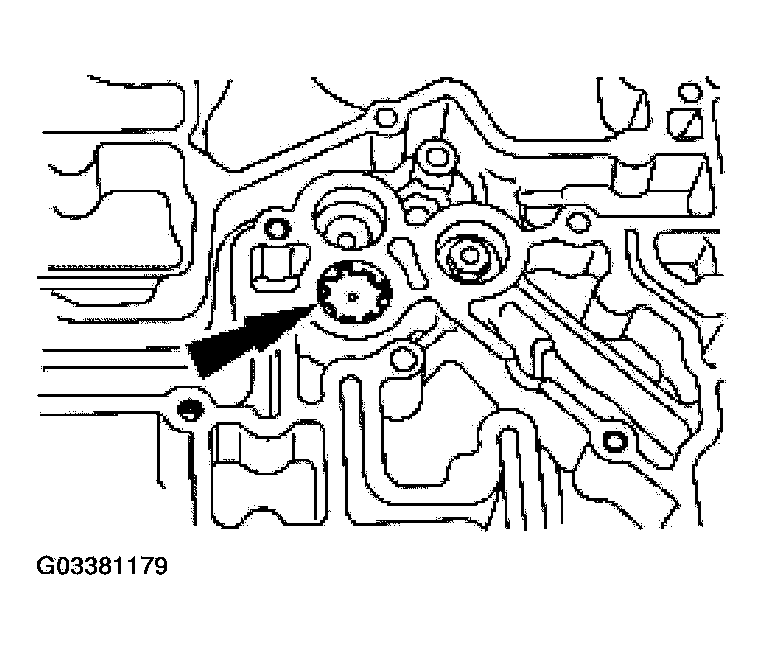

12. Remove the forward clutch orifice.
    Fig 13: Removing Forward Clutch Orifice

    Courtesy of FORD MOTOR CO.

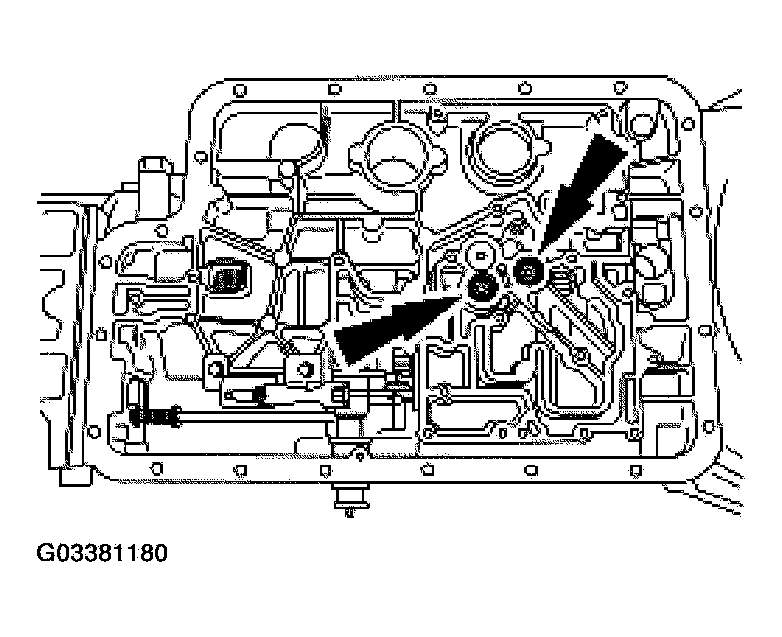

13. Remove the feedbolts.

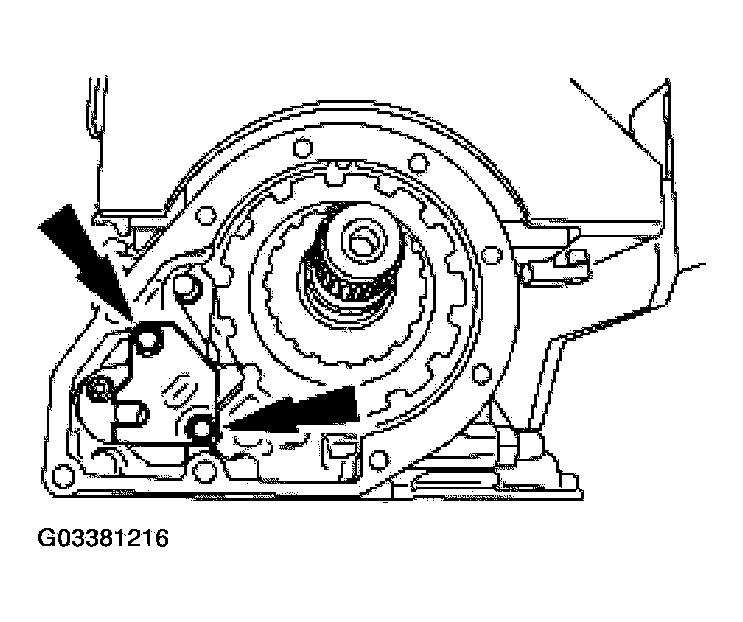

    Fig 14: Removing Feedbolts

    Courtesy of FORD MOTOR CO.

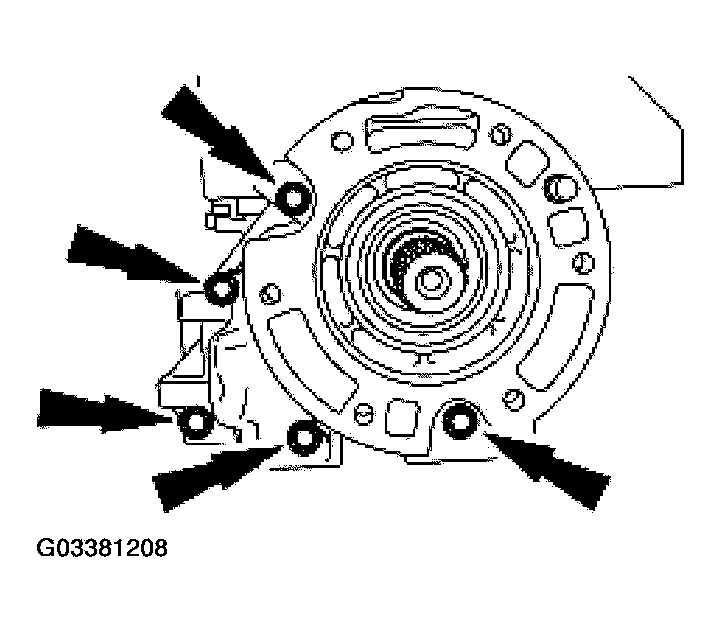

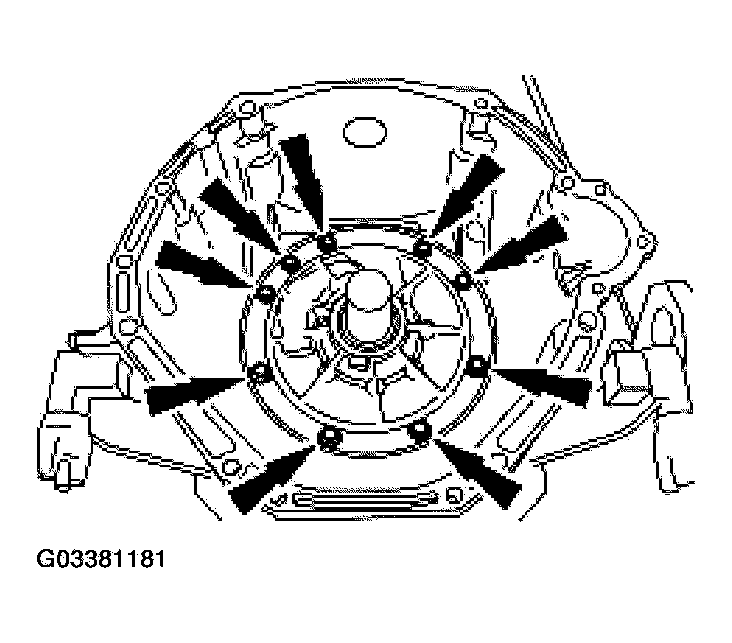

14. Remove and discard the front pump bolts.
    Fig 15: Removing Front Pump Bolts

    Courtesy of FORD MOTOR CO.

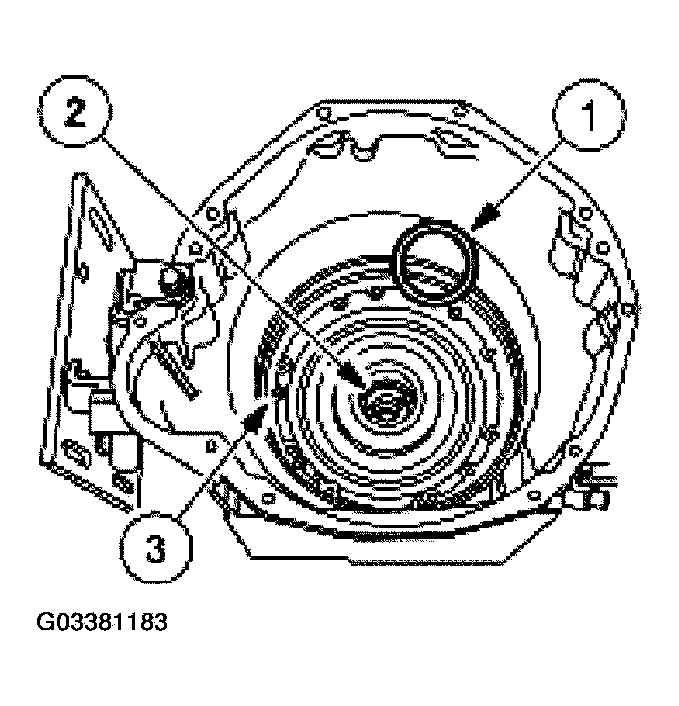

15. Using the special tools, remove the front pump.

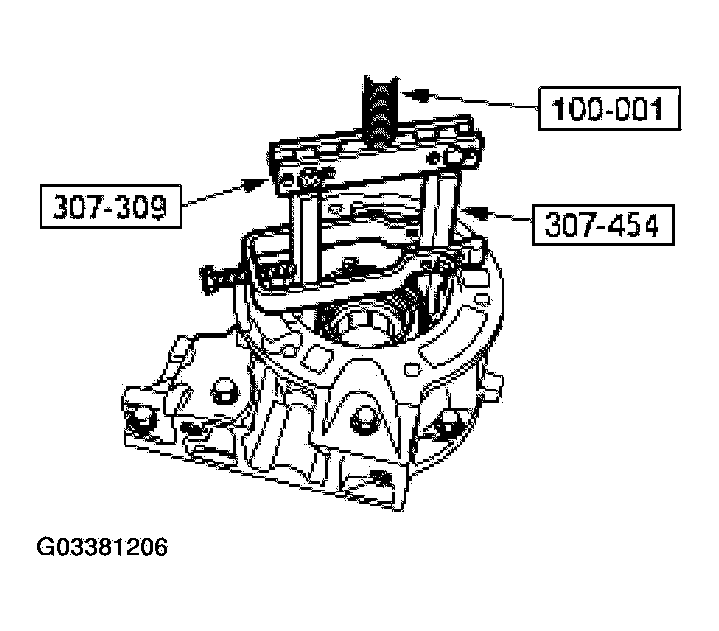

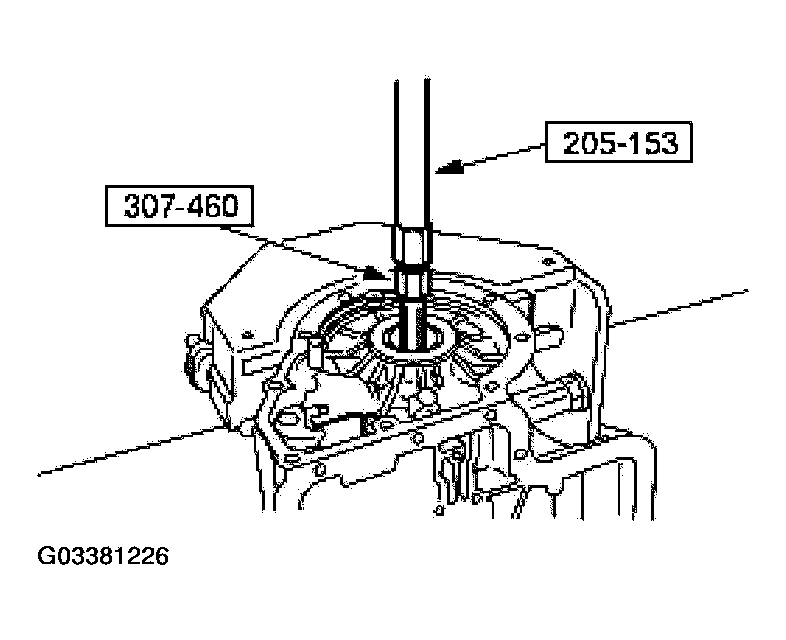

    Fig 16: Removing Front Pump Using Special Tool

    Courtesy of FORD MOTOR CO.

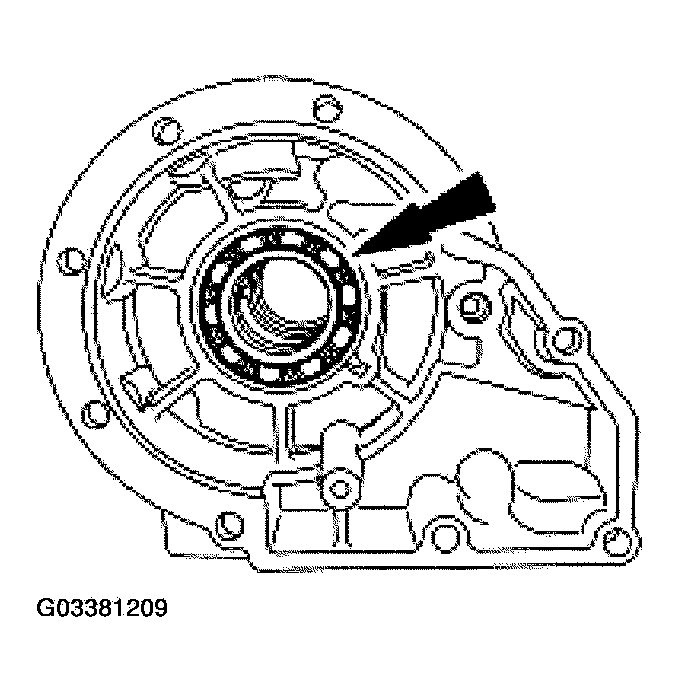

NOTE: The No. 1 pump thrust washer and the No. 2A overdrive sun gear thrust bearing may stay with the pump.

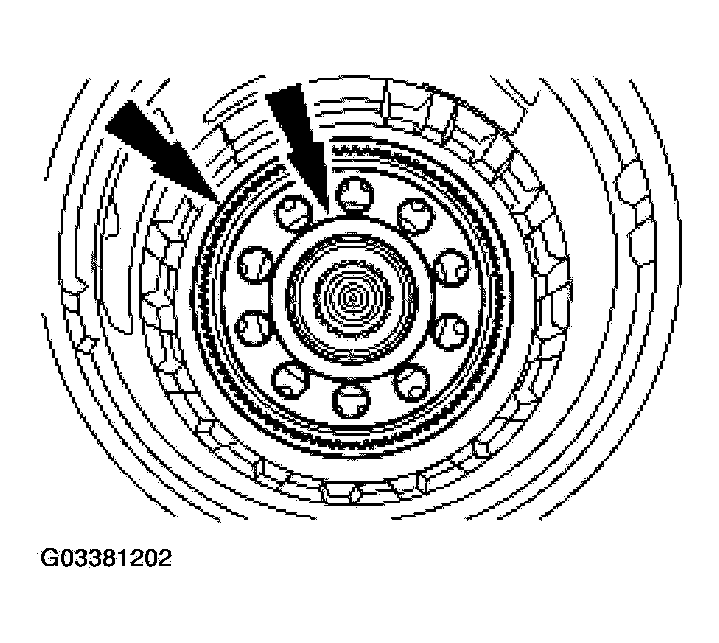

16. Remove the No. 1 pump thrust washer.
    1. Remove the No. 1 pump thrust washer.
    2. Remove the No. 2A overdrive sun gear thrust bearing.
    3. Remove the pump gasket and discard.

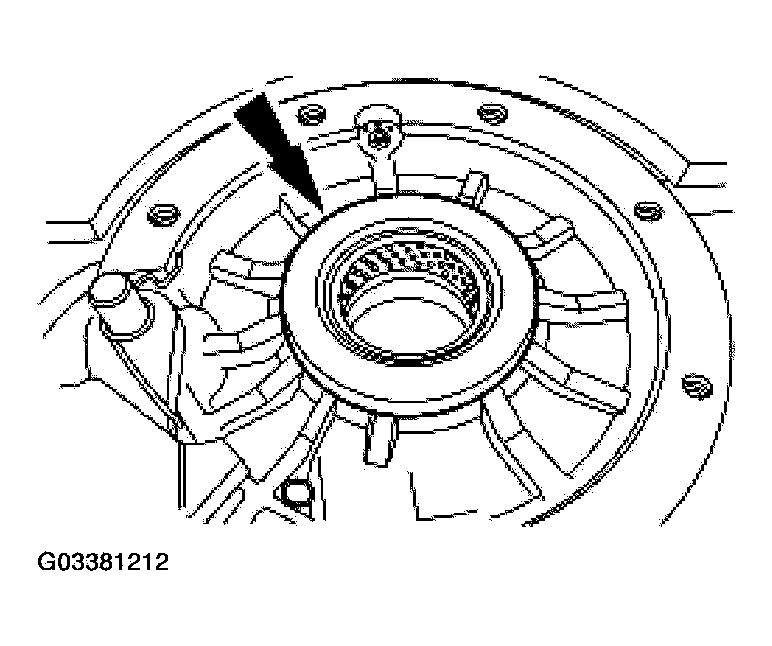

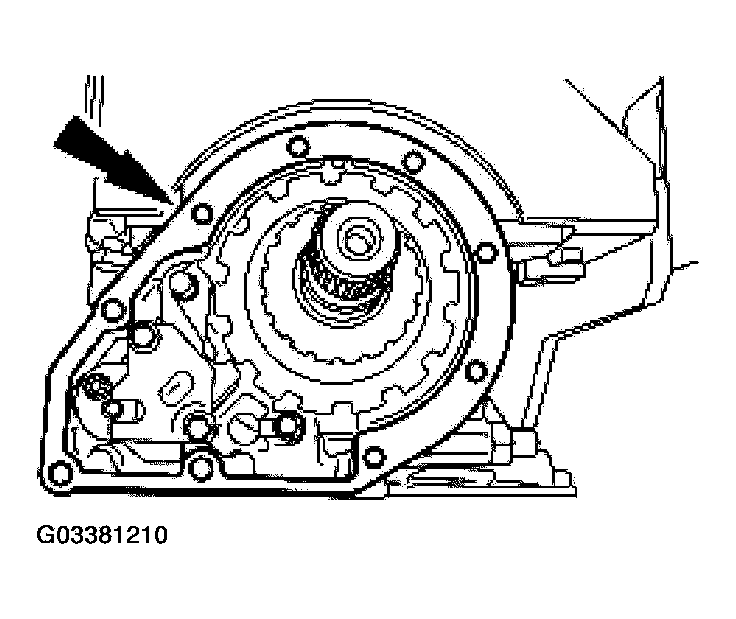

       Fig 17: Removing Pump Gasket

       Courtesy of FORD MOTOR CO.

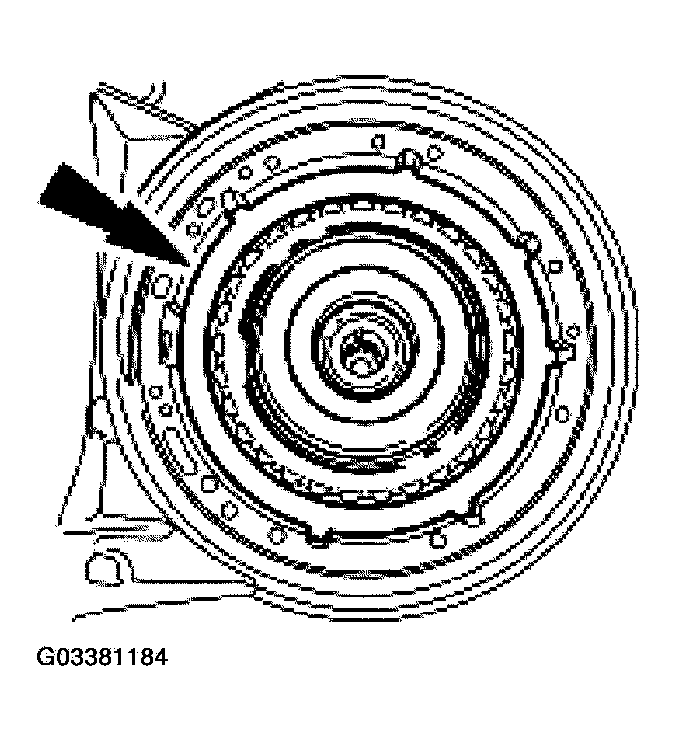

17. Remove the overdrive separator plates, clutch plates and overdrive pressure plate.
    Fig 18: Removing Overdrive Separator Plates, Clutch Plates And Overdrive Pressure Plate

    Courtesy of FORD MOTOR CO.

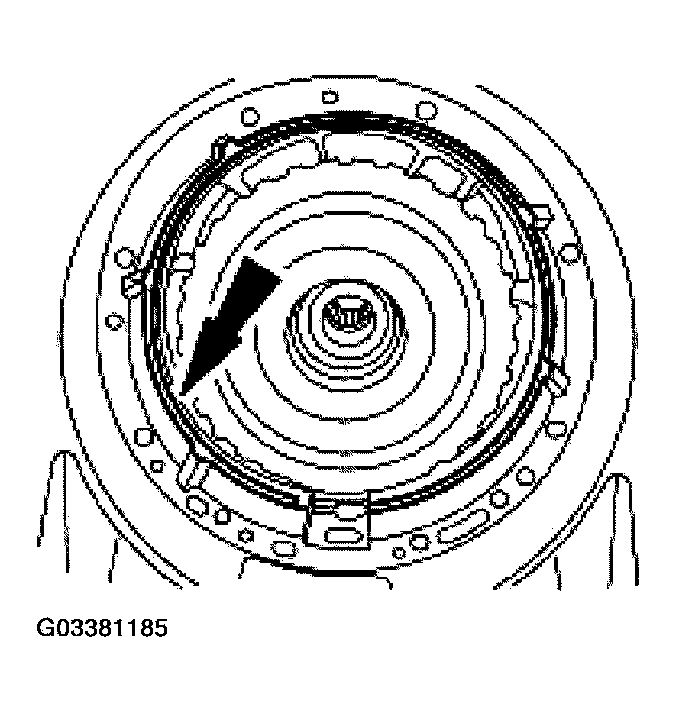

18. Remove the overdrive clutch retaining ring.
    Fig 19: Removing Overdrive Clutch Retaining Ring

    Courtesy of FORD MOTOR CO.

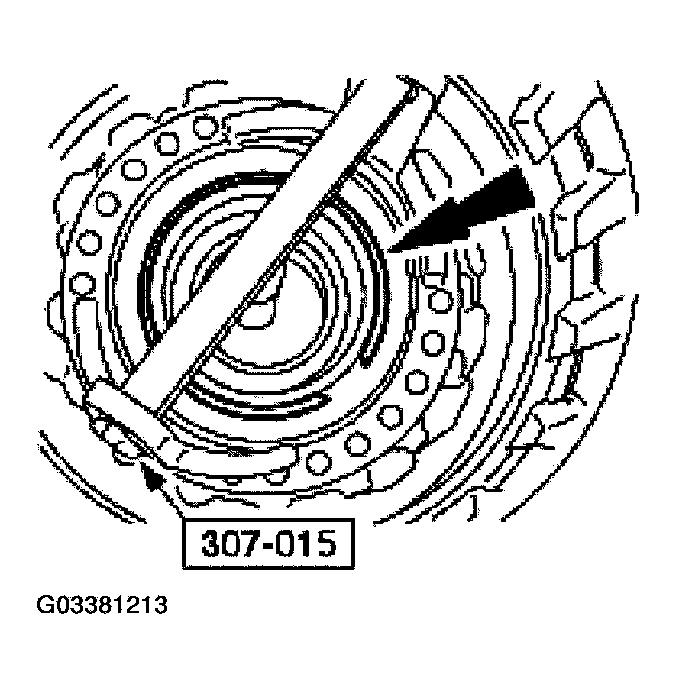

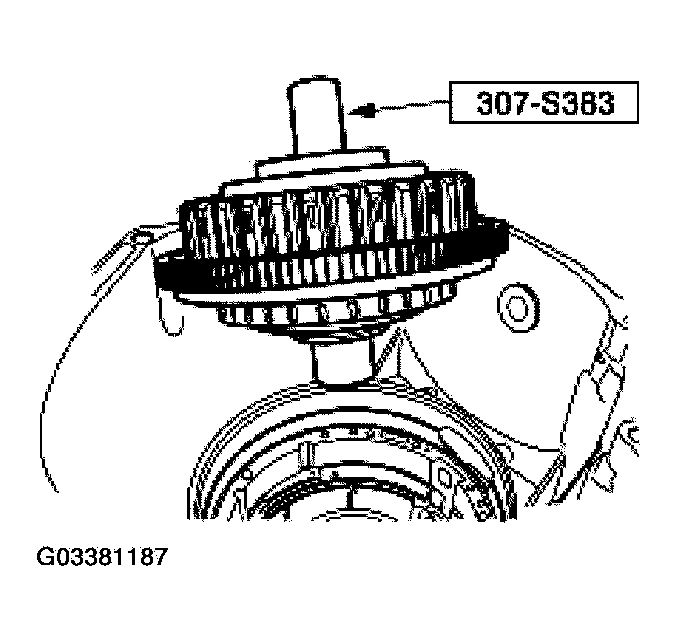

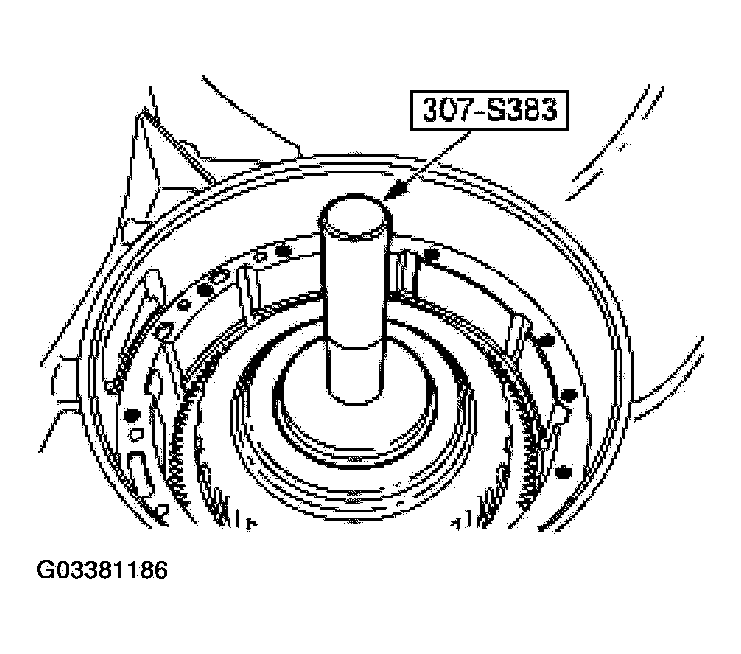

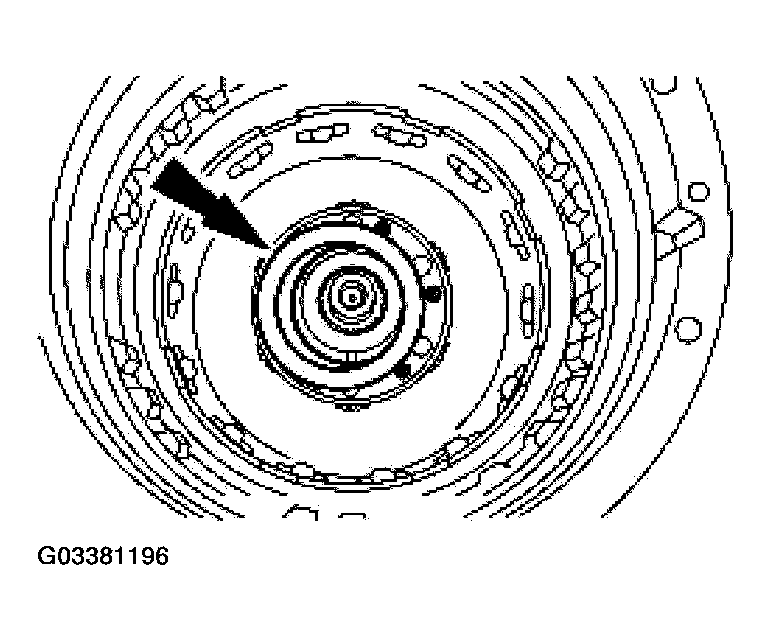

19. Install the special tool.
    Fig 20: Installing Special Tool

    Courtesy of FORD MOTOR CO.

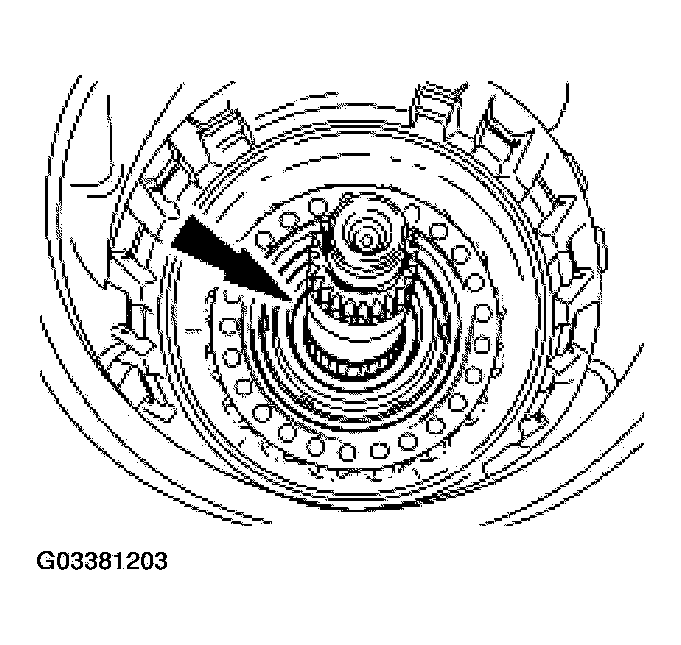

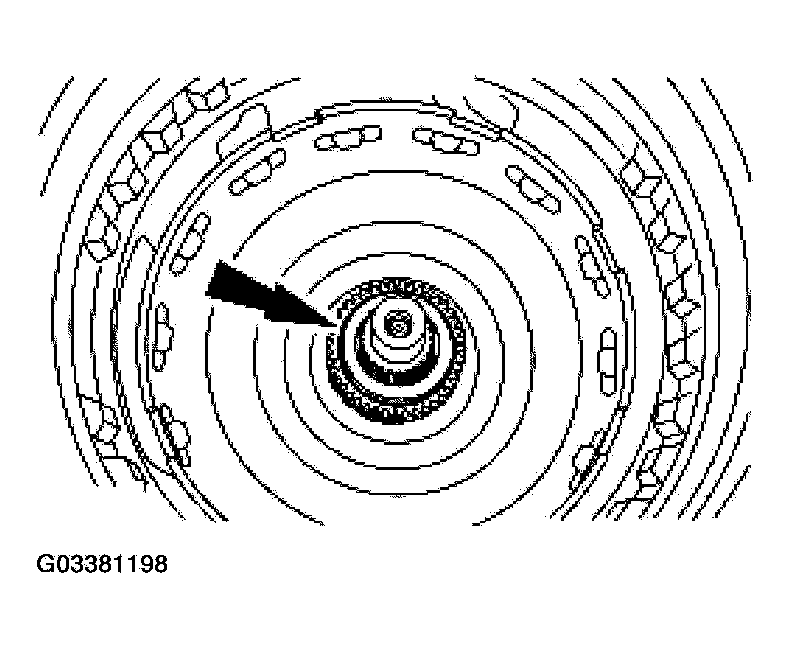

NOTE: The No. 3 overdrive carrier thrust bearing and race assembly may come out with the coast clutch cylinder assembly or it may stay in the transmission.
Fig 21: Removing Coast Clutch Cylinder Assembly
Courtesy of FORD MOTOR CO.

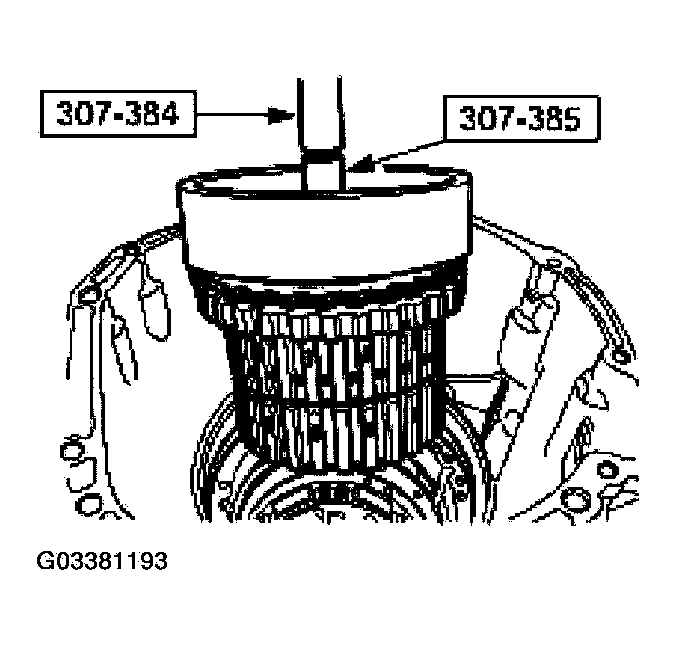

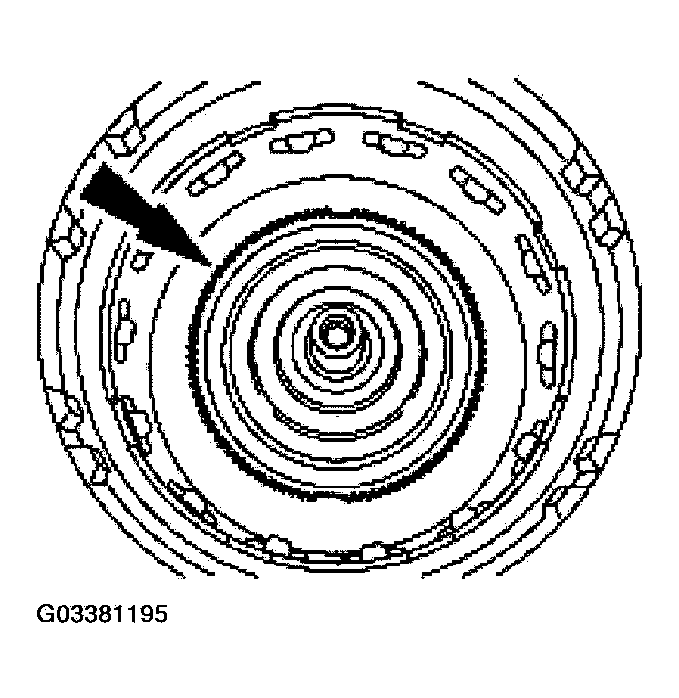

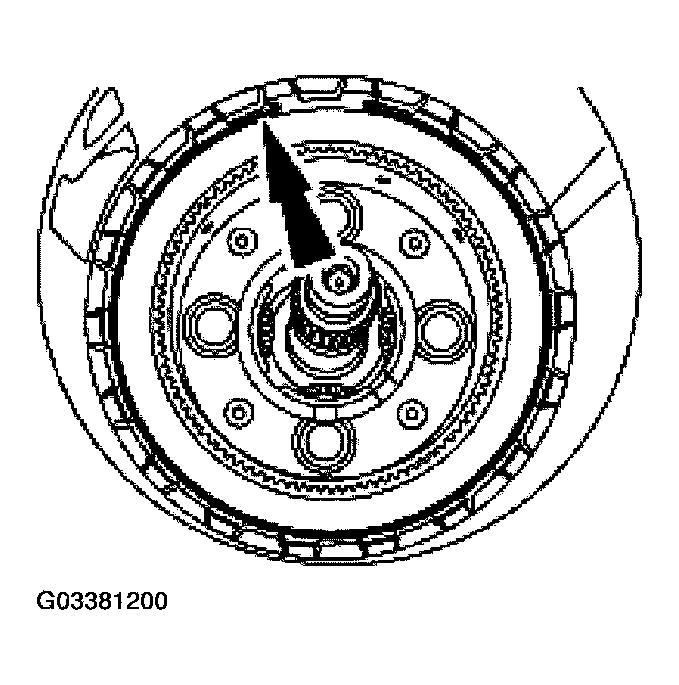

20. Using the special tool, remove the coast clutch cylinder assembly.
21. Remove the No. 4 thrust bearing.

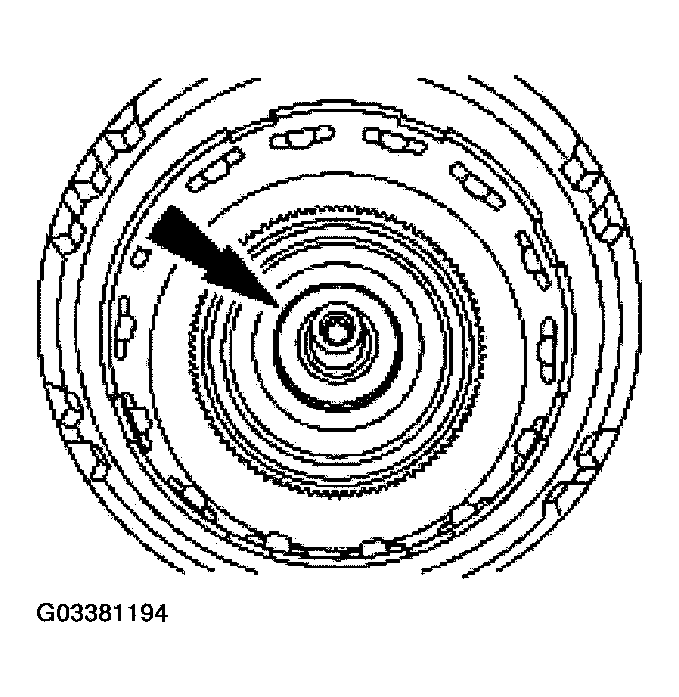

    Fig 22: Removing No. 4 Thrust Bearing

    Courtesy of FORD MOTOR CO.

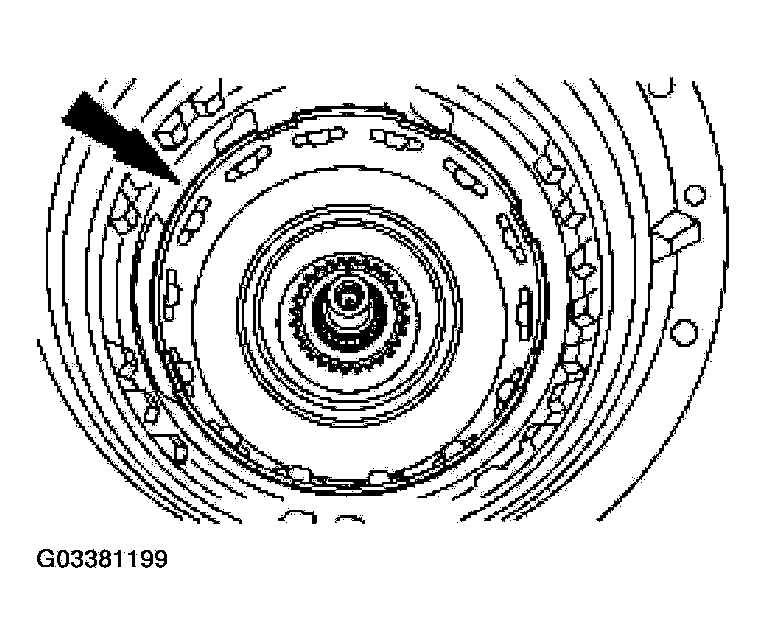

22. Remove the overdrive ring gear and center shaft.

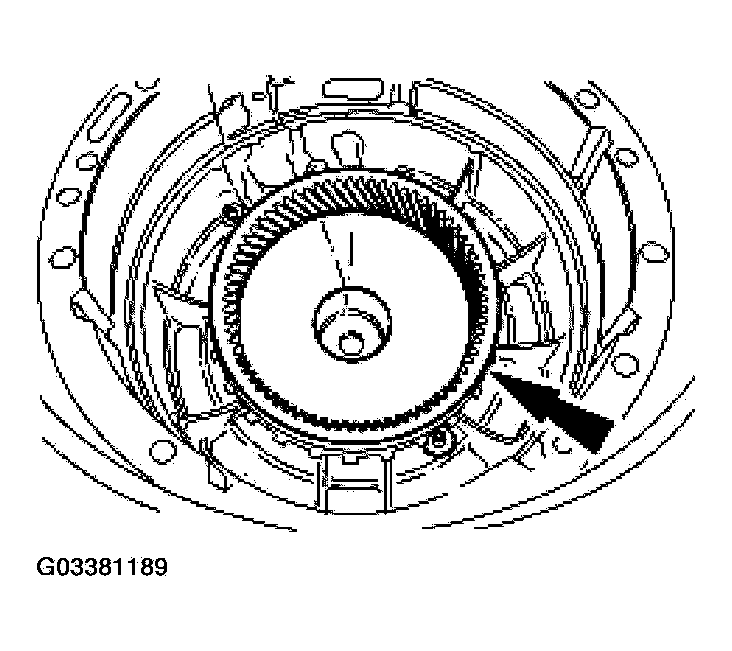

    Fig 23: Removing Overdrive Ring Gear And Center Shaft

    Courtesy of FORD MOTOR CO.

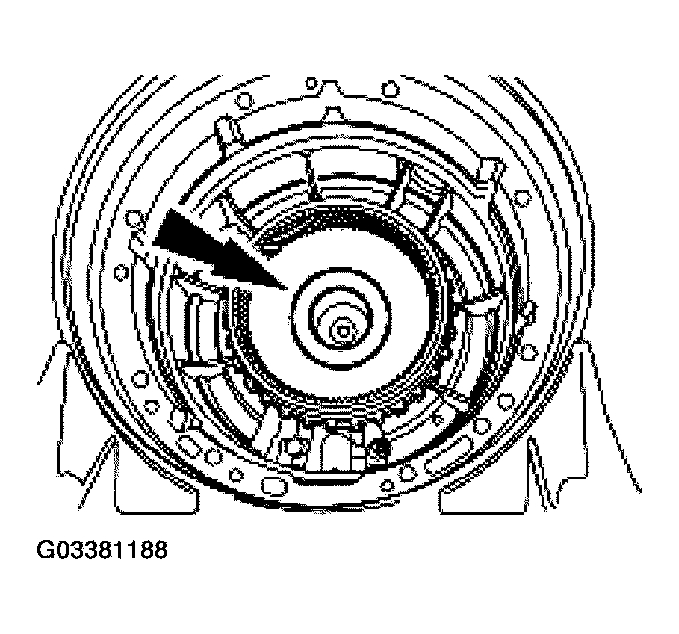

23. Remove the No. 5 sun gear thrust bearing.
    Fig 24: Removing No. 5 Sun Gear Thrust Bearing

    Courtesy of FORD MOTOR CO.

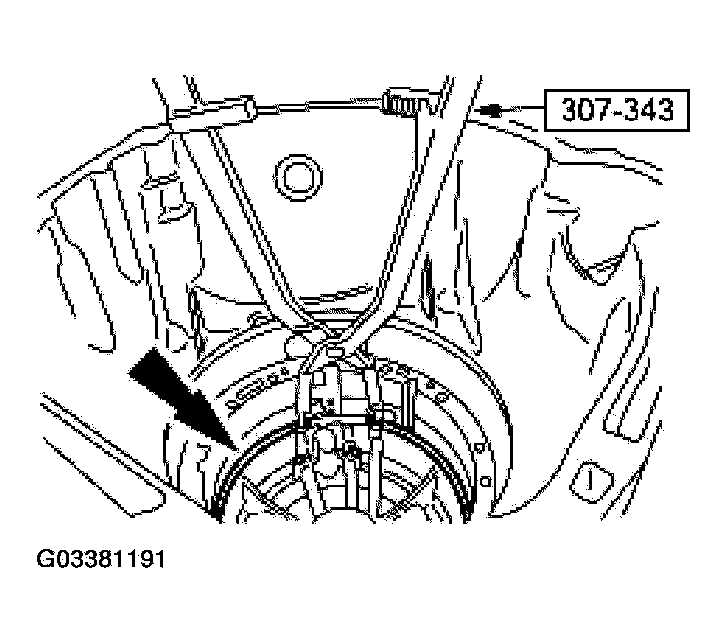

24. Using the special tool, remove the center support retaining ring.
    Fig 25: Removing Center Support Retaining Ring Using Special Tool

    Courtesy of FORD MOTOR CO.

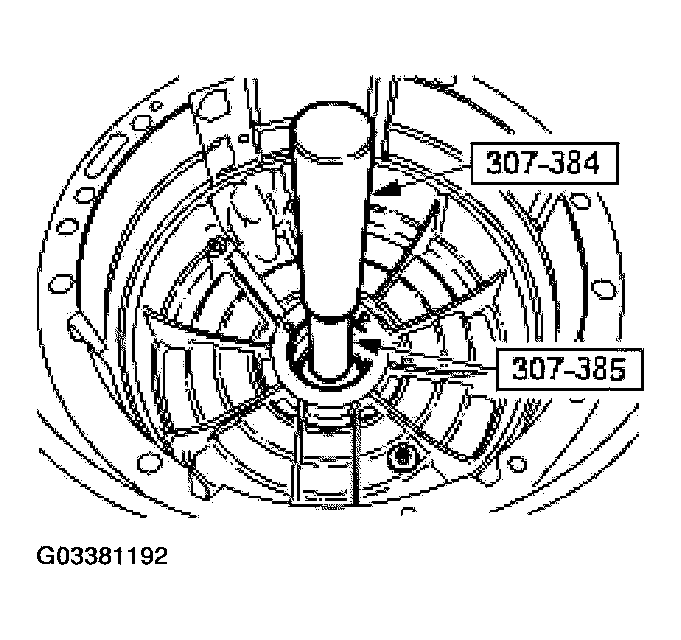

25. Install the special tools into the center support assembly.
    Fig 26: Installing Special Tools Into Center Support Assembly

    Courtesy of FORD MOTOR CO.
26. Using the special tools, remove the center support, direct clutch and forward clutch cylinder assembly.
    Fig 27: Removing Center Support, Direct Clutch And Forward Clutch Cylinder Assembly

    Courtesy of FORD MOTOR CO.

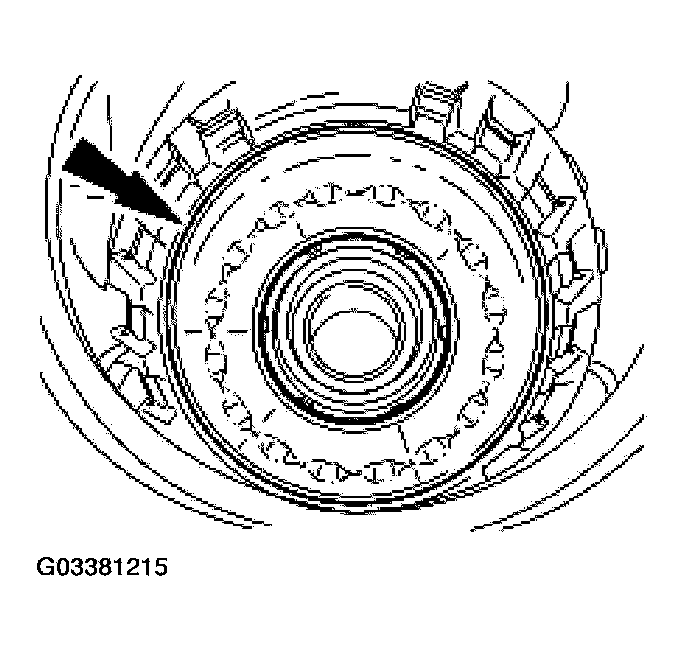

27. Remove the forward clutch hub No. 9 thrust washer.
    Fig 28: Removing Forward Clutch Hub No. 9 Thrust Washer

    Courtesy of FORD MOTOR CO.
28. Remove the forward ring gear and hub assembly.
    Fig 29: Removing Forward Ring Gear And Hub Assembly

    Courtesy of FORD MOTOR CO.
29. Remove the forward carrier race and the No. 11 bearing assembly.
    Fig 30: Removing Forward Carrier Race And No. 11 Bearing Assembly

    Courtesy of FORD MOTOR CO.
30. Remove the forward carrier.
    Fig 31: Removing Forward Carrier

    Courtesy of FORD MOTOR CO.
31. Remove the sun gear and the No. 12 thrust bearing.
    Fig 32: Removing Sun Gear And No. 12 Thrust Bearing

    Courtesy of FORD MOTOR CO.
32. Remove the low reverse sun gear and shell assembly.
    Fig 33: Removing Low Reverse Sun Gear And Shell Assembly

    Courtesy of FORD MOTOR CO.
33. Remove and discard the low reverse clutch retaining ring.
    Fig 34: Removing Low Reverse Clutch Retaining Ring

    Courtesy of FORD MOTOR CO.
34. Remove the low reverse one-way clutch, clutch pack, carrier and hub assembly.
    Fig 35: Removing Low Reverse One-Way Clutch, Clutch Pack, Carrier And Hub Assembly

    Courtesy of FORD MOTOR CO.
35. Remove the No. 15 thrust bearing and hub.
    Fig 36: Removing No. 15 Thrust Bearing And Hub

    Courtesy of FORD MOTOR CO.
36. Remove the output hub and ring gear.
37. Place the transmission manual lever in park to lock the output shaft from rotating.
38. Remove the low reverse No.16 thrust bearing.
    Fig 37: Removing Low Reverse No.16 Thrust Bearing

    Courtesy of FORD MOTOR CO.
39. If equipped, remove the output shaft flange.
    1. Remove and discard the bolt.
    2. Remove the output shaft flange.
       Fig 38: Removing Output Shaft Flange

       Courtesy of FORD MOTOR CO.
40. If equipped, use the special tool to remove and discard the output shaft nut.
    Fig 39: Removing Output Shaft Nut

    Courtesy of FORD MOTOR CO.
41. If equipped with a fixed flange, use the special tools to remove the output shaft seal.
    Fig 40: Removing Output Shaft Seal

    Courtesy of FORD MOTOR CO.
42. If equipped with a slip yoke, use the special tools to remove the output shaft seal.
    Fig 41: Removing Output Shaft Seal

    Courtesy of FORD MOTOR CO.
43. Remove the nine bolts and the extension housing.
    Fig 42: Removing Nine Bolts And Extension Housing

    Courtesy of FORD MOTOR CO.
44. Inspect the extension housing ball bearing. If any damage is evident, install a new extension housing. Check the output shaft journal.
    Fig 43: Installing Extension Housing and Checking Output Shaft Journal

    Courtesy of FORD MOTOR CO.
45. Remove and discard the extension housing gasket.
    Fig 44: Removing Extension Housing Gasket

    Courtesy of FORD MOTOR CO.

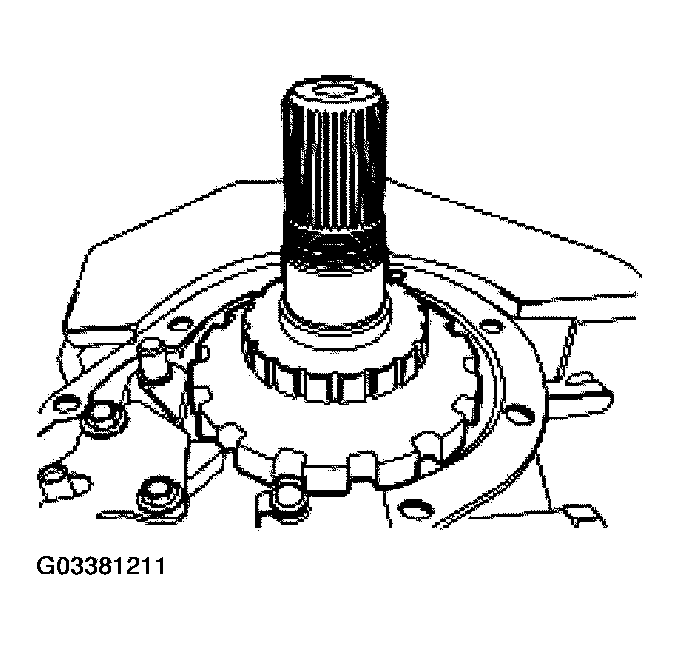

46. Remove the output shaft.
    Fig 45: Removing Output Shaft

    Courtesy of FORD MOTOR CO.
47. For vehicles equipped with a fixed yoke, remove the No. 17 park gear thrust washer. For vehicles equipped with a slip yoke, remove the No. 17 park gear thrust bearing
    Fig 46: Removing No. 17 Park Gear Thrust Washer

    Courtesy of FORD MOTOR CO.
CAUTION: Do not fully compress the return spring or damage to the spring may occur.
Fig 47: Removing Reverse Clutch Drum Retaining Ring Using Special Tool
Courtesy of FORD MOTOR CO.
48. Using the special tool, remove the reverse clutch drum retaining ring.
49. Remove the return spring.
    Fig 48: Removing Return Spring

    Courtesy of FORD MOTOR CO.

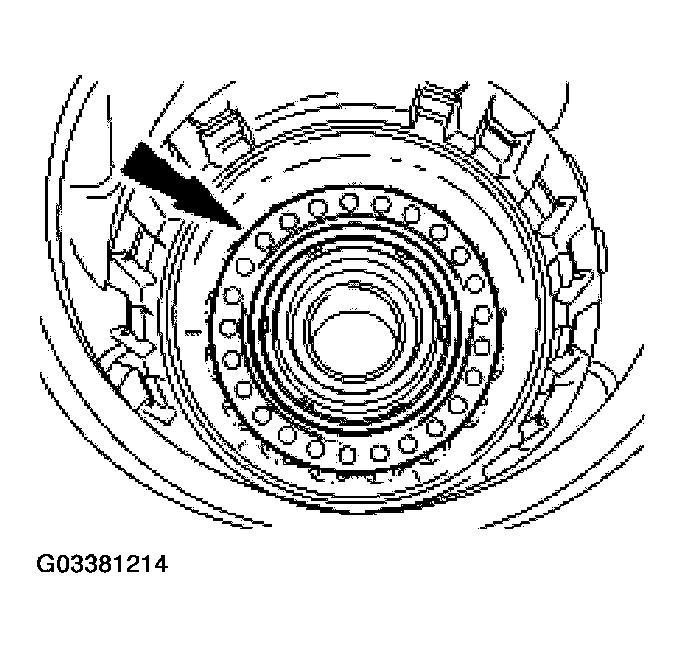

50. While applying air to the case, remove and discard the reverse piston.
    Fig 49: Removing Reverse Piston

    Courtesy of FORD MOTOR CO.
51. Remove the parking rod guide plate bolts and plate.
    Fig 50: Removing Parking Rod Guide Plate Bolts And Plate

    Courtesy of FORD MOTOR CO.
52. Remove the plastic orifice lube plug from the rear of the case and discard.
    Fig 51: Removing Plastic Orifice Lube Plug From Rear Of Case

    Courtesy of FORD MOTOR CO.
53. Remove the parking pawl.
    1. Remove the parking pawl return spring.
    2. Remove the parking pawl.
    3. Remove the parking pawl shaft.

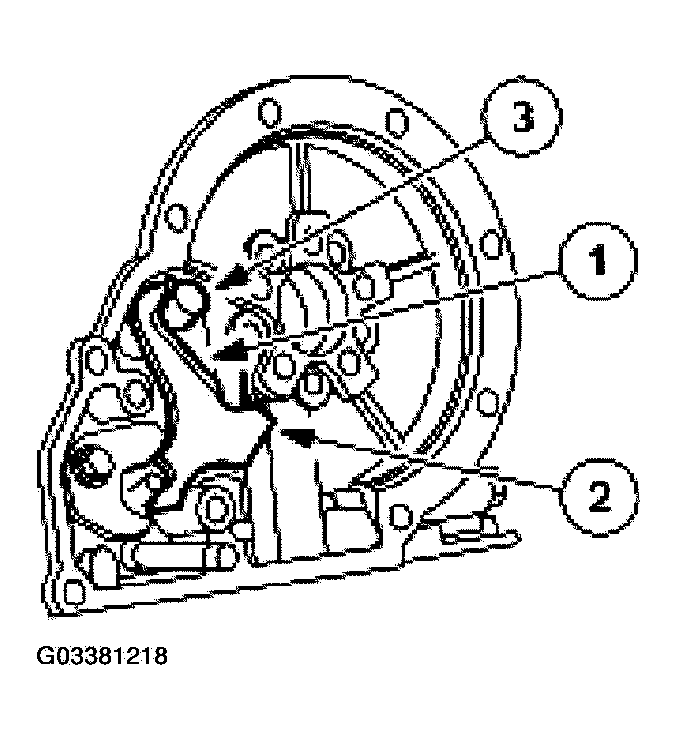

       Fig 52: Removing Parking Pawl Shaft, Pawl And Return Spring

       Courtesy of FORD MOTOR CO.
CAUTION: The Torx-head screw has a threadlocking compound and should be removed only if a new case is being installed. If the bolt is removed, it must be discarded and a new bolt installed.
Fig 53: Removing Parking Pawl Abutment
Courtesy of FORD MOTOR CO.
54. Remove the parking pawl abutment.
NOTE: The pin should be driven down into the case.

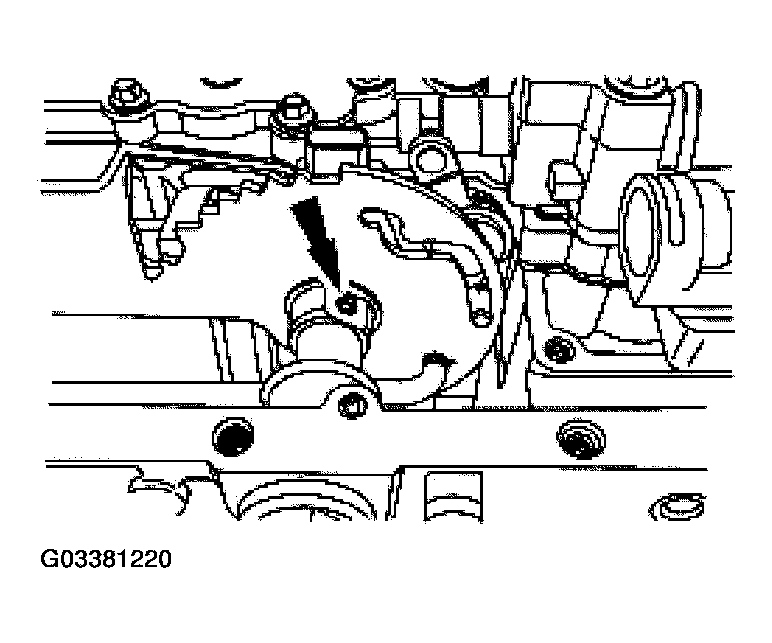

Fig 54: Removing Manual Lever Shaft Retaining Pin
Courtesy of FORD MOTOR CO.
55. Using a suitable tool, remove and discard the manual lever shaft retaining pin.

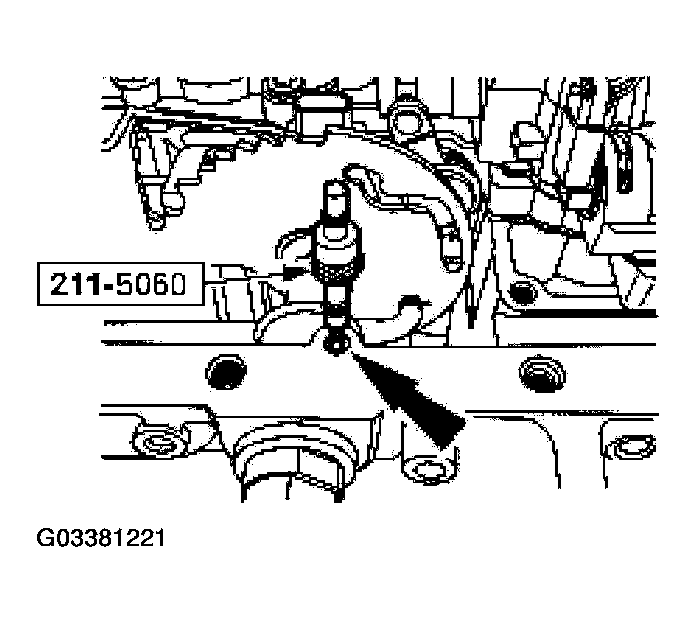

56. Using the special tool, remove the manual lever shaft retaining pin.
    Fig 55: Removing Manual Lever Shaft Retaining Pin

    Courtesy of FORD MOTOR CO.
57. Remove the manual control lever shaft.
    Fig 56: Removing Manual Control Lever Shaft

    Courtesy of FORD MOTOR CO.

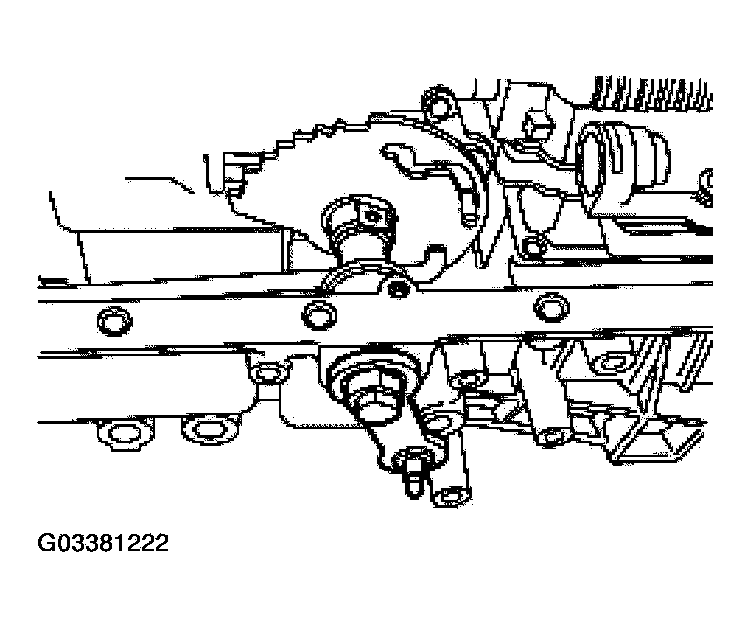

58. Remove the transmission range sensor, manual control lever and park rod as an assembly.
    Fig 57: Removing Transmission Range Sensor, Manual Control Lever And Park Rod

    Courtesy of FORD MOTOR CO.
59. Using the special tool, remove and discard the manual control lever seal.
    Fig 58: Removing Manual Control Lever Seal Using Special Tool

    Courtesy of FORD MOTOR CO.
NOTE: The short fluid inlet tube should be removed only if it is loose or damaged.

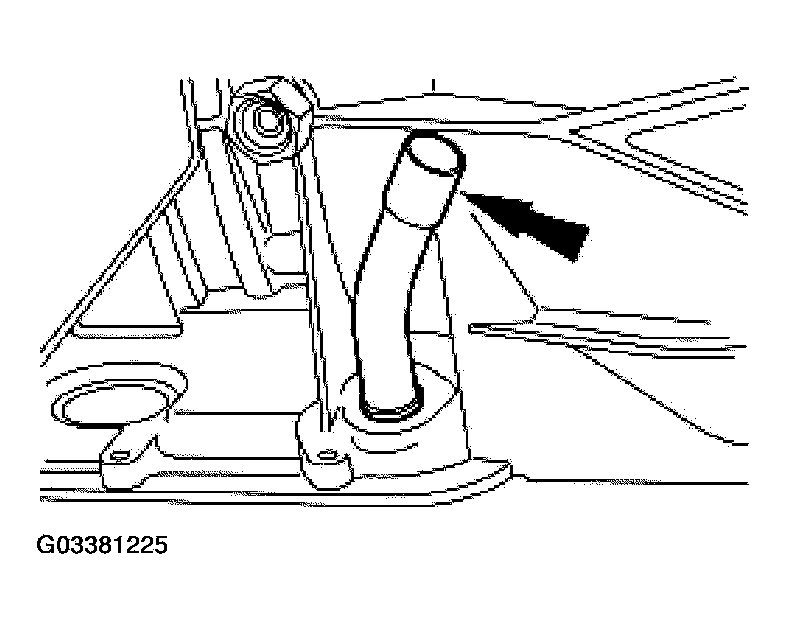

Fig 59: Removing Short Fluid Inlet Tube
Courtesy of FORD MOTOR CO.
60. If required, remove the short fluid inlet tube.
NOTE: The top portion seal groove will work the best when removing the seal pack.
Fig 60: Removing Seal Retainer Using Special Tool
Courtesy of FORD MOTOR CO.
61. Inspect the rear case Teflon seal retainer for damage. If damage is evident, use the special tool to remove the seal retainer.
62. Inspect the case assembly for cracks and stripped threads. Inspect the gasket surfaces and mating surfaces for burrs. Check the case vent assembly and all fluid passages for obstructions.
63. Inspect the rear case snubber bushing. If damage is found, install a new transmission case.
64. Inspect the case assembly bushing for scores. Check all parking linkage parts for wear or damage.
65. Inspect the reverse clutch case vent for blockage. The vent is located in the case at the 12 o'clock position. If evidence of blockage is found, use low air pressure to clear out the blockage by applying air to the extension side of the vent.
