Solenoid Body: Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install a new gasket and the backing plate.

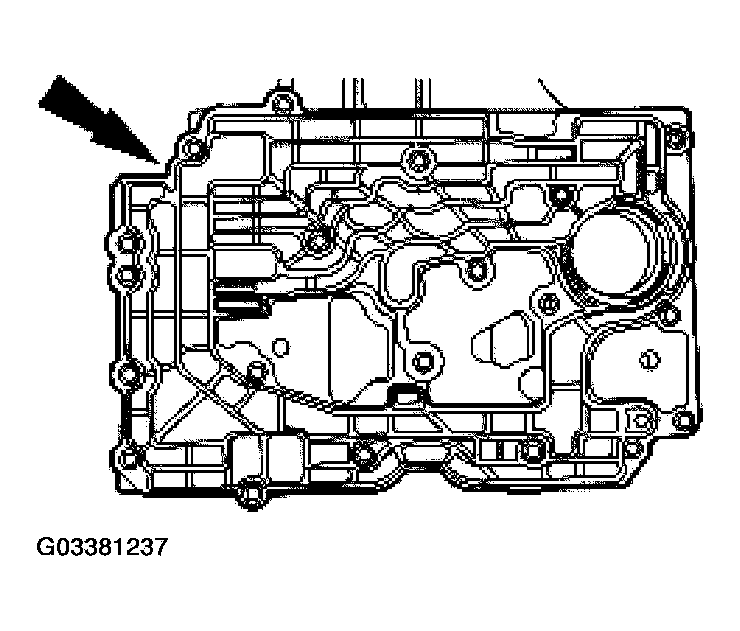

Fig 1: Installing Gasket And Backing Plate
Courtesy of FORD MOTOR CO.
Install a new filter screen gasket.

Fig 2: Installing Filter Screen Gasket
Courtesy of FORD MOTOR CO.

NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

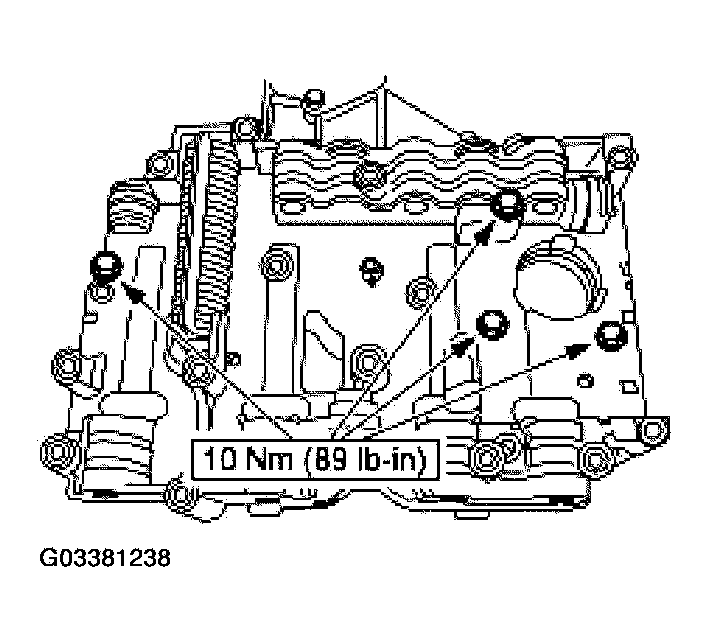

Fig 3: Assembling Top And Bottom Halves Of Solenoid Body

Courtesy of FORD MOTOR CO.

Assemble the top and bottom halves of the solenoid body.
Install the TFT sensor.

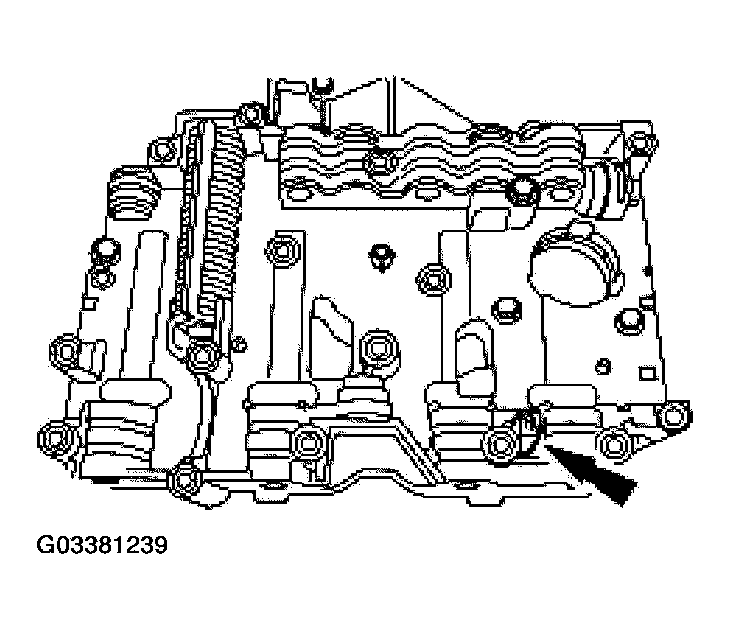

Fig 4: Installing TFT Sensor
Courtesy of FORD MOTOR CO.
Install the shift solenoids with the E-clips.

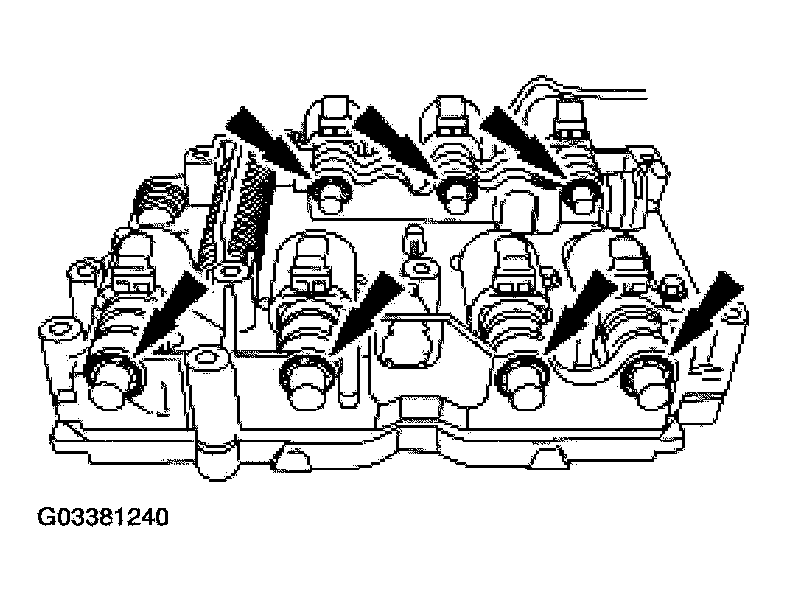

Fig 5: Installing Shift Solenoids With E-Clips
Courtesy of FORD MOTOR CO.
Install a new O-ring on the solenoid body electrical connector in the uppermost groove.

Fig 6: Installing New O-Ring On Solenoid Body Electrical Connector In Uppermost Groove
Courtesy of FORD MOTOR CO.
Install the solenoid body harness and connect the connectors.

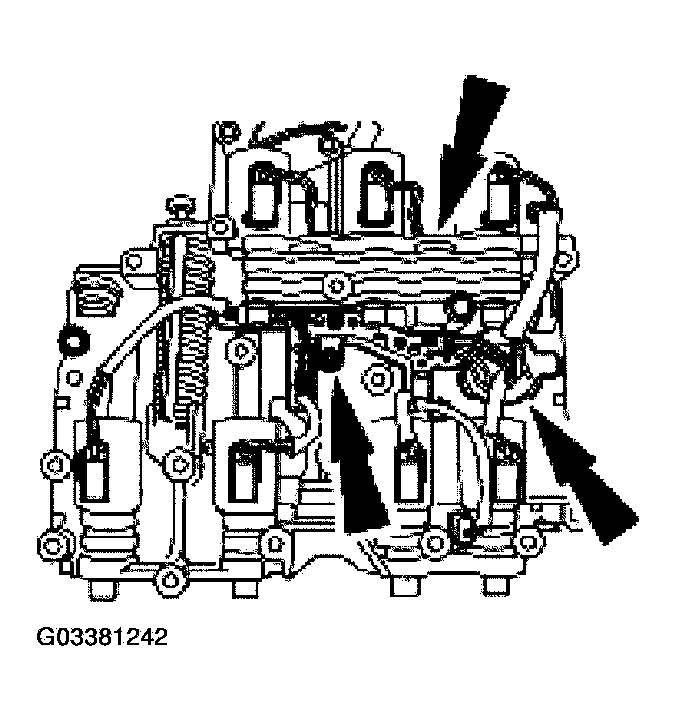

Fig 7: Installing Solenoid Body Harness And Connecting Connectors
Courtesy of FORD MOTOR CO.
Install the manual valve.

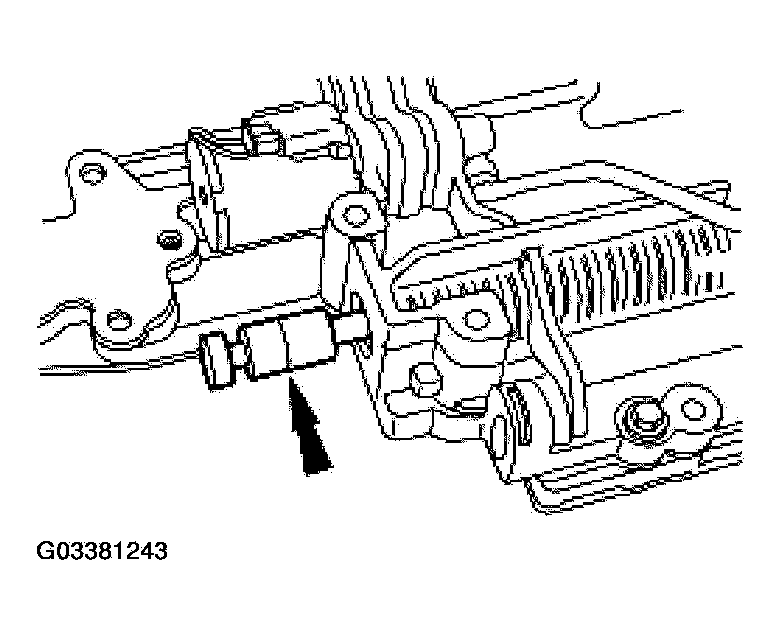

Fig 8: Installing Manual Valve
Courtesy of FORD MOTOR CO.
