Input Shell Assembly: Check

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean and inspect the forward/reverse sun gear and input shell assembly. Check the sun gear teeth, lug teeth and thrust surface for damage. If any evidence of damage is found, a new input shell assembly must be installed.

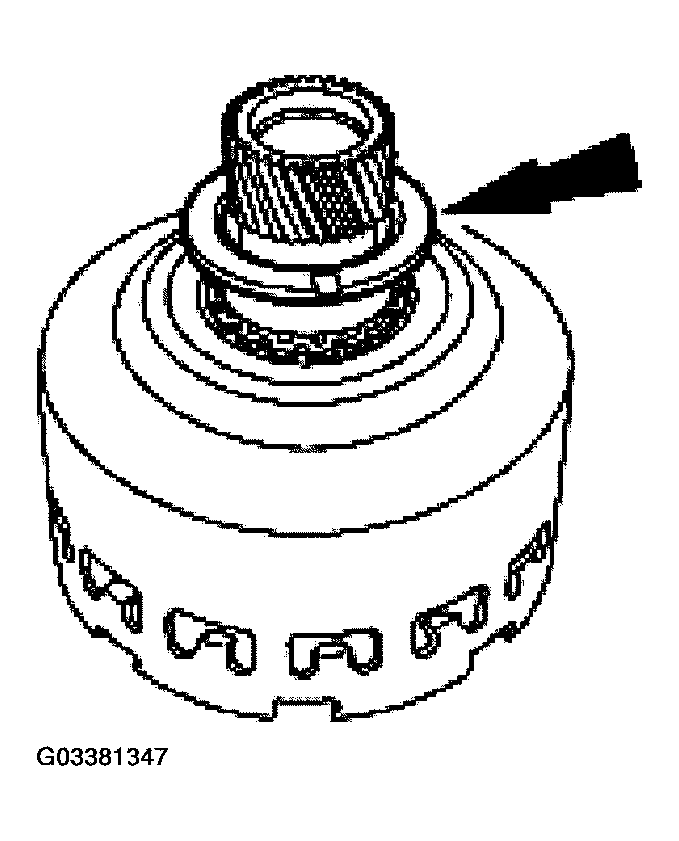

    Fig 1: Inspecting Forward/Reverse Sun Gear And Input Shell Assembly
    G03381347Courtesy of FORD MOTOR CO.
  2. Inspect the front bushing for damage. If any damage is found, a new input shell assembly must be installed.

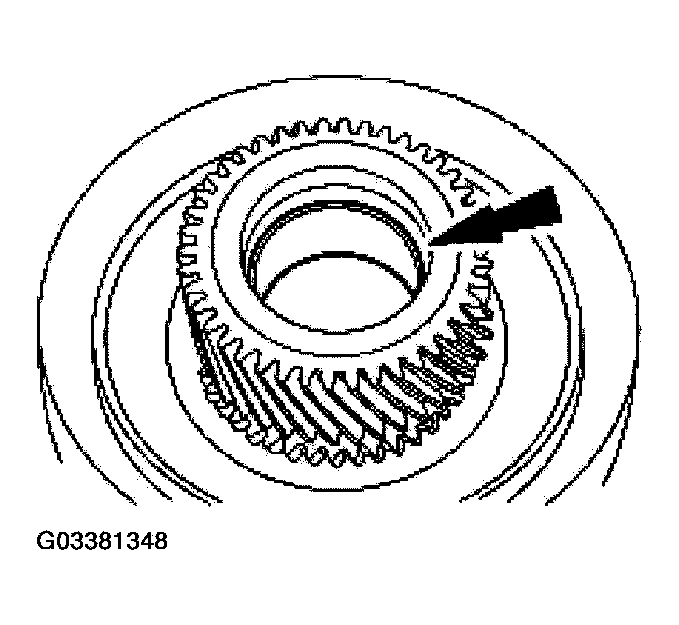

    Fig 2: Inspecting Front Bushing For Damage
    G03381348Courtesy of FORD MOTOR CO.
