Forward Hub & Ring Gear: Disassembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the No. 10 forward clutch hub thrust washer.

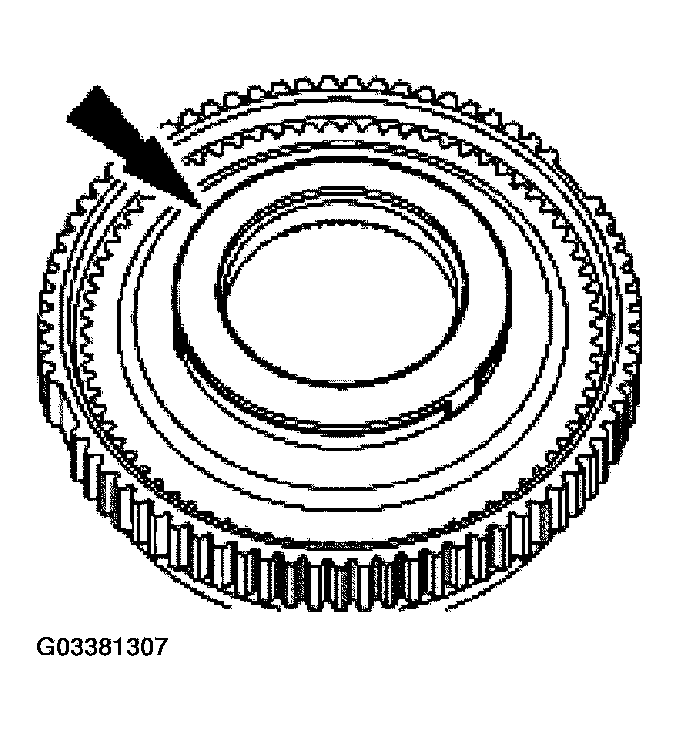

    Fig 1: Removing No. 10 Forward Clutch Hub Thrust Washer
    G03381307Courtesy of FORD MOTOR CO.
  2. Remove the forward hub retaining ring.

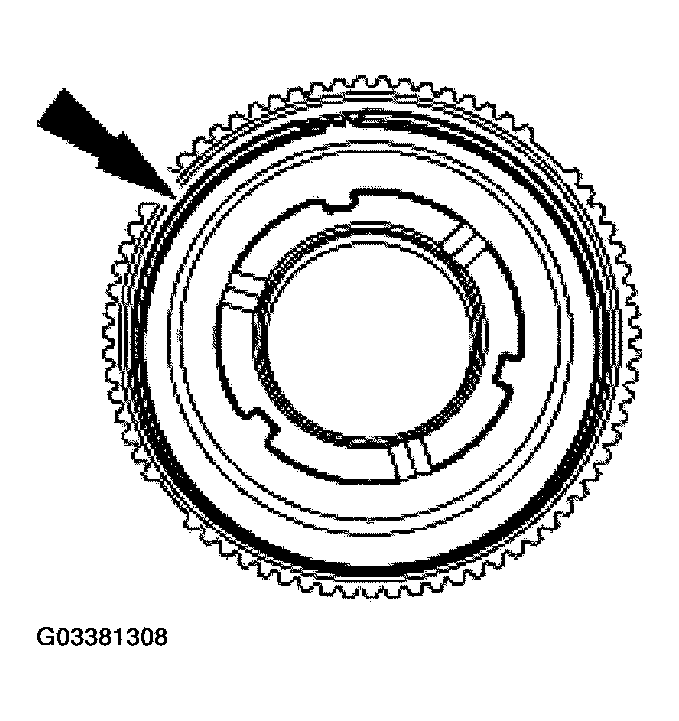

    Fig 2: Removing Forward Hub Retaining Ring
    G03381308Courtesy of FORD MOTOR CO.
  3. Remove the forward hub.

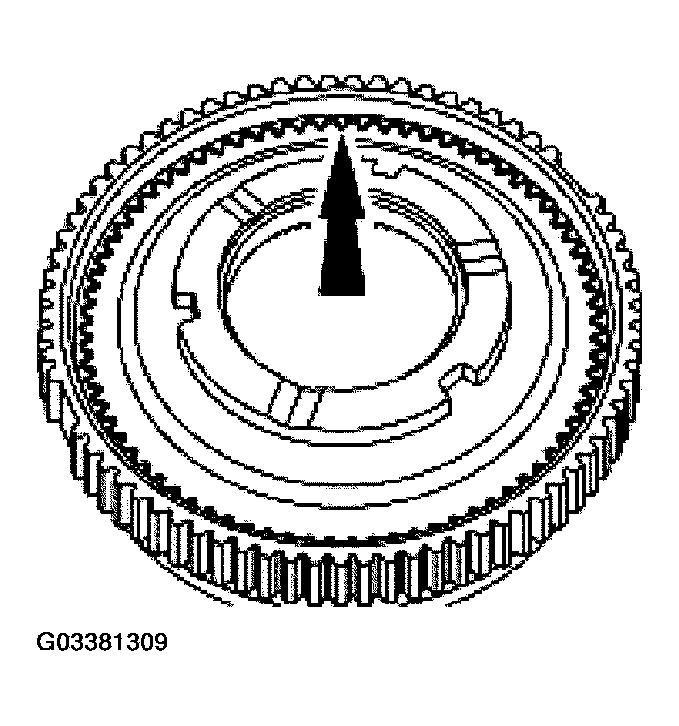

    Fig 3: Removing Forward Hub
    G03381309Courtesy of FORD MOTOR CO.
