Forward GEARTRAIN Assembly - Disassembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

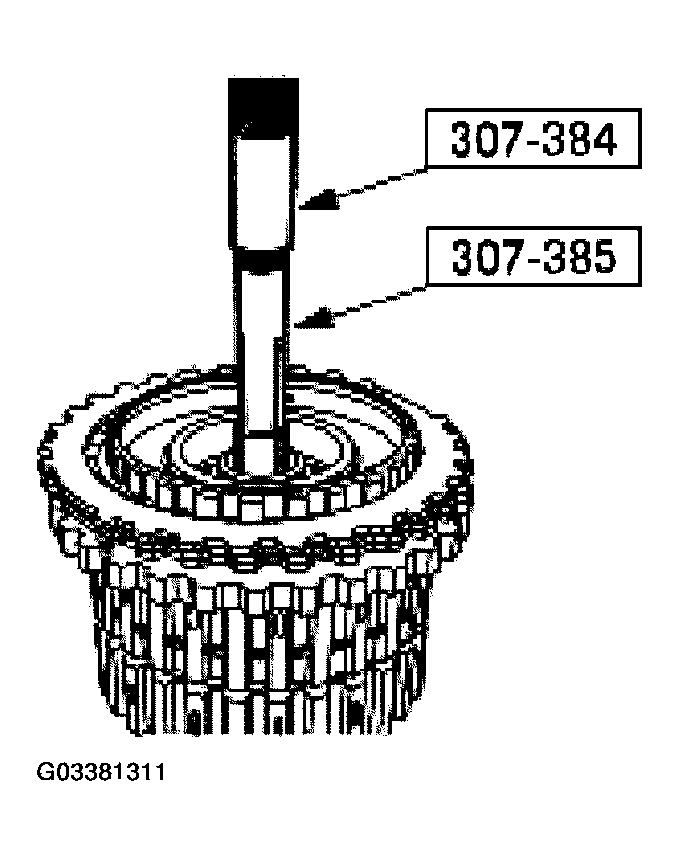

  1. Remove the special tools.
    Fig 1: Removing Special Tools
    G03381311Courtesy of FORD MOTOR CO.

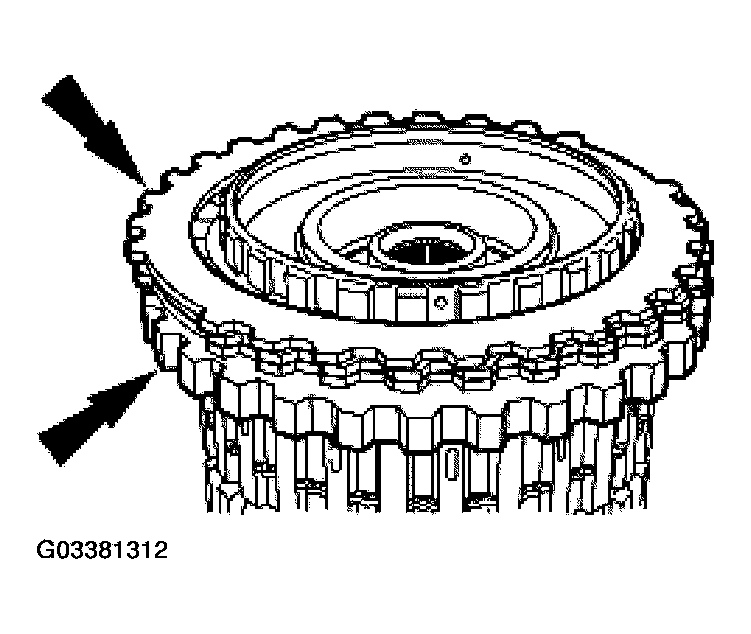

  2. Remove the intermediate clutch plates and pressure plate.
    Fig 2: Removing Intermediate Clutch Plates And Pressure Plate
    G03381312Courtesy of FORD MOTOR CO.

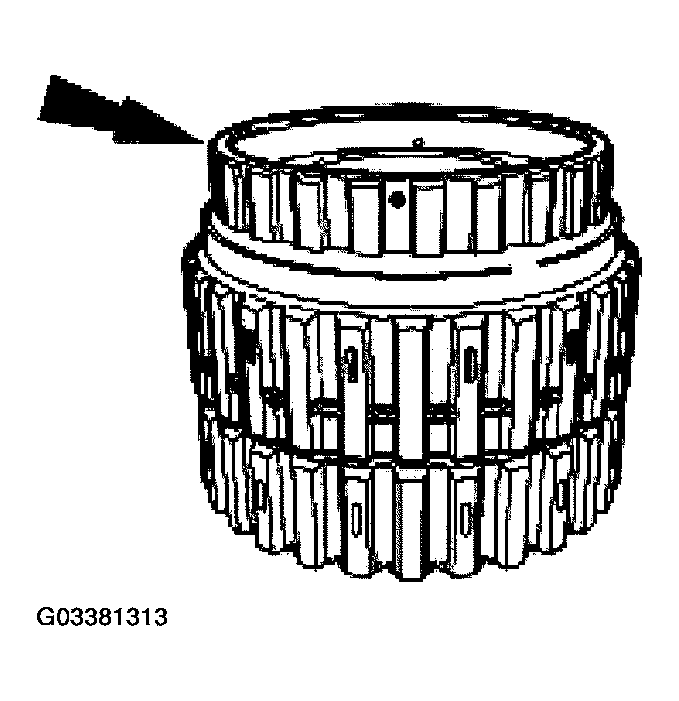

  3. Remove the direct clutch assembly.
Fig 3: Removing Direct Clutch Assembly
G03381313Courtesy of FORD MOTOR CO.
