Forward GEARTRAIN Assembly - Assembly: Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

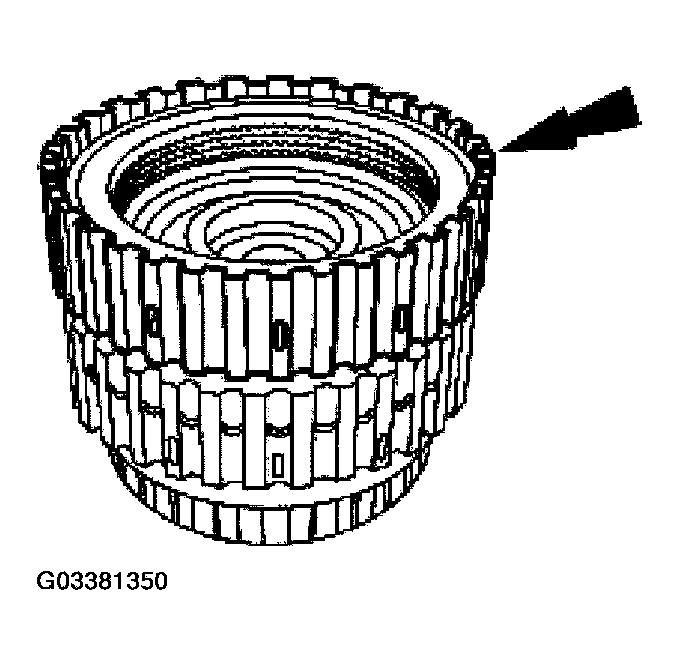

  1. Install the forward clutch assembly into the direct clutch assembly.
    Fig 1: Installing Forward Clutch Assembly Into Direct Clutch Assembly
    G03381350Courtesy of FORD MOTOR CO.

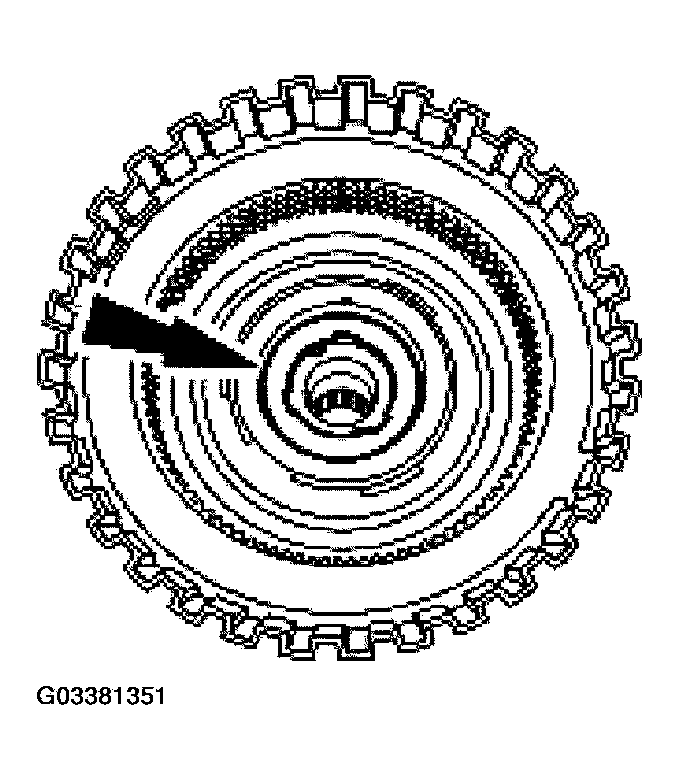

  2. Install the No. 9 forward clutch bearing.
    Fig 2: Installing No. 9 Forward Clutch Bearing
    G03381351Courtesy of FORD MOTOR CO.

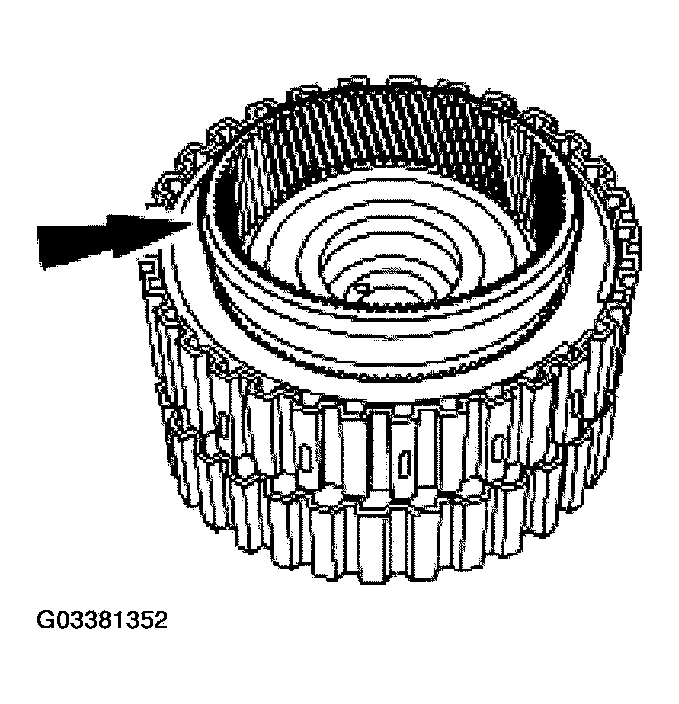

  3. Install the forward hub and ring gear assembly.
    4. Fig 3: Installing Forward Hub And Ring Gear Assembly
    G03381352Courtesy of FORD MOTOR CO.

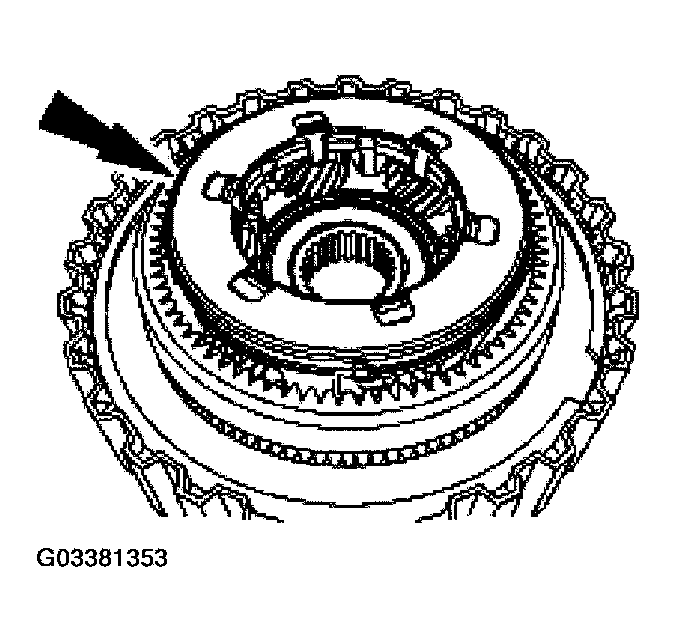

  4. Install the planet carrier and bearing assembly.
    Fig 4: Installing Planet Carrier And Bearing Assembly
    G03381353Courtesy of FORD MOTOR CO.

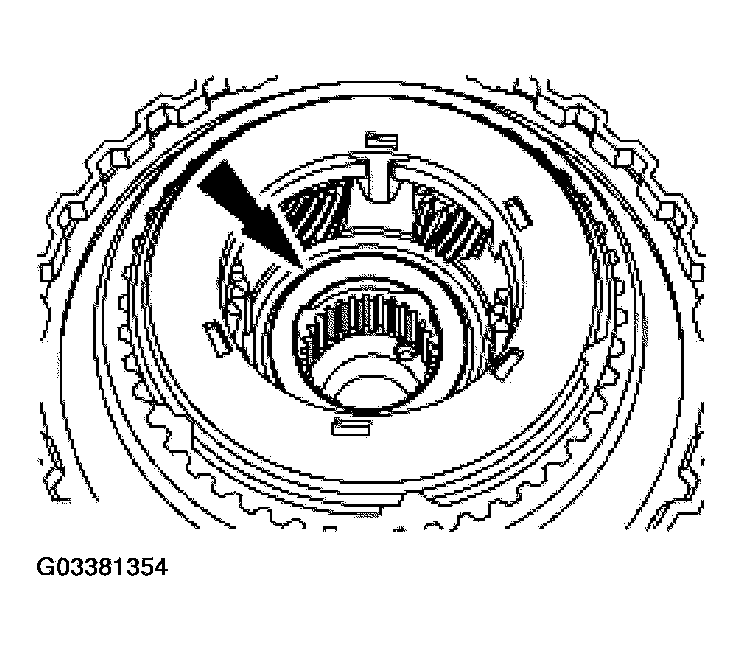

  5. Install the No. 12 thrust bearing onto the forward carrier assembly.
    Fig 5: Installing No. 12 Thrust Bearing Onto Forward Carrier Assembly
    G03381354Courtesy of FORD MOTOR CO.

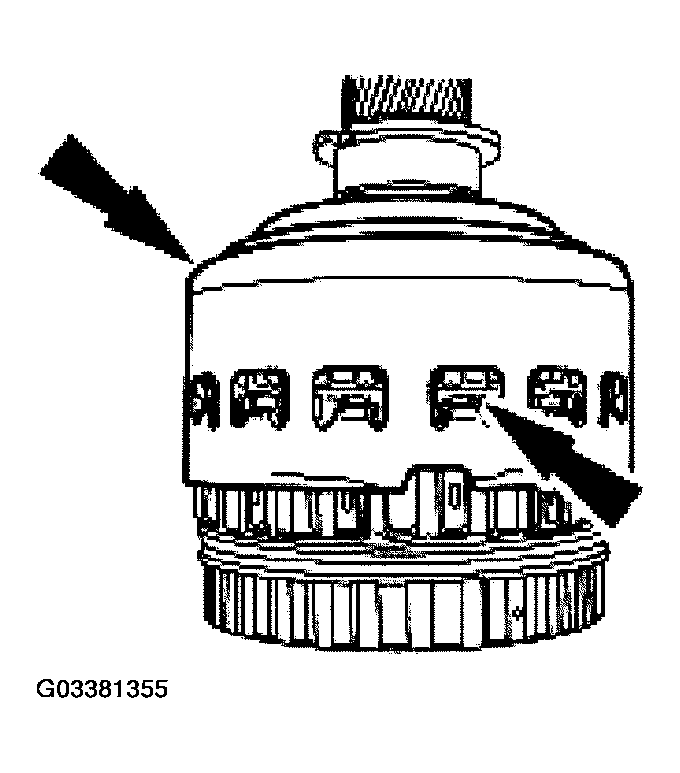

  6. Install the input shell assembly.
    • Make sure the tab is engaged in the forward clutch assembly.
      Fig 6: Installing Input Shell Assembly
      G03381355Courtesy of FORD MOTOR CO.
  7. Install the special tools. Position aside to use during assembly.
Fig 7: Installing Special Tools And Positioning Aside To Use During Assembly
G03381356Courtesy of FORD MOTOR CO.
