Center Support: Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the disassembly procedure in reverse order.
    • Lightly lubricate the thrust washer with petroleum jelly to hold it in place during assembly.
    • Install new seals.
  2. After the center support is completely assembled, apply air to the port and verify the function of the piston.

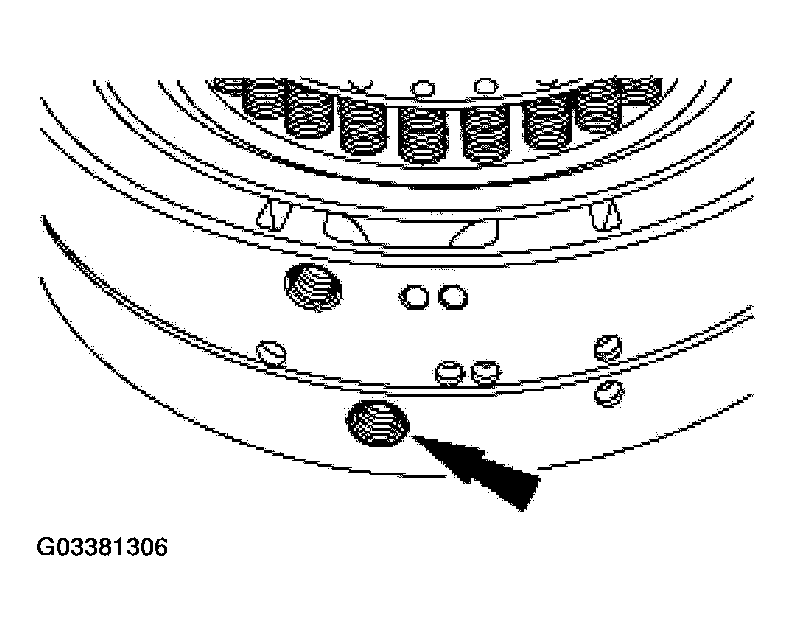

    Fig 1: Applying Air To Port And Verifying Function Of Piston
    G03381306Courtesy of FORD MOTOR CO.
