Transmission, Disassembled Views

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

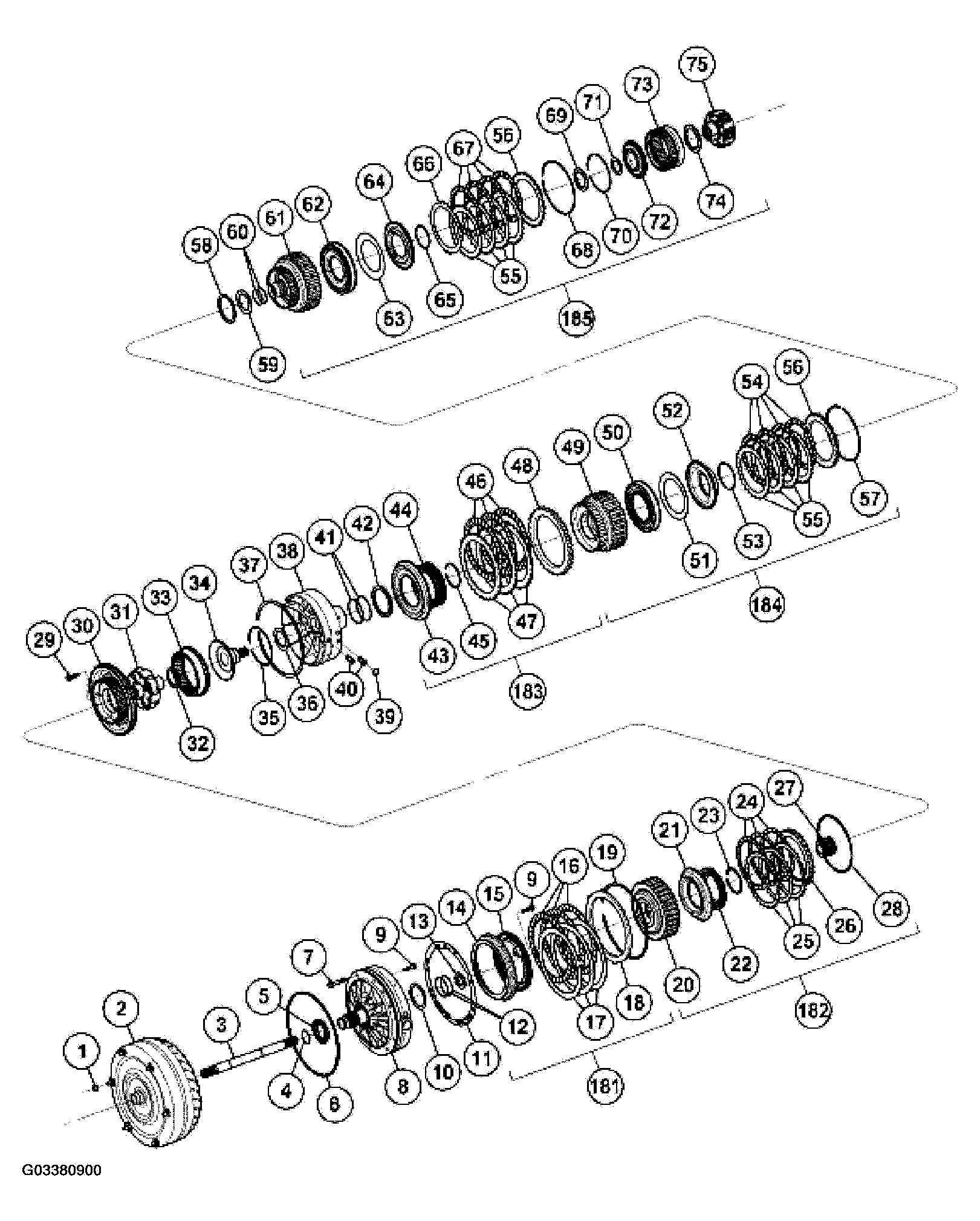

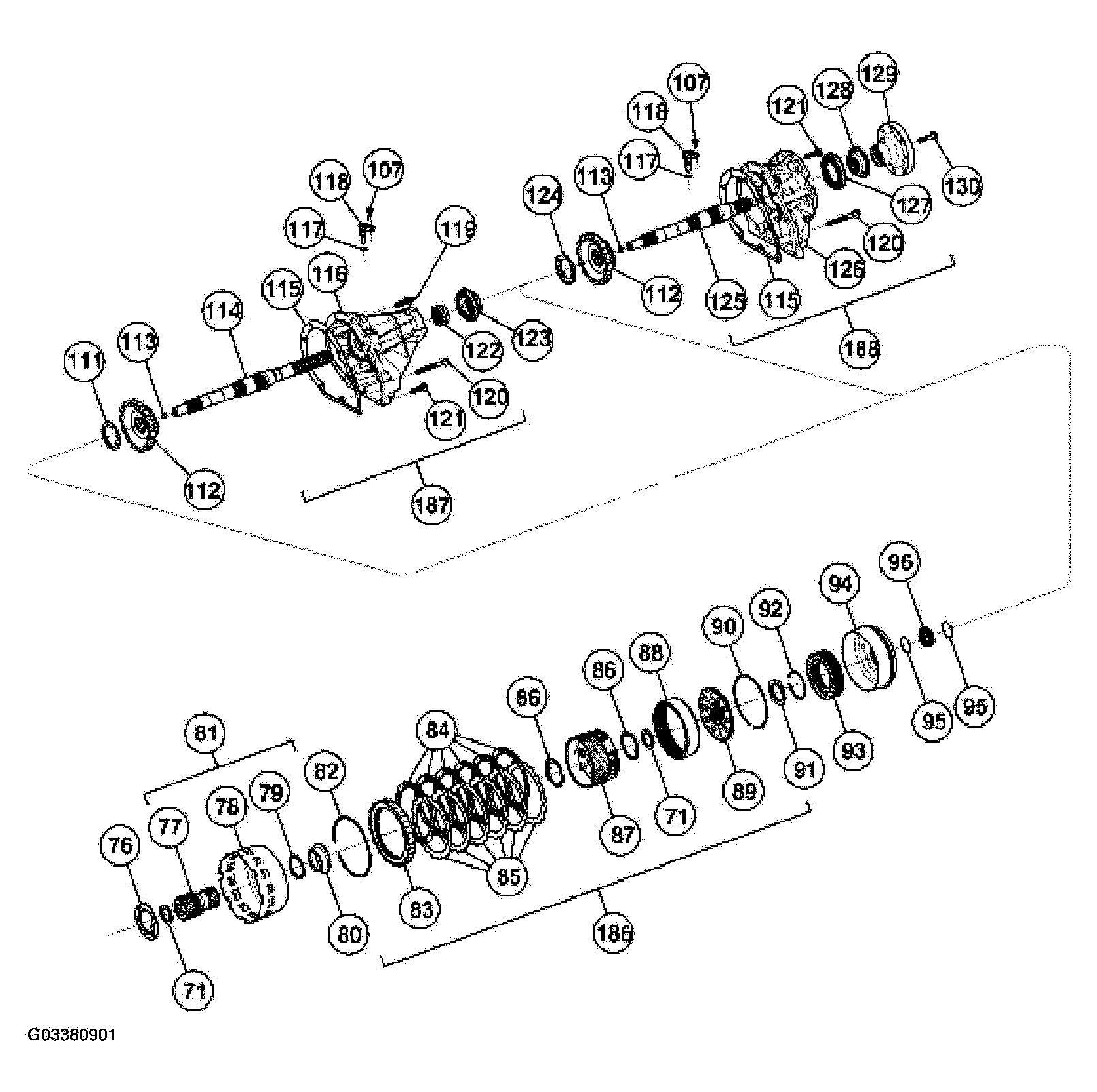

Fig 1: Identifying Transmission, Disassembled View (1 Of 2)

Courtesy of FORD MOTOR CO.

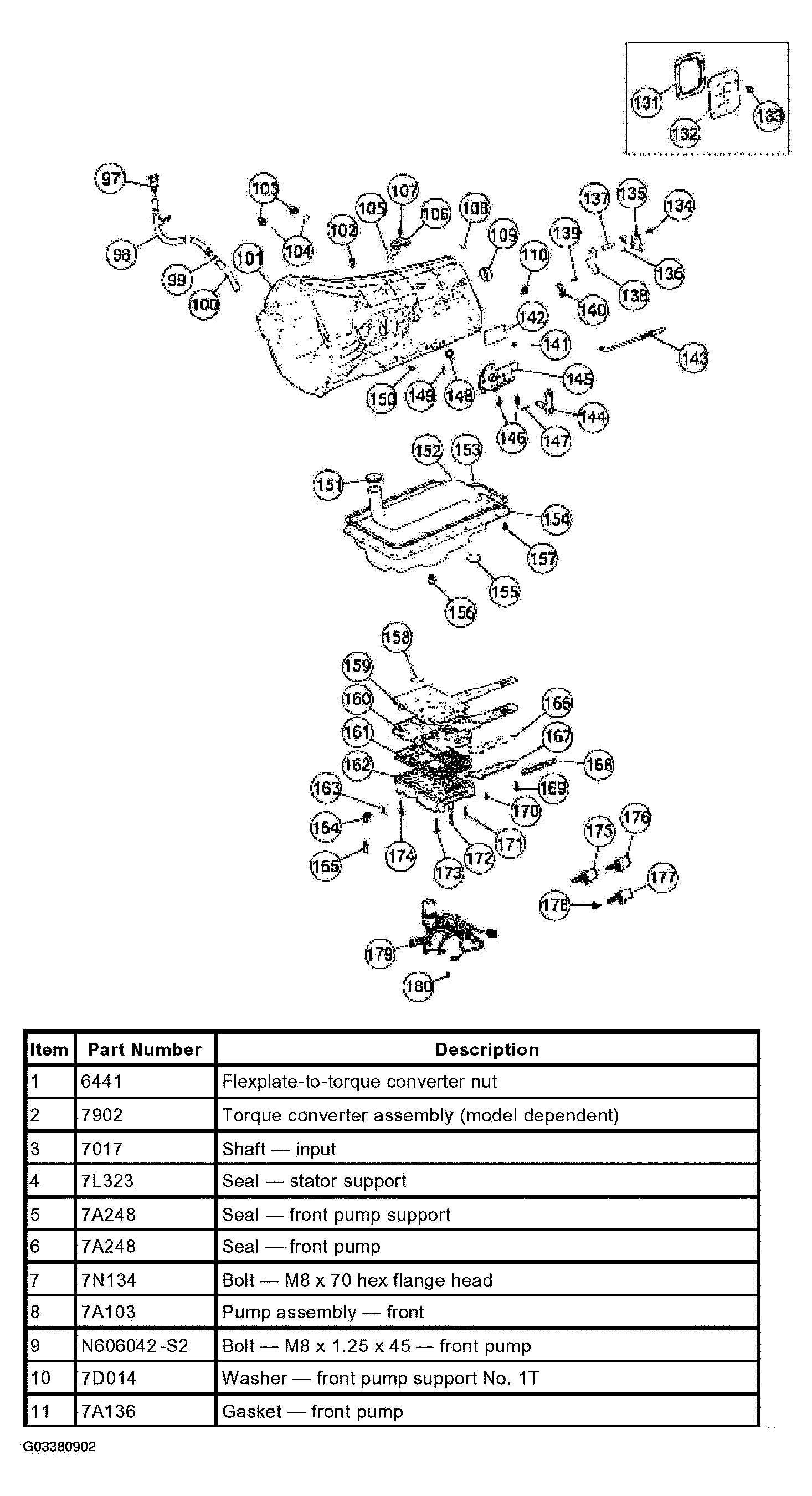

Fig 2: Identifying Transmission, Disassembled View (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Transmission, Item Description (Items 1-11)

Courtesy of FORD MOTOR CO.

Fig 4: Transmission, Item Description (Items 12-53)

Courtesy of FORD MOTOR CO.

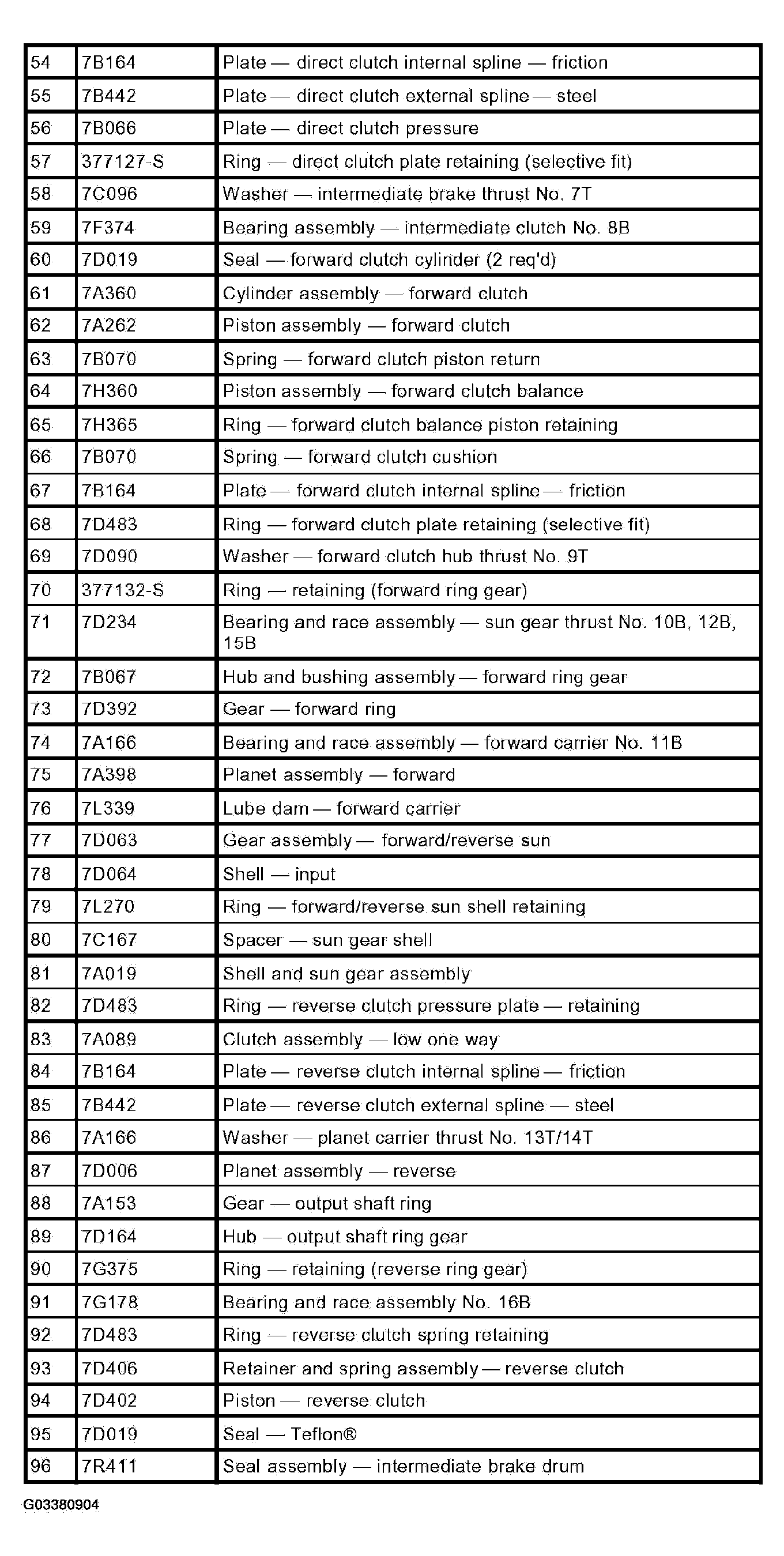

Fig 5: Transmission, Item Description (Items 54-96)

Courtesy of FORD MOTOR CO.

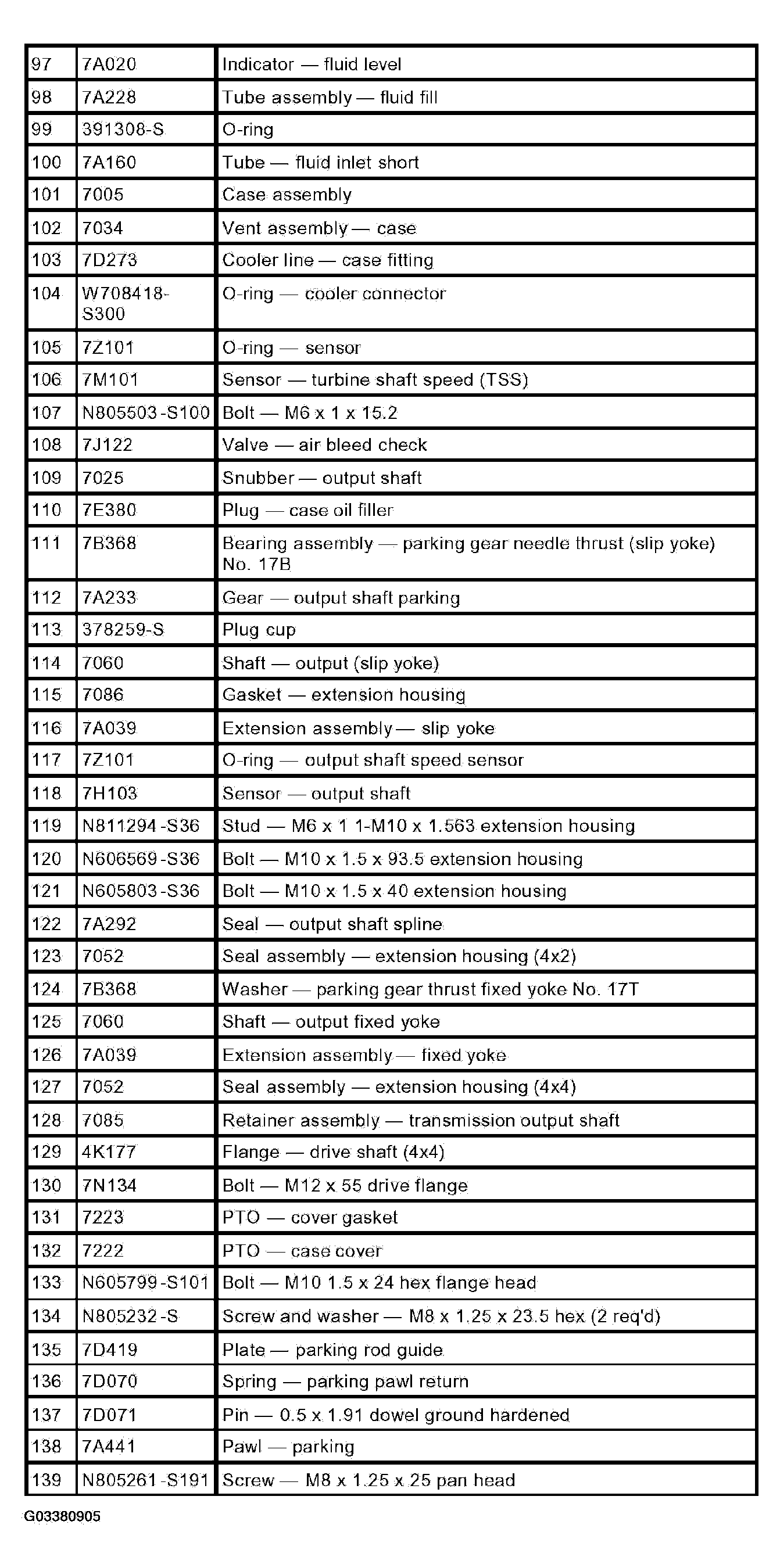

Fig 6: Transmission, Item Description (Items 97-139)

Courtesy of FORD MOTOR CO.

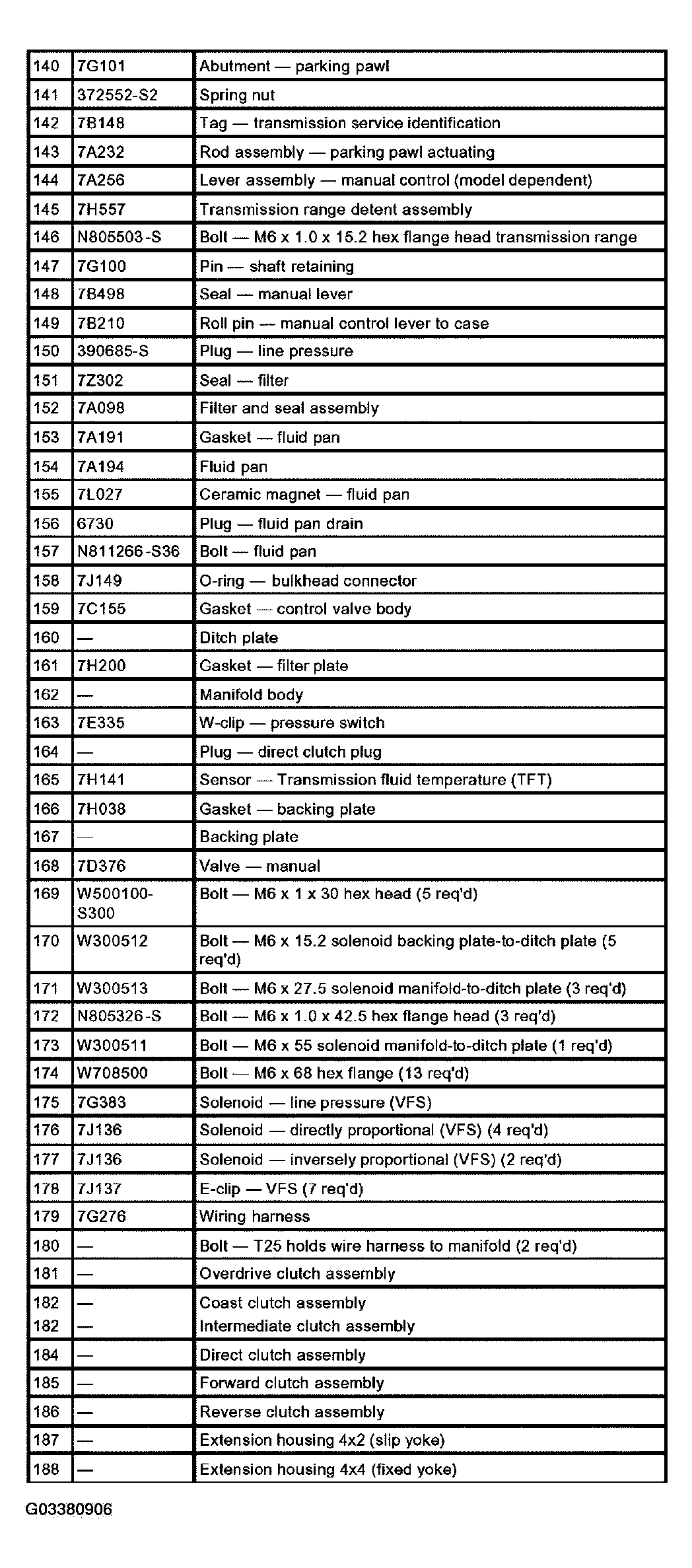

Fig 7: Transmission, Item Description (Items 140-188)

Courtesy of FORD MOTOR CO.
