Oil Pump: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
  2. Remove the bolts and the gerotor cover. Remove and discard the O-ring seal.

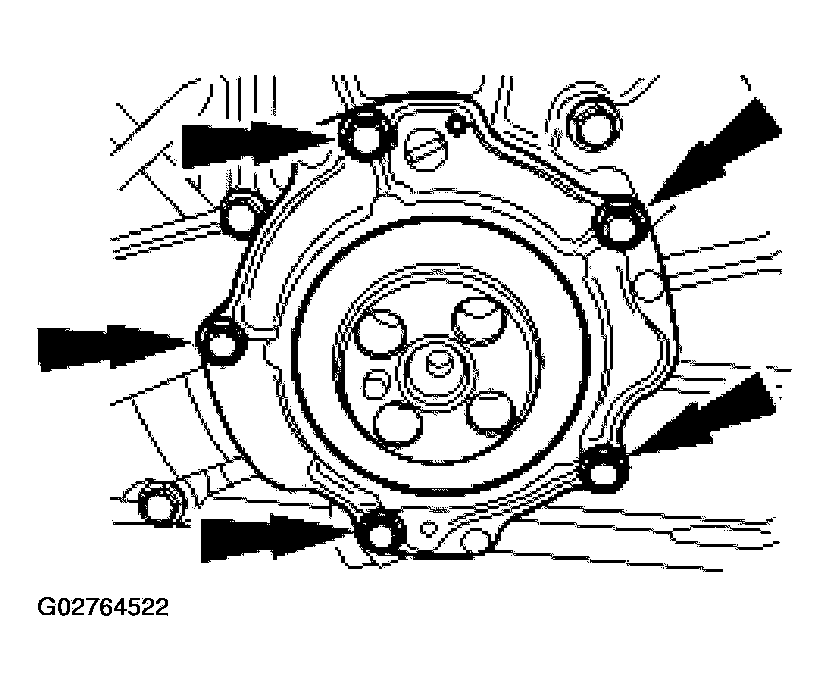

    Fig 1: Removing Bolts And Gerotor Cover
    G02764522Courtesy of FORD MOTOR CO.
    3. NOTE: Mark the front of the inner and outer gerotor for correct reassembly.

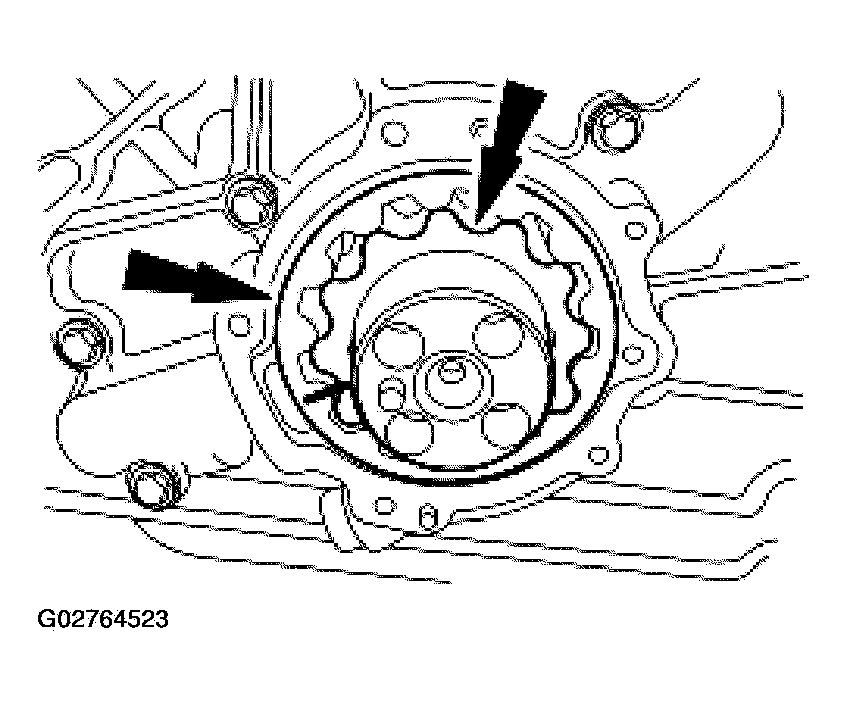

    Fig 2: Removing Inner And Outer Gerotors
    G02764523Courtesy of FORD MOTOR CO.
  3. Remove the inner and outer gerotors.
  4. Inspect the oil pump components. Install new components, as necessary.
    • Inspect the oil pump for excessive metal particles.
    • Inspect the oil pump for gouging cracks or deep scratches.
    • Inspect the oil pump inner and outer gear rotors for damage or excessive wear.
