Oil Pan: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable, For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  4. Remove the cooling fan stator. For additional information, refer to ENGINE COOLING .
  5. Remove the A/C compressor. For additional information, refer to HEATING & VENTILATION .
  6. Remove the power steering pump upper mounting bolt.
    Fig 1: Removing Power Steering Pump Upper Mounting Bolt
    G02764495Courtesy of FORD MOTOR CO.
  7. Remove the LH fan stator stand-off.

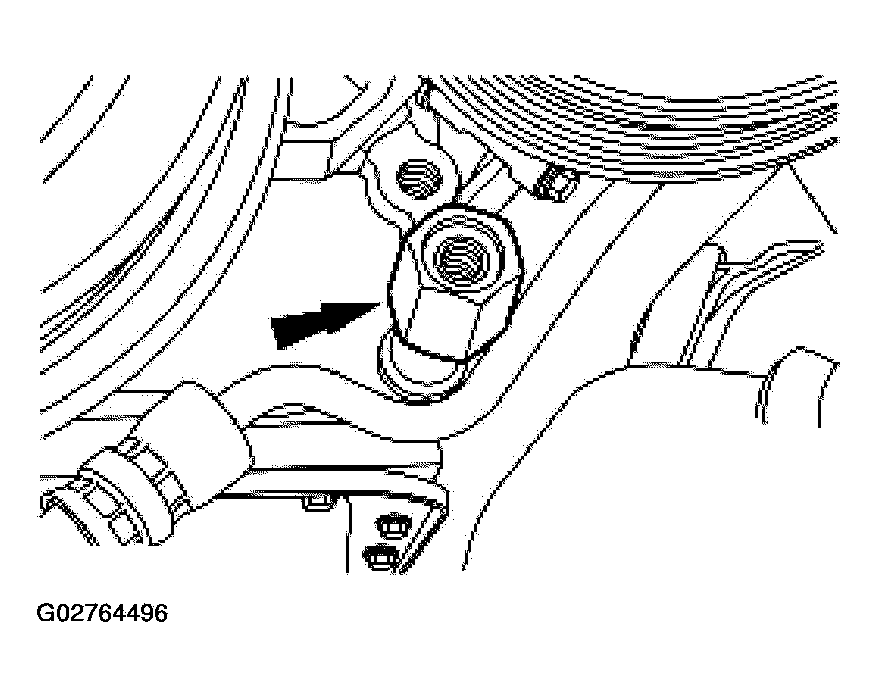

    Fig 2: Removing LH Fan Stator Stand-Off
    G02764496Courtesy of FORD MOTOR CO.
    8. NOTE: The front bolt will remain in the power steering pump.

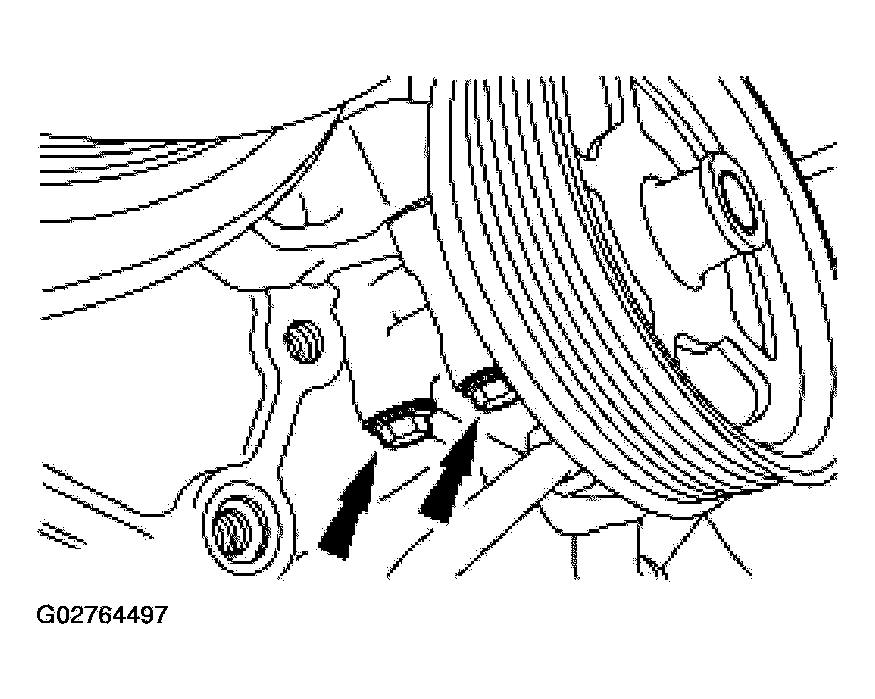

    Fig 3: Removing Bolts And Positioning Power Steering Pump Aside
    G02764497Courtesy of FORD MOTOR CO.
  8. Remove the bolts and position the power steering pump aside.
  9. Remove the oil pan drain plug.
    Fig 4: Removing Oil Pan Drain Plug
    G02764498Courtesy of FORD MOTOR CO.
  10. Loosen the exhaust pipe retaining nuts.

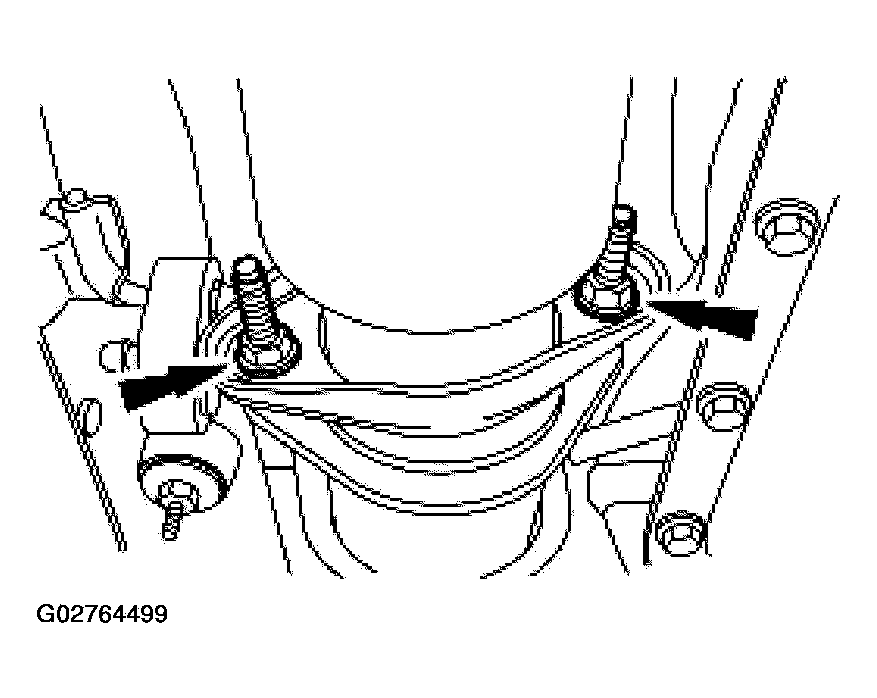

    Fig 5: Loosening Exhaust Pipe Retaining Nuts
    G02764499Courtesy of FORD MOTOR CO.
    11. NOTE: Left side shown, right side similar.

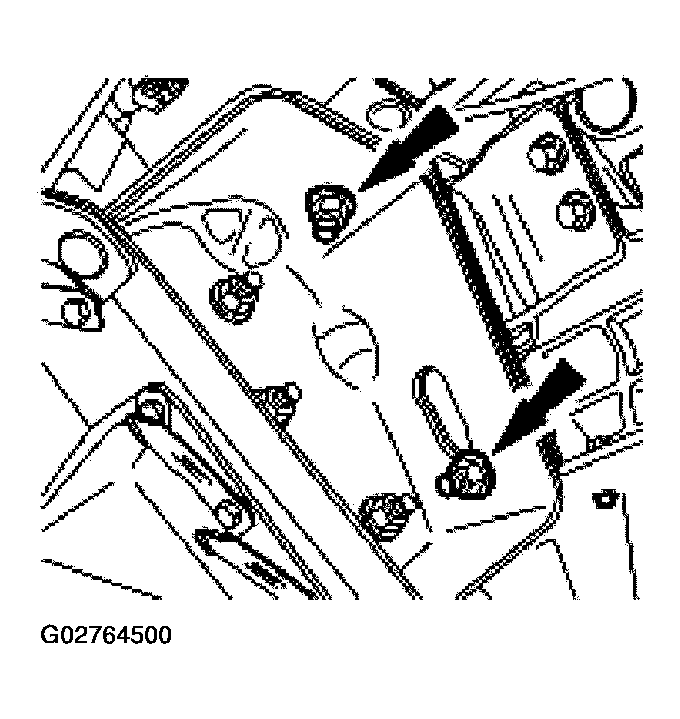

    Fig 6: Removing Motor Mount Retaining Nuts
    G02764500Courtesy of FORD MOTOR CO.
  11. Remove the motor mount retaining nuts.
  12. Remove the RH fan stator stand-off. Remove the bolt and position the cable aside.

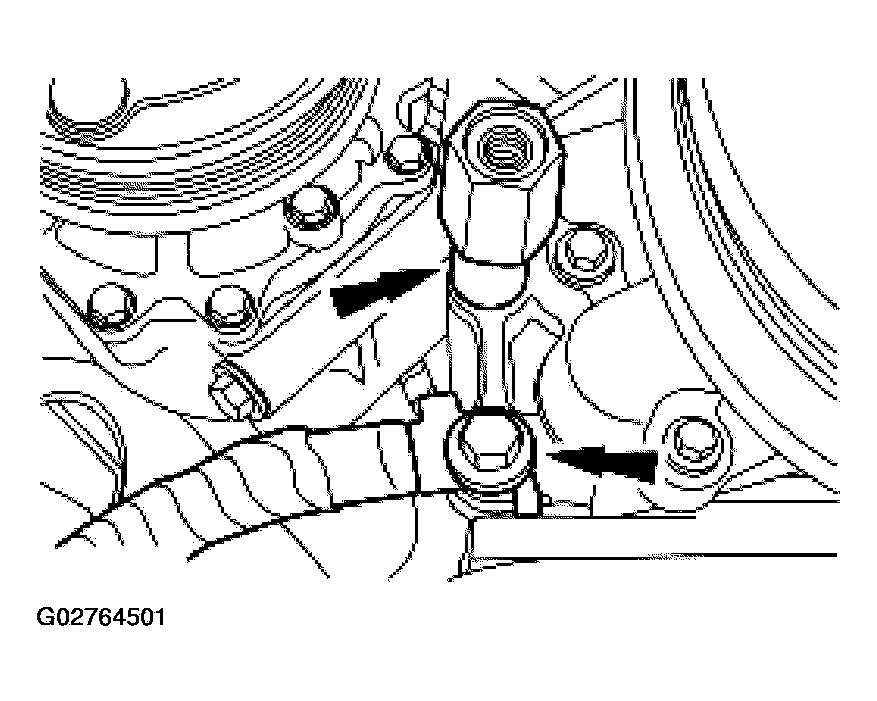

    Fig 7: Removing RH Fan Stator Stand-Off
    G02764501Courtesy of FORD MOTOR CO.
  13. Install the special tools.

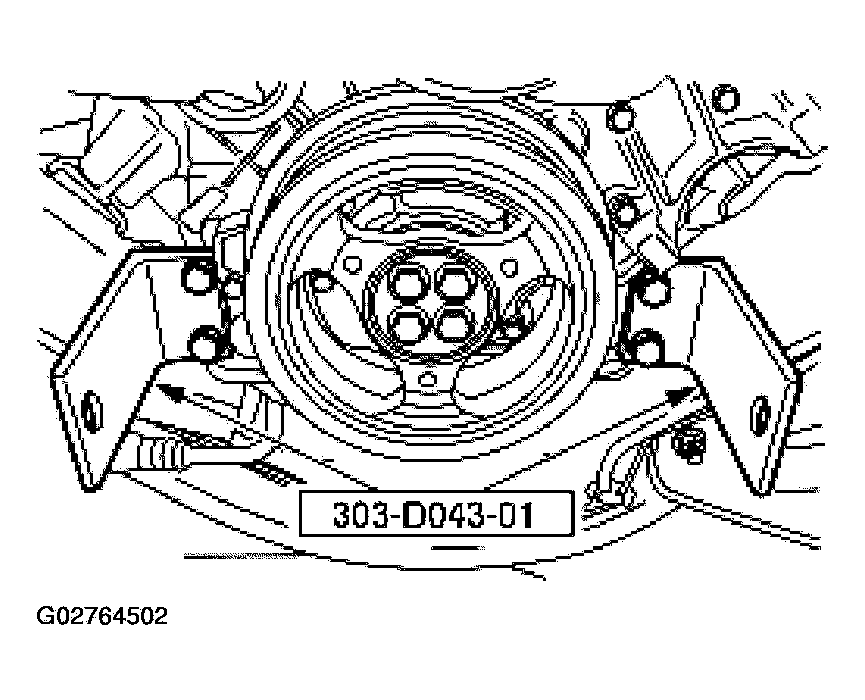

    Fig 8: Installing Special Tools
    G02764502Courtesy of FORD MOTOR CO.
  14. Install the engine lifting attachment and floor crane.
    Fig 9: Installing Engine Lifting Attachment And Floor Crane
    G02764503Courtesy of FORD MOTOR CO.
    15. CAUTION: Use care when raising the engine to avoid engine or body damage
  15. Raise the engine.
    16. NOTE: Engine removed for clarity.
    Fig 10: Removing Bolts
    G02764504Courtesy of FORD MOTOR CO.
  16. Remove the bolts and position back the oil pan until the oil pick up tube bolts are accessible.
  17. Remove the bolts and let the oil pick-up tube go into the oil pan. Remove the oil pan.

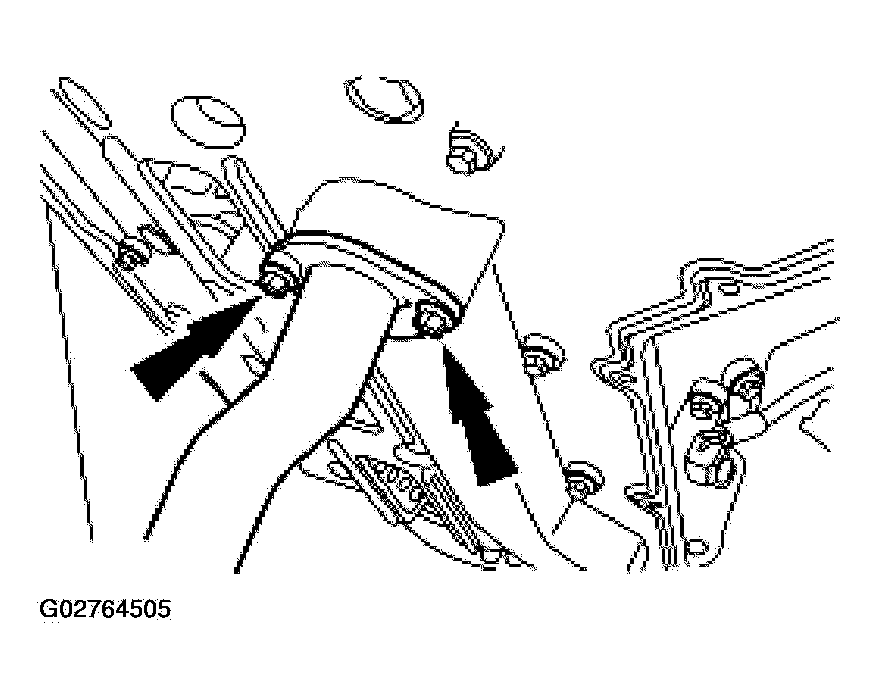

    Fig 11: Removing Bolts And Let Oil Pick-Up Tube Go Into Oil Pan
    G02764505Courtesy of FORD MOTOR CO.
  18. Remove and discard the oil pick-up tube O-ring seal.
    Fig 12: Removing Oil Pick-Up Tube O-Ring Seal
    G02764506Courtesy of FORD MOTOR CO.
  19. Remove the press-in-place gasket and discard.
    • Clean and inspect the sealing surfaces.

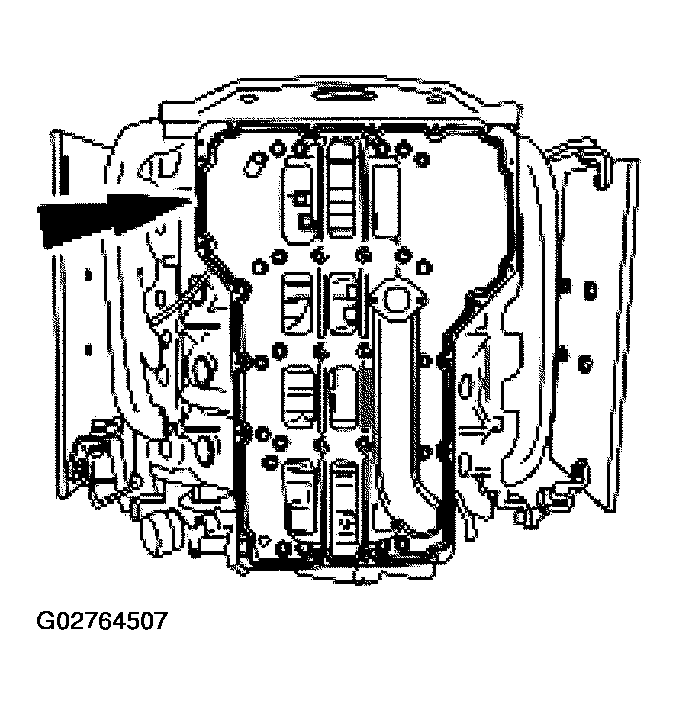

    Fig 13: Inspecting Sealing Surfaces
    G02764507Courtesy of FORD MOTOR CO.
