Oil Cooler: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Remove the bolts and oil filter adapter.
- Clean and inspect the gasket. Install a new gasket if necessary.
- Clean and inspect the sealing surfaces.

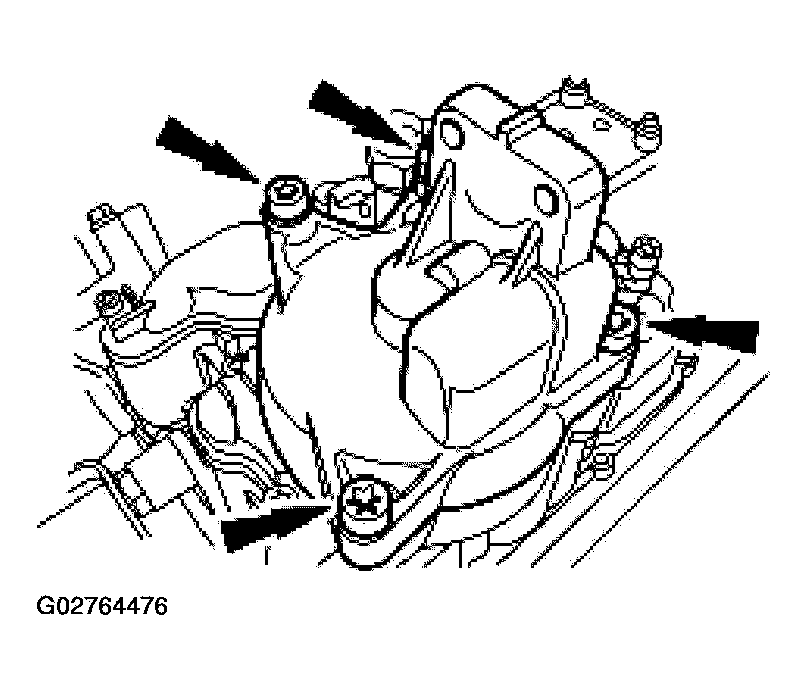

Fig 1: Inspecting Sealing Surfaces
Courtesy of FORD MOTOR CO.
Remove the bolts and the exhaust gas recirculation (EGR) cooler supply port cover.
- Clean and inspect the gasket. Install a new gasket if necessary.
- Clean and inspect the sealing surfaces.

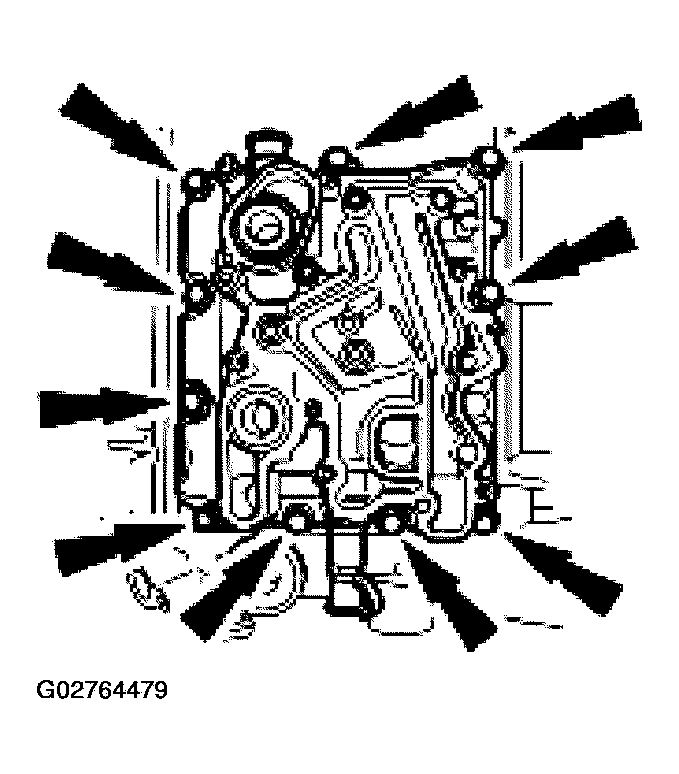

Fig 2: Inspecting Sealing Surfaces
Courtesy of FORD MOTOR CO.
Remove the bolts and the oil filter base.
- Clean and inspect the gasket. Install a new gasket if necessary.
- Clean and inspect the sealing surfaces.

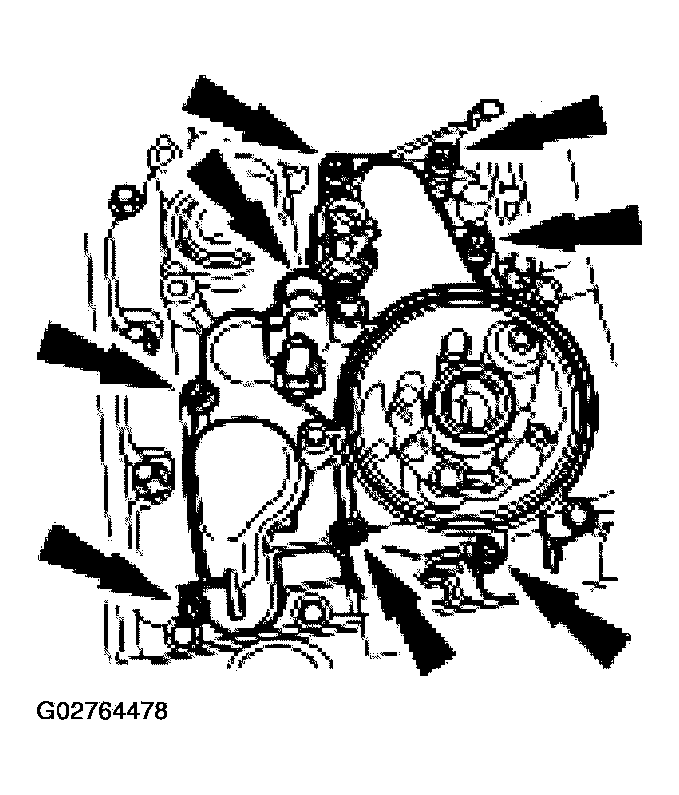

Fig 3: Inspecting Sealing Surfaces
Courtesy of FORD MOTOR CO.

CAUTION: In the event of a catastrophic engine failure, always install a new oil cooler cover assembly (with oil cooler). Foreign material cannot be removed from the oil cooler.

NOTE: The oil cooler is replaced as an assembly.

Fig 4: Inspecting Sealing Surfaces

Courtesy of FORD MOTOR CO.

Remove the bolts and the oil cooler assembly.
- Clean and inspect the gasket. Install a new gasket if necessary.
- Clean and inspect the sealing surfaces.
Remove the oil pump inlet strainer.
- Clean and inspect the strainer for tears or other signs of damage.
Fig 5: Removing Oil Pump Inlet Strainer
Courtesy of FORD MOTOR CO.
