Exhaust Manifold RH: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  4. Prior to removing the exhaust manifold, inspect the exhaust manifold for warpage with a feeler gauge between the manifold and the cylinder head. Record the measurement and compare with the specifications.
  5. Remove the RH bolts for the turbocharger adapter pipe.

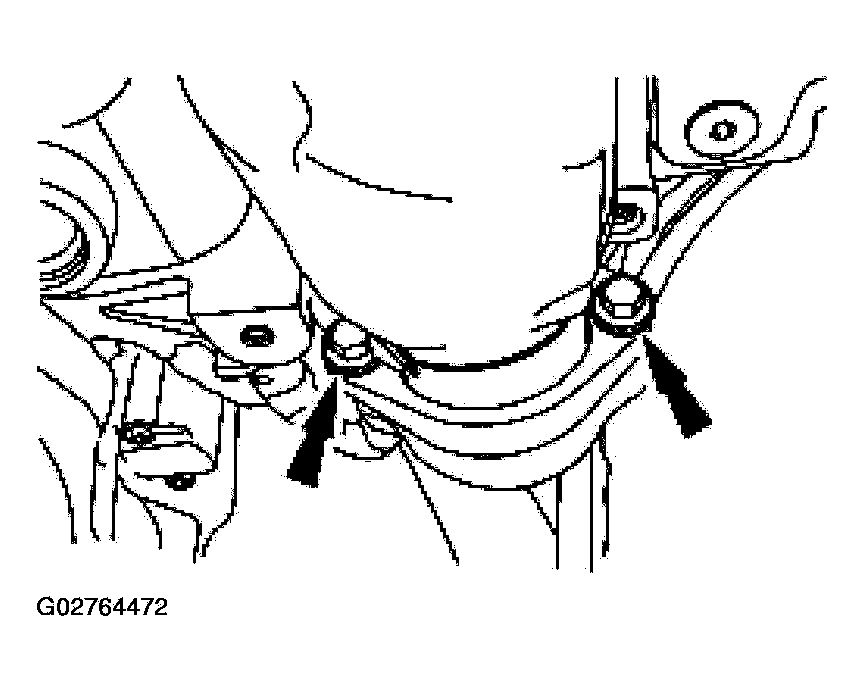

    Fig 1: Removing RH Bolts For Turbocharger Adapter Pipe
    G02764472Courtesy of FORD MOTOR CO.
    6. NOTE: Top bolts shown, bottom bolts similar.
    Fig 2: Removing Bolts And RH Exhaust Manifold
    G02764473Courtesy of FORD MOTOR CO.
  6. Remove the bolts and the RH exhaust manifold.
