Exhaust Manifold LH: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Prior to removing the exhaust manifold, inspect the exhaust manifold for warpage with a feeler gauge between the manifold and the cylinder head. Record the measurement and compare with the specifications.
  4. Remove the LH bolts for the turbocharger adapter pipe.

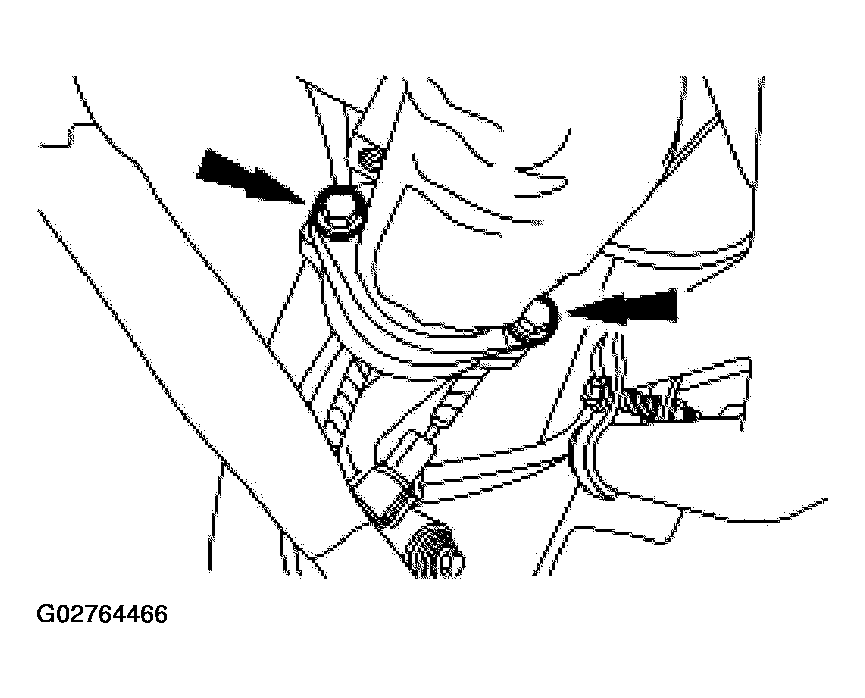

    Fig 1: Removing LH Bolts For Turbocharger Adapter Pipe
    G02764466Courtesy of FORD MOTOR CO.
  5. Disconnect the exhaust back pressure tube.

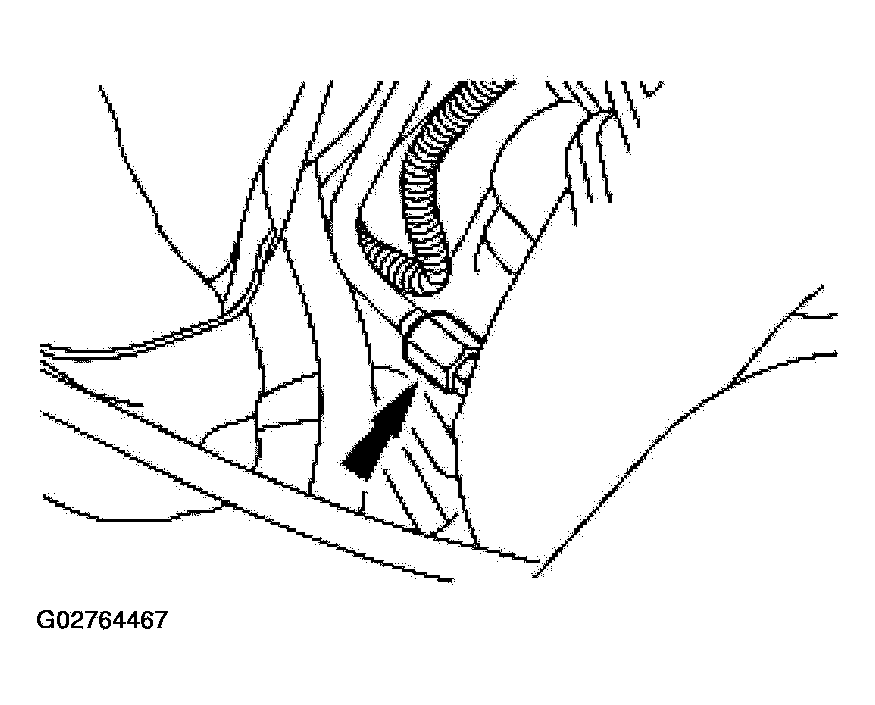

    Fig 2: Disconnecting Exhaust Back Pressure Tube
    G02764467Courtesy of FORD MOTOR CO.
    6. NOTE: Bottom bolts shown, top bolts similar.

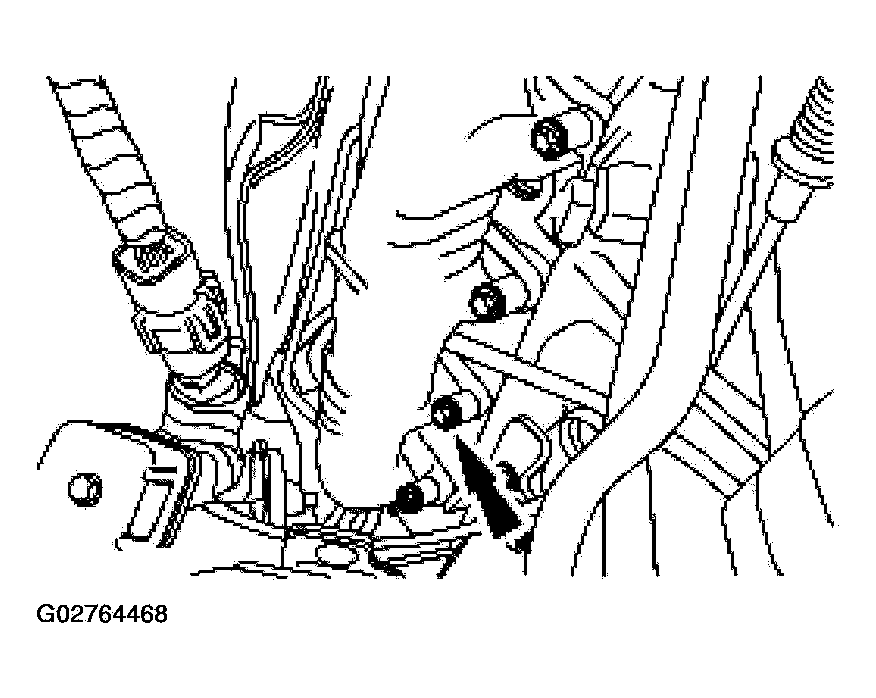

    Fig 3: Removing Bolts And LH Exhaust Manifold
    G02764468Courtesy of FORD MOTOR CO.
  6. Remove the bolts and the LH exhaust manifold.
