Engine Mount: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

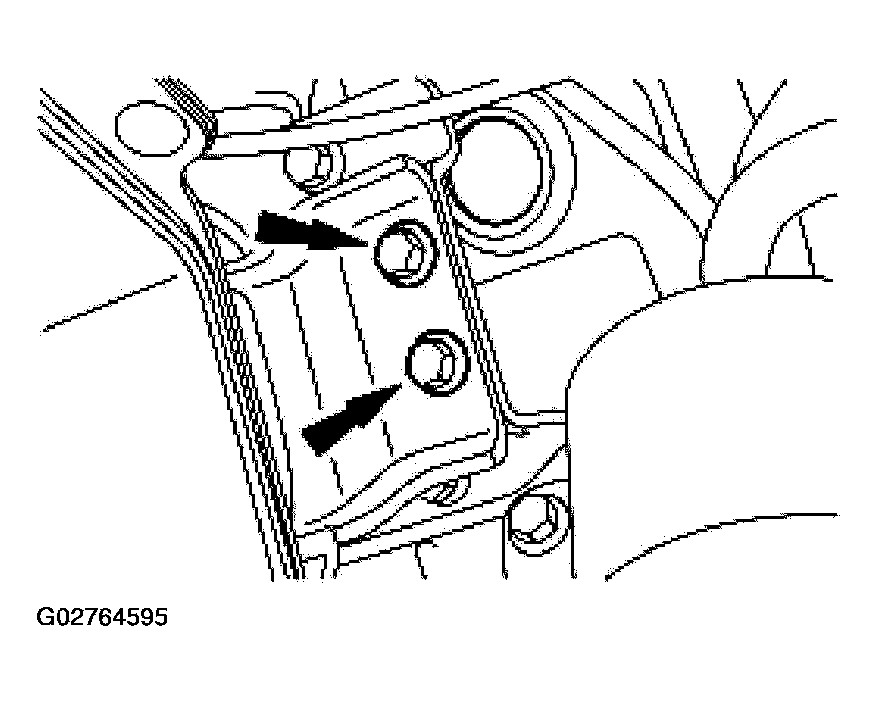

Install the motor mounts and loosely install the bolts.

Fig 1: Installing Motor Mounts Bolts
Courtesy of FORD MOTOR CO.
Lower the engine.

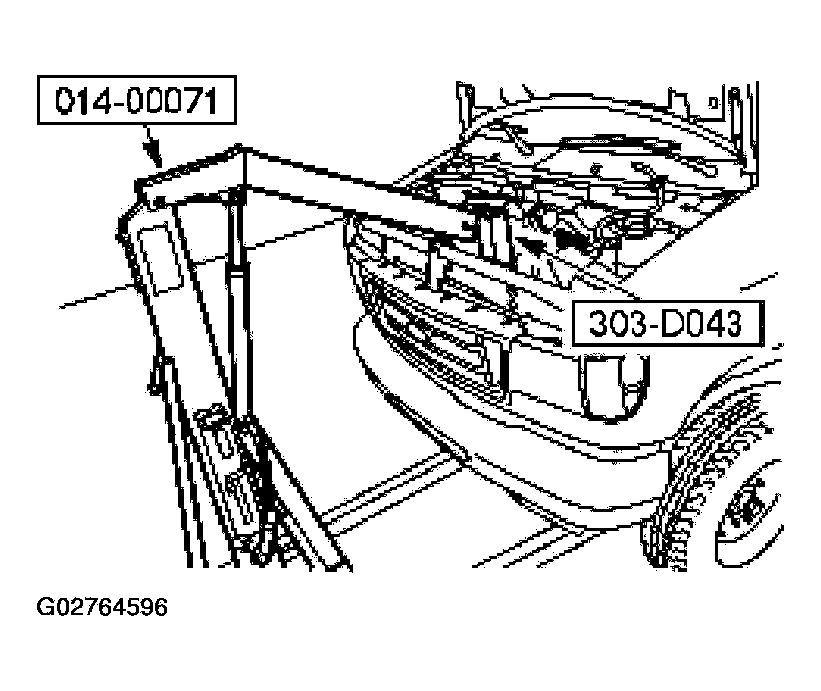

Remove the lifting attachment and lifting crane.

Fig 2: Removing Lifting Attachment And Lifting Crane
Courtesy of FORD MOTOR CO.

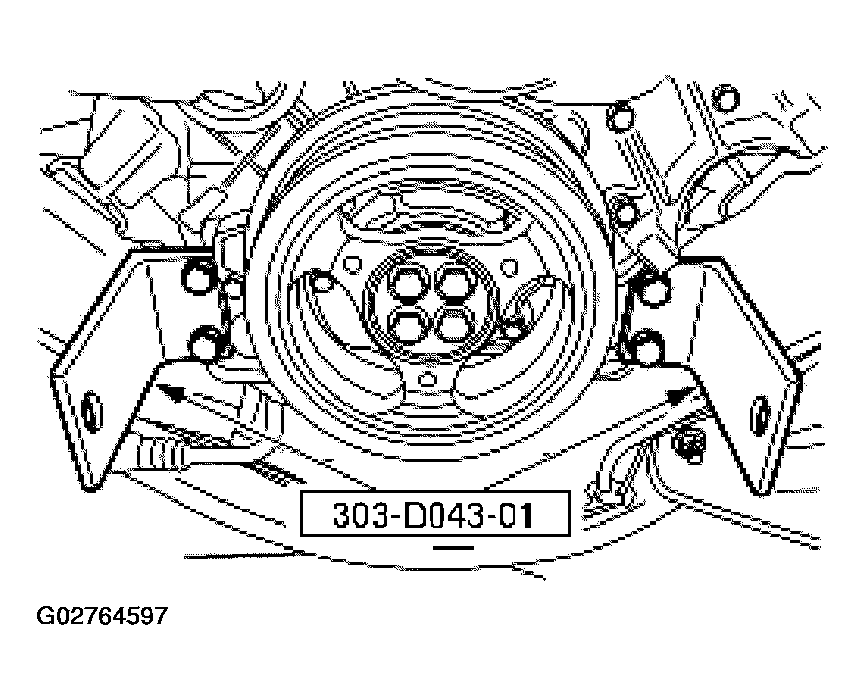

Remove the special tools.

Fig 3: Removing Special Tools
Courtesy of FORD MOTOR CO.

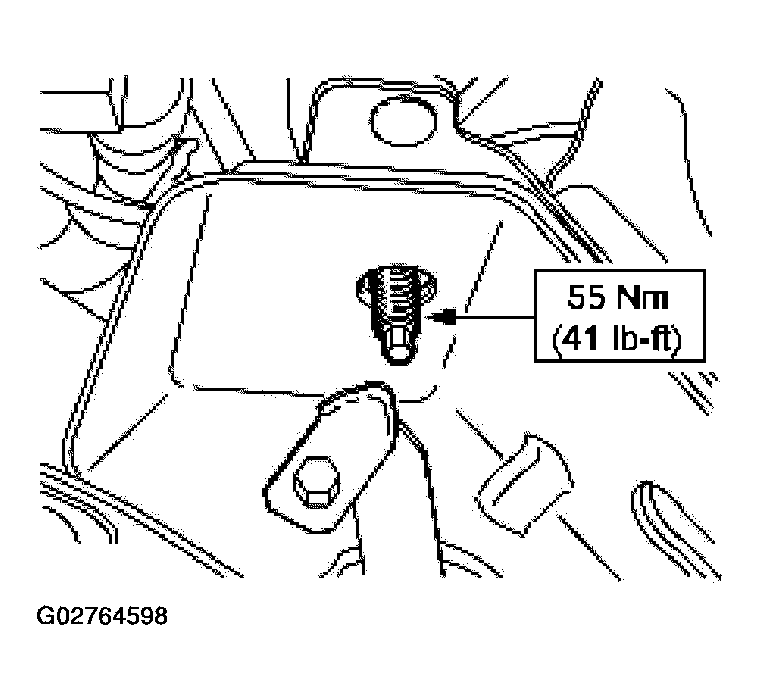

Install the upper motor mount studs.

Fig 4: Installing Upper Motor Mount Studs
Courtesy of FORD MOTOR CO.

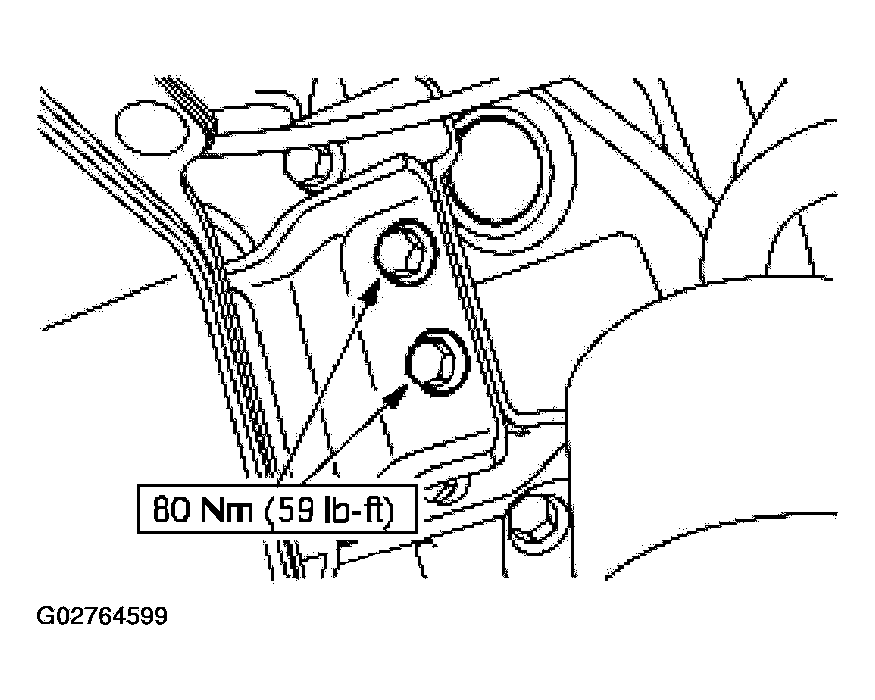

Tighten the motor mount bolts.

Fig 5: Tightening Motor Mount Bolts
Courtesy of FORD MOTOR CO.

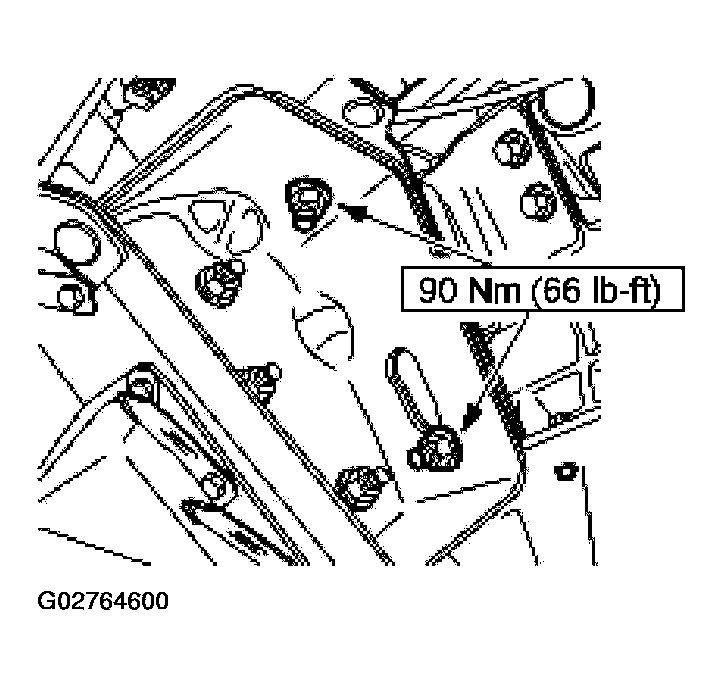

NOTE: The top retaining nut must be tightened first.

Fig 6: Installing Motor Mount Retaining Nuts

Courtesy of FORD MOTOR CO.

Install the motor mount retaining nuts.

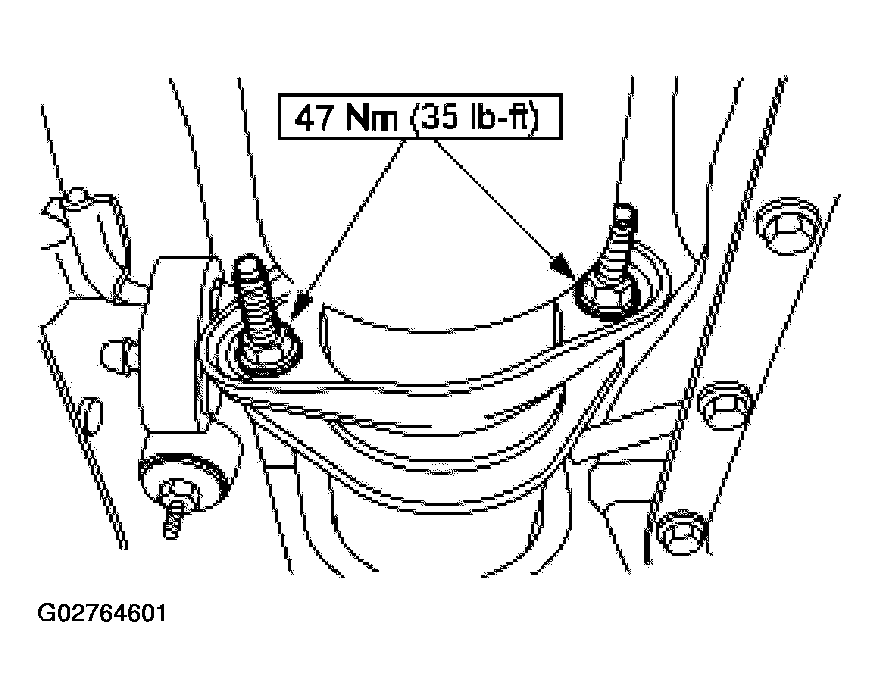

Tighten the exhaust pipe retaining nuts.

Fig 7: Tightening Exhaust Pipe Retaining Nuts
Courtesy of FORD MOTOR CO.

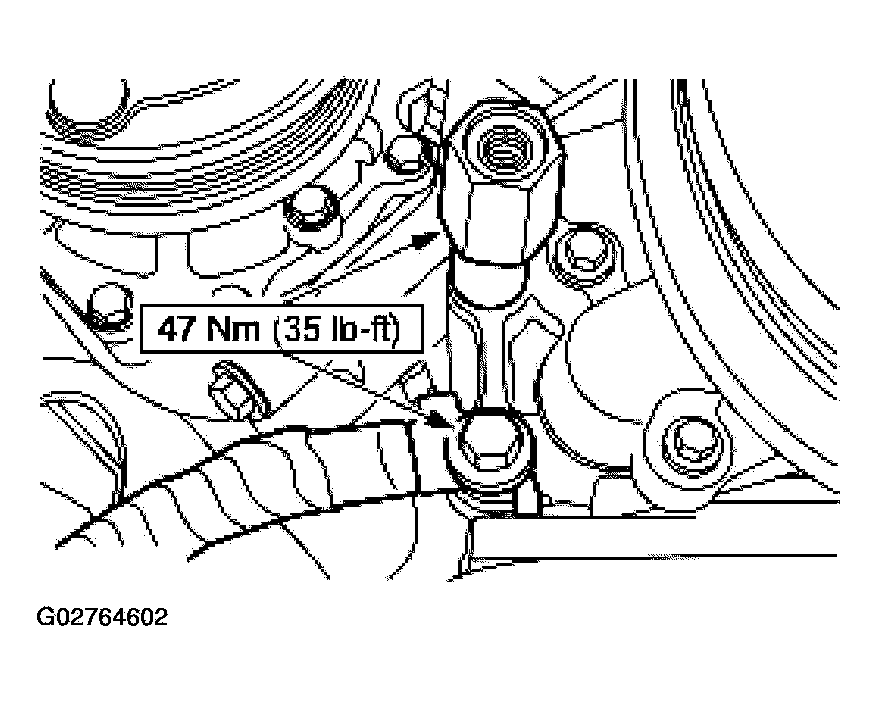

Position back the cable and install the bolt. Install the RH fan stator stand-off.

Fig 8: Installing RH Fan Stator Stand-Off
Courtesy of FORD MOTOR CO.

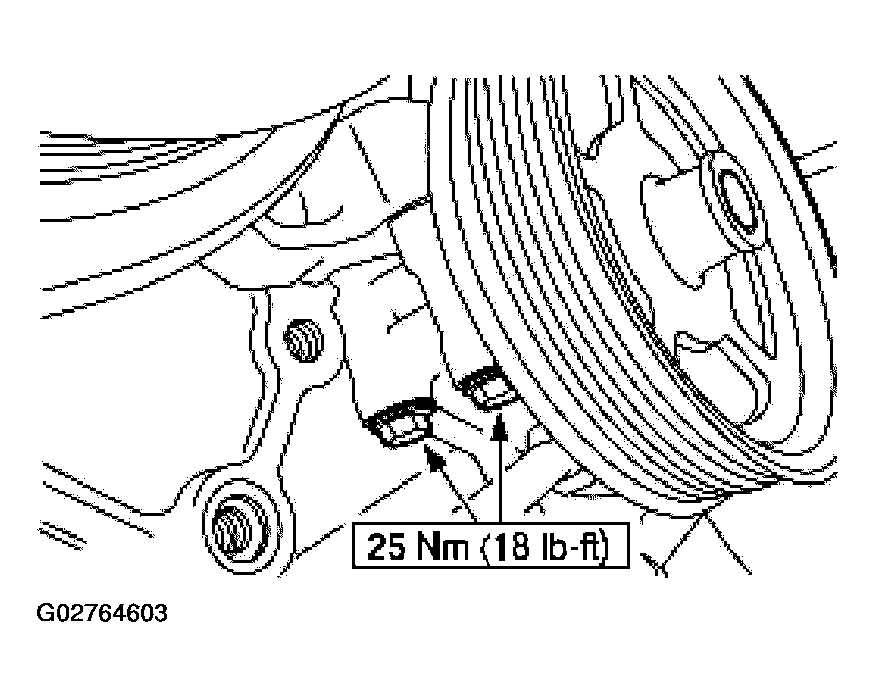

Position the power steering pump and install the bolts.

Fig 9: Positioning Power Steering Pump
Courtesy of FORD MOTOR CO.
Install the LH fan stator stand-off.

Fig 10: Installing LH Fan Stator Stand-Off
Courtesy of FORD MOTOR CO.

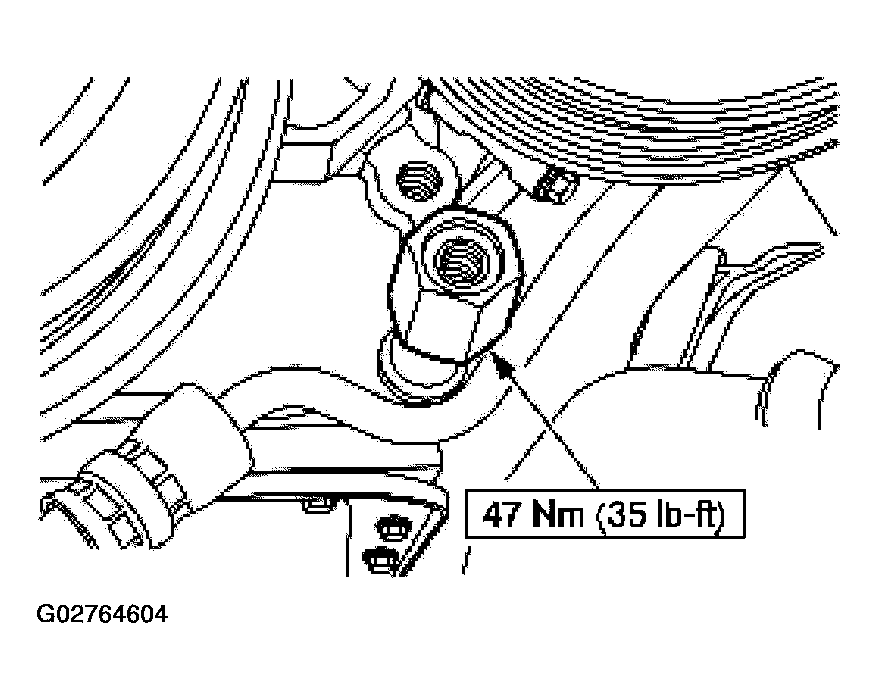

Install the upper power steering bolt.

Fig 11: Installing Upper Power Steering Bolt
Courtesy of FORD MOTOR CO.
Install the A/C compressor. For additional information, refer to HEATING & VENTILATION .
Install the cooling fan stator and radiator. For additional information, refer to ENGINE COOLING .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
