Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the outer diameter of the rubber seal with a solution of dish soap and water (approximately 50/50 mix) prior to assembly. Do not use any other type of lubricant.
    NOTE: The crankshaft rear oil seal and wear sleeve are installed as an assembly.
  1. Apply a bead of Threadlock 262® around the circumference of the outer rear edge of the secondary crankshaft flange.
  2. Using the special tool, install the crankshaft rear oil seal.

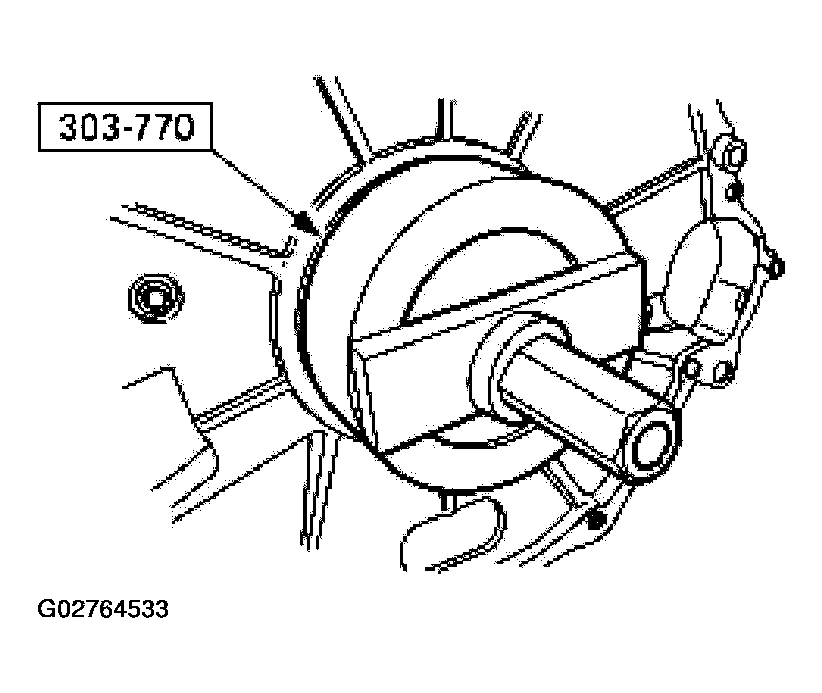

    Fig 1: Installing Crankshaft Rear Oil Seal
    G02764533Courtesy of FORD MOTOR CO.
  3. Install the flywheel front adapter.

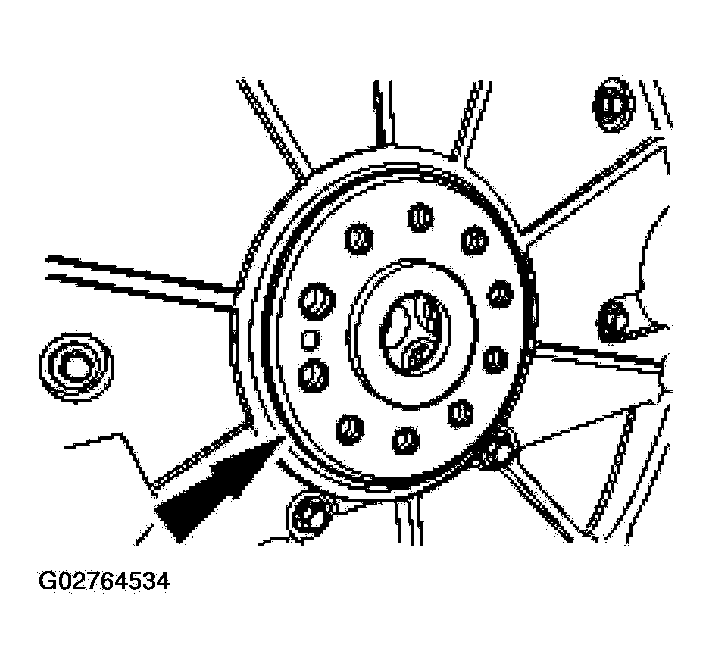

    Fig 2: Installing Flywheel Front Adapter
    G02764534Courtesy of FORD MOTOR CO.
  4. Install the flexplate and bolts.
    • Snug all bolts to 5 Nm (44 lb-in)
    • Tighten all bolts to 94 Nm (69 lb-ft) in the sequence shown.

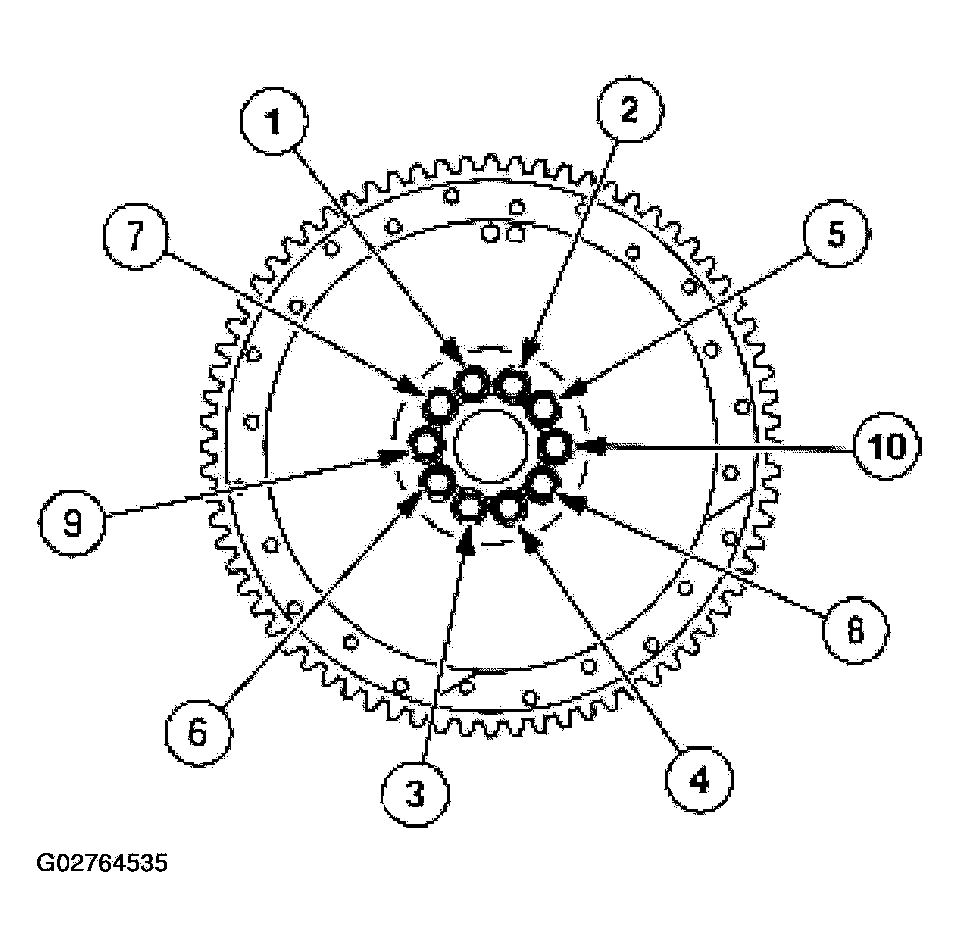

    Fig 3: Installing Flexplate And Bolts
    G02764535Courtesy of FORD MOTOR CO.
  5. Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - TORQSHIFT .
