Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft vibration damper. For additional information, refer to CRANKSHAFT PULLEY .
  2. Punch two holes in the seal.

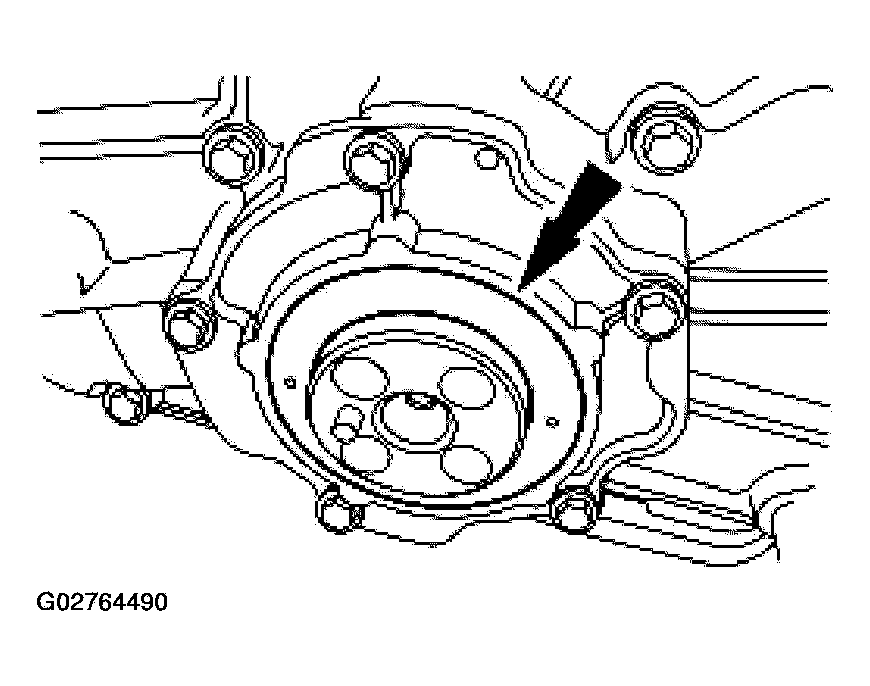

    Fig 1: Removing Crankshaft Vibration Damper
    G02764490Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the crankshaft seal.

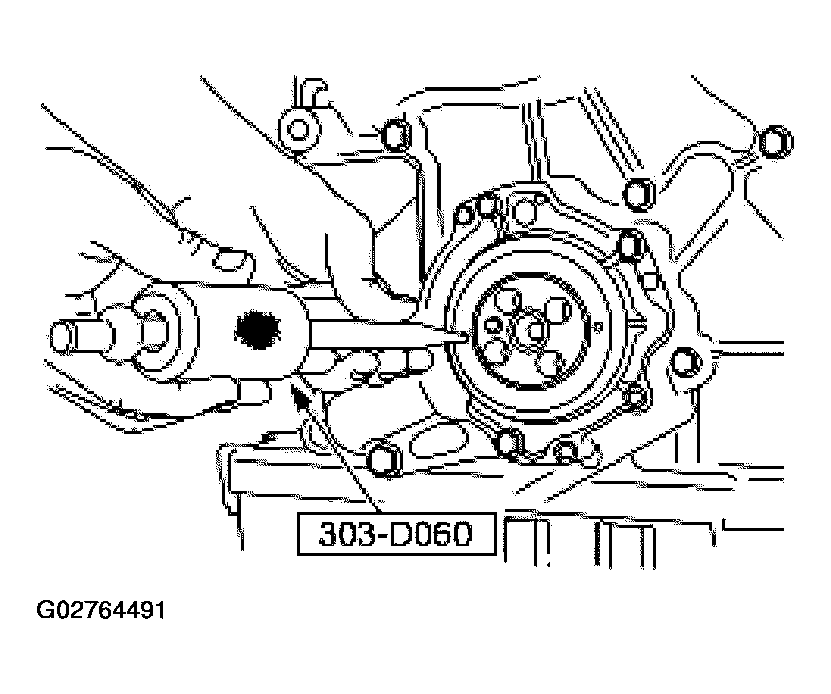

    Fig 2: Removing Crankshaft Seal
    G02764491Courtesy of FORD MOTOR CO.
    4. NOTE: Production engine will not have a wear sleeve.

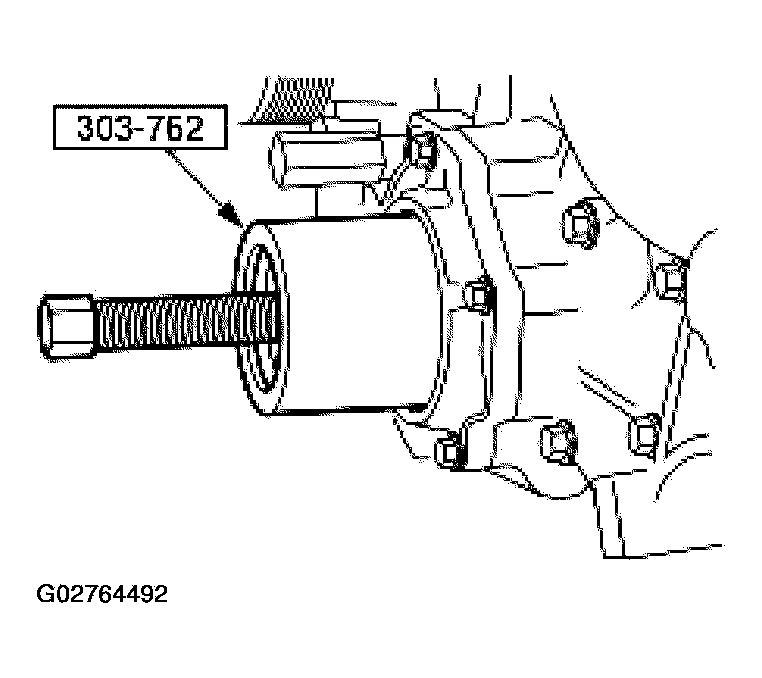

    Fig 3: Removing Crankshaft Damper Wear Sleeve
    G02764492Courtesy of FORD MOTOR CO.
  4. If equipped, using the special tool, remove the crankshaft damper wear sleeve.
