Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mark the connecting rod and piston to make sure correct orientation on reassembly.

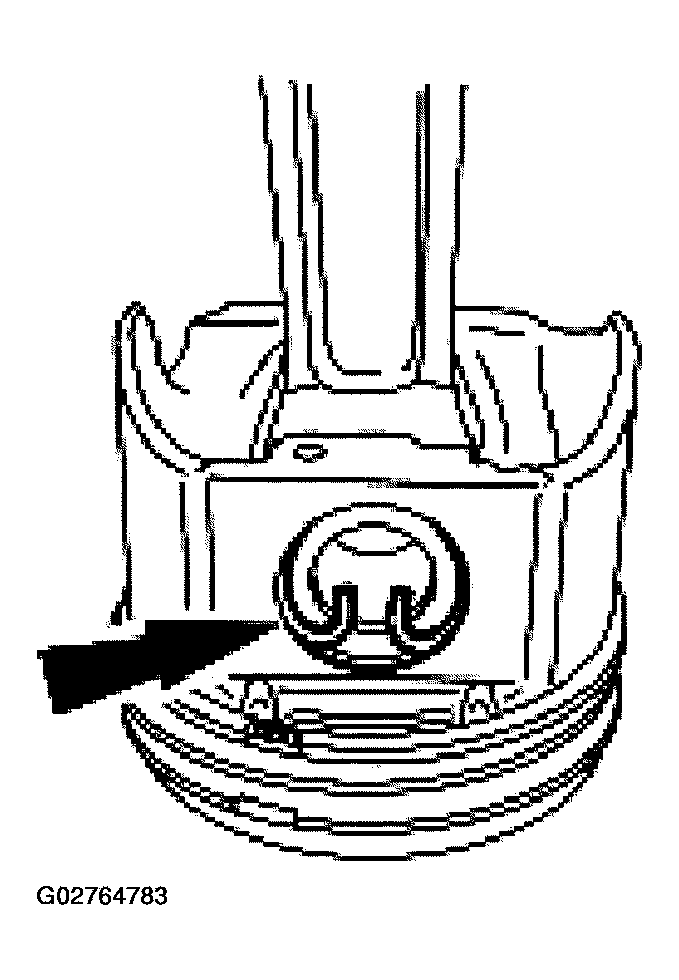

Fig 1: Removing Piston Pin Retainers

Courtesy of FORD MOTOR CO.

Remove the piston pin retainers.

NOTE: The piston pins are a floating type piston pin and should not require a press to remove or install them.

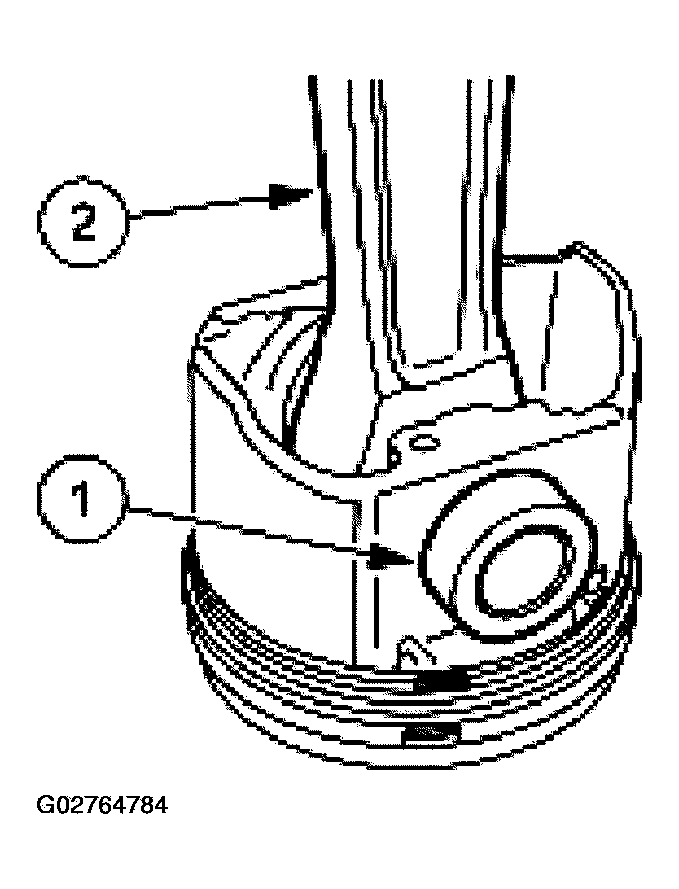

Fig 2: Removing Connecting Rod

Courtesy of FORD MOTOR CO.

Remove the connecting rod.
1. Remove the piston pin.
2. Remove the connecting rod.
To assemble, reverse the disassembly procedure.
