Cylinder Head: Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve stem seal.

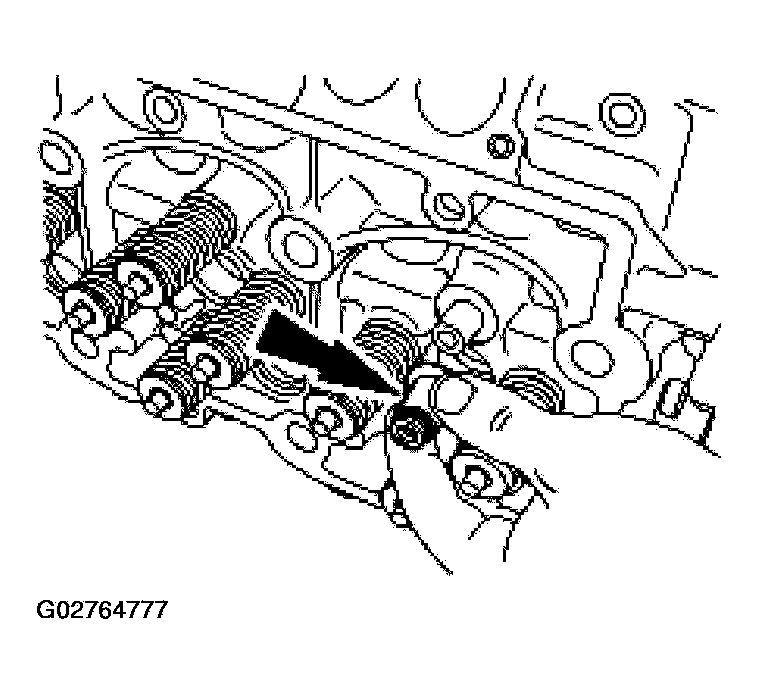

    Fig 1: Installing Valve Stem Seal
    G02764777Courtesy of FORD MOTOR CO.
  2. Install the valve.

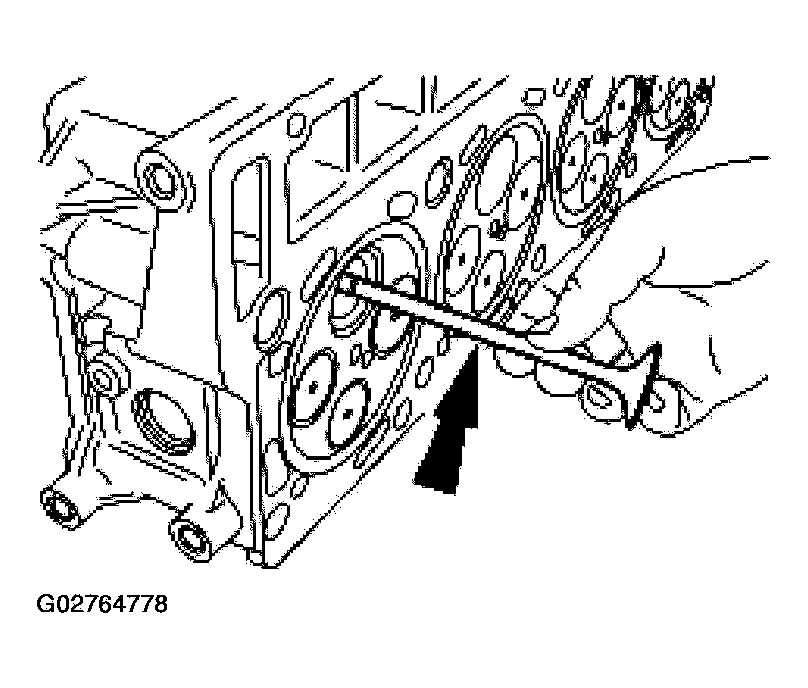

    Fig 2: Installing Valve
    G02764778Courtesy of FORD MOTOR CO.
  3. Install the valve spring.

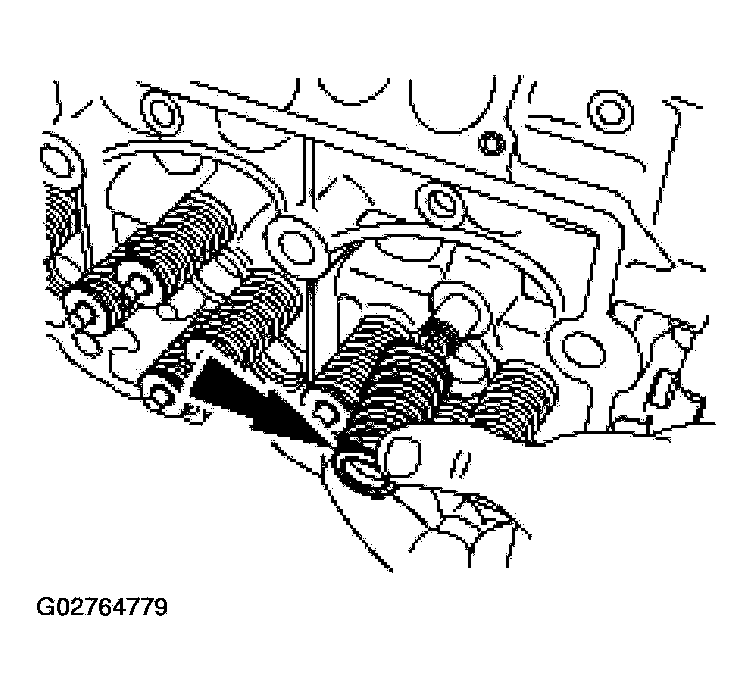

    Fig 3: Installing Valve Spring
    G02764779Courtesy of FORD MOTOR CO.
  4. Install the valve spring rotator.

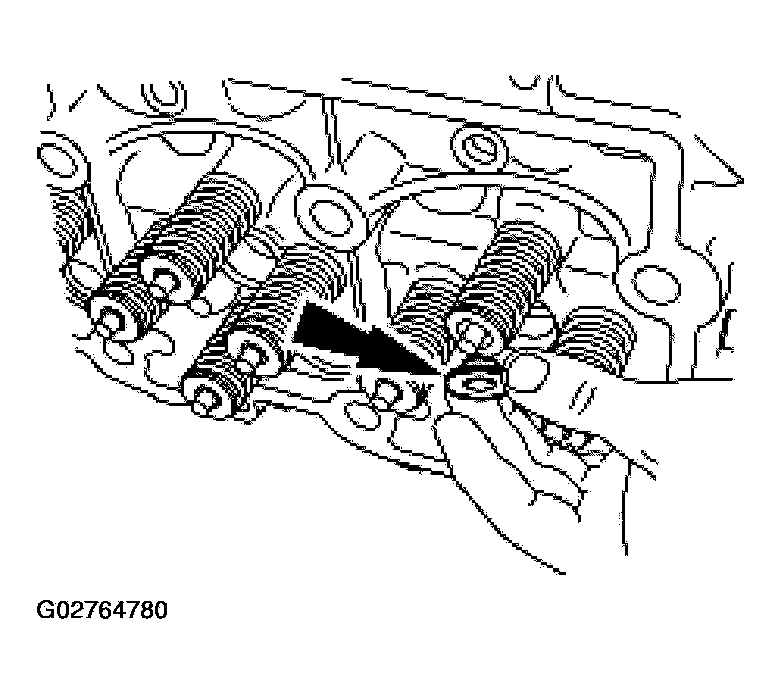

    Fig 4: Installing Valve Spring Rotator
    G02764780Courtesy of FORD MOTOR CO.
  5. Install the valve spring retainer keys.
    1. Install the Valve Spring Compressor.
    2. Install the valve spring retainer keys.

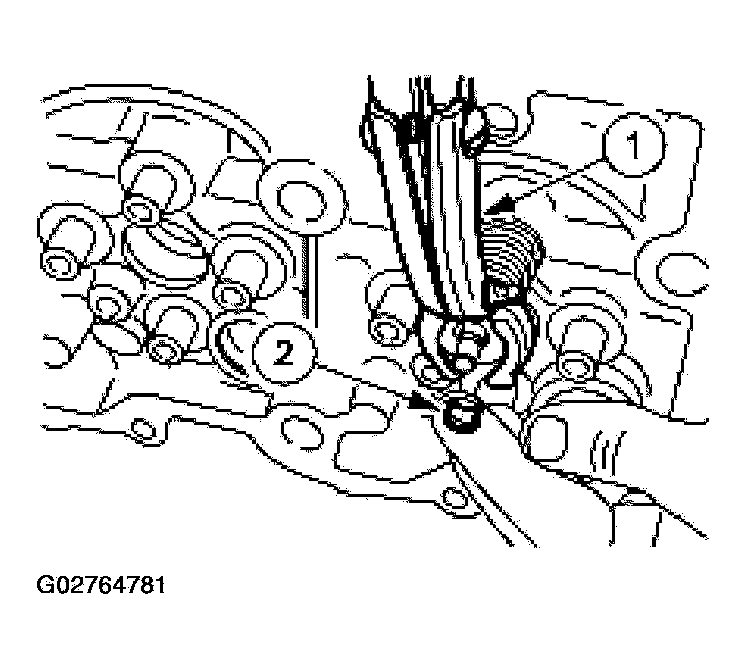

    Fig 5: Installing Valve Spring Retainer Keys
    G02764781Courtesy of FORD MOTOR CO.
  6. Remove the Valve Spring Compressor.

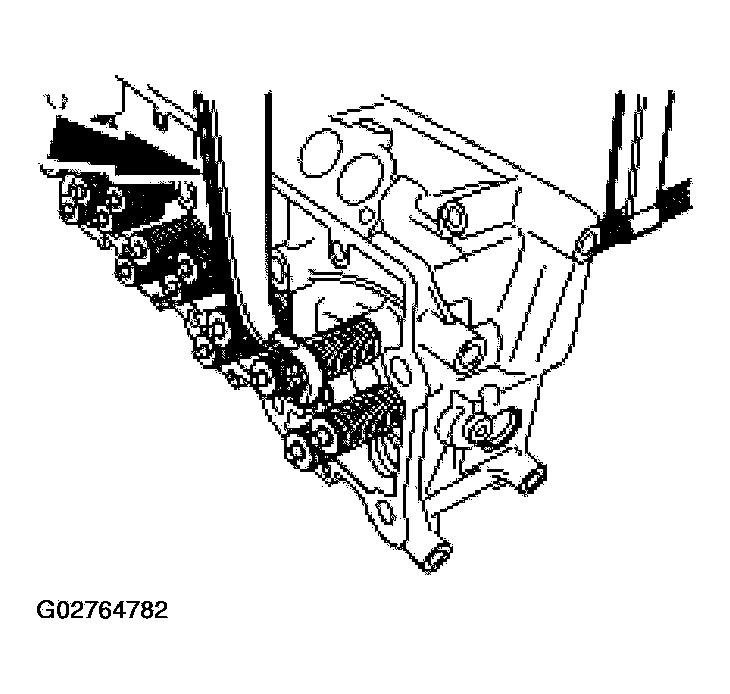

    Fig 6: Removing Valve Spring Compressor
    G02764782Courtesy of FORD MOTOR CO.
  7. Install the lifting bracket on the cylinder head.
