Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern.
  2. Visually inspect for obvious signs of damage.
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  4. If the concern is not visually evident, check the base oil pressure.

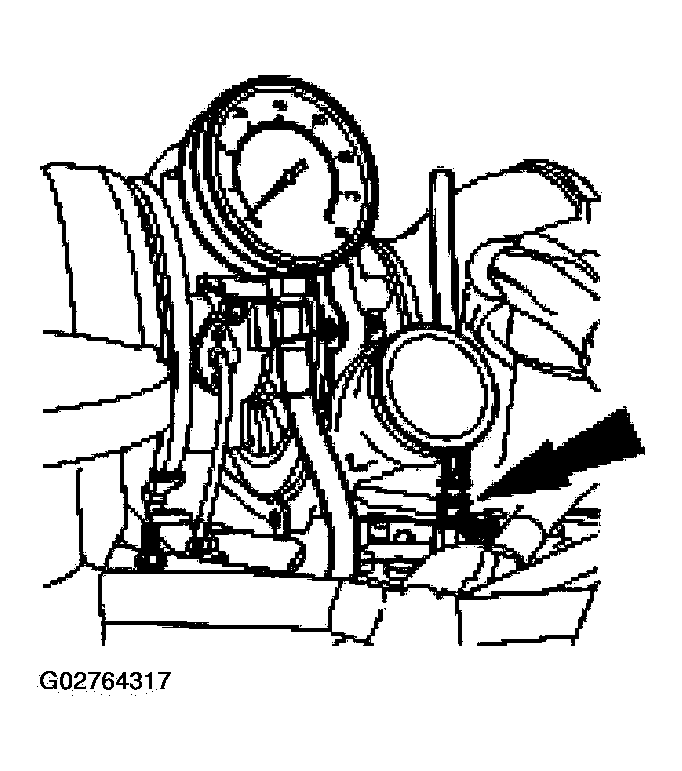

    Fig 1: Checking Base Oil Pressure
    G02764317Courtesy of FORD MOTOR CO.
    5. NOTE: Using a suitable adapter (such as Arequipa® 2022-4-4S), install it in the engine oil pressure sensor hole to perform the base oil pressure test.
    NOTE: The engine is removed for clarity.
  5. Install the tool and check the base oil pressure. The minimum engine oil pressure specifications are 82.7 kPa (12 psi) at 700 rpm, 165.5 kPa (24 psi) at 1,200 rpm and 310.3 kPa (45 psi) at 1,800 rpm with the engine at operating temperature.
  6. If the concern is not evident, verify the symptom. GO to SYMPTOM CHART .
