TWO-PINION LIMITED-SLIP DIFFERENTIAL - MODEL 60-1U TRAC-LOK® (FULL-FLOATING AXLE), EXPLODED VIEW

Fig 1: Exploded View Of Two-Pinion Limited-Slip Differential - Model 60-1U Trac-Lok® (Full-Floating Axle)

Courtesy of FORD MOTOR CO.

POWER-LOK® DIFFERENTIAL - MODEL 70, EXPLODED VIEW

Fig 2: Exploded View Of Power-Lok® Differential - Model 70

Courtesy of FORD MOTOR CO.

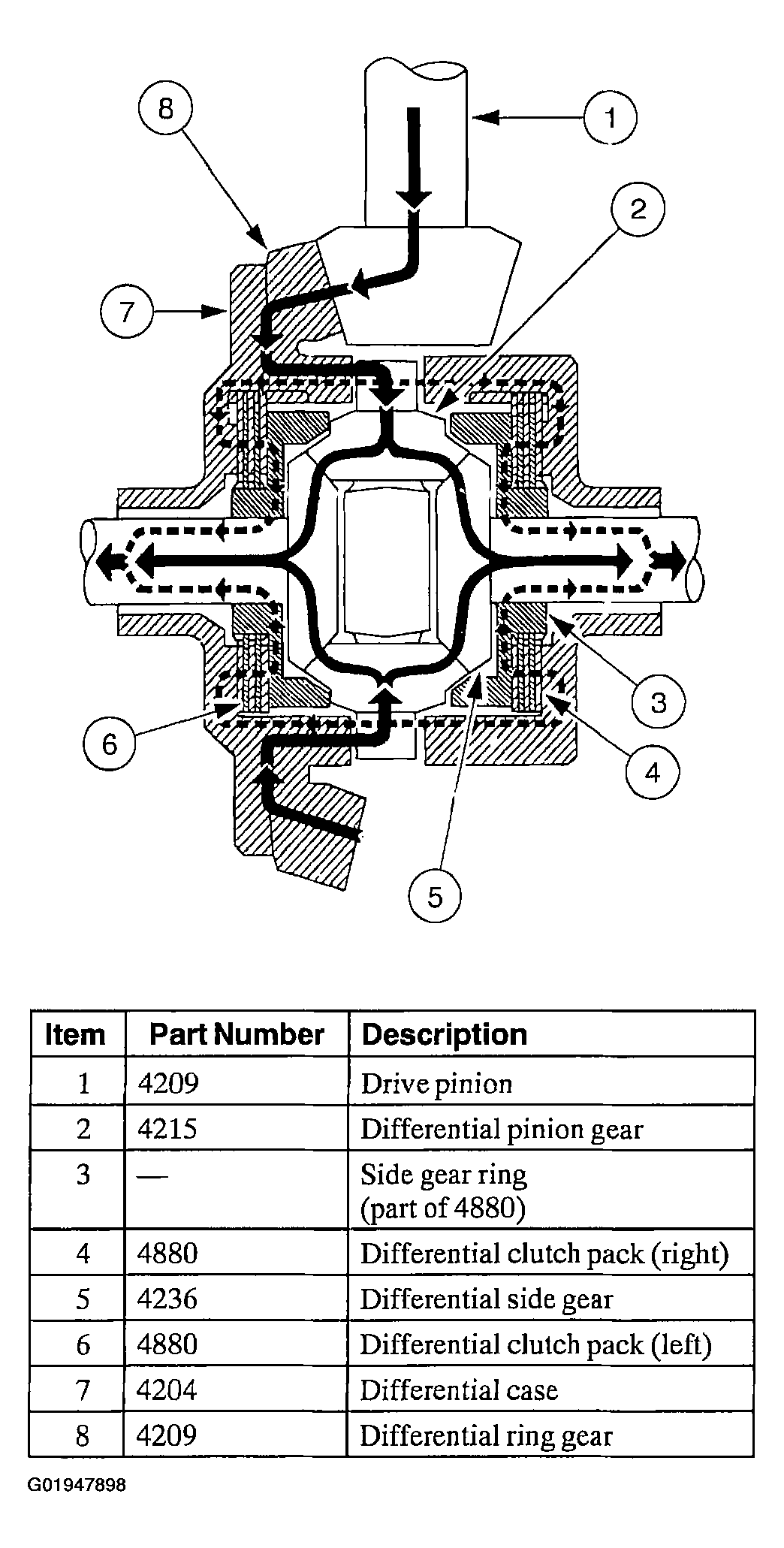

LIMITED-SLIP DIFFERENTIAL POWER FLOW WITH BOTH WHEELS DRIVING-CUTAWAY

Fig 3: Identifying Limited-Slip Differential Power Flow with Both Wheels Driving - Cutaway

Courtesy of FORD MOTOR CO.

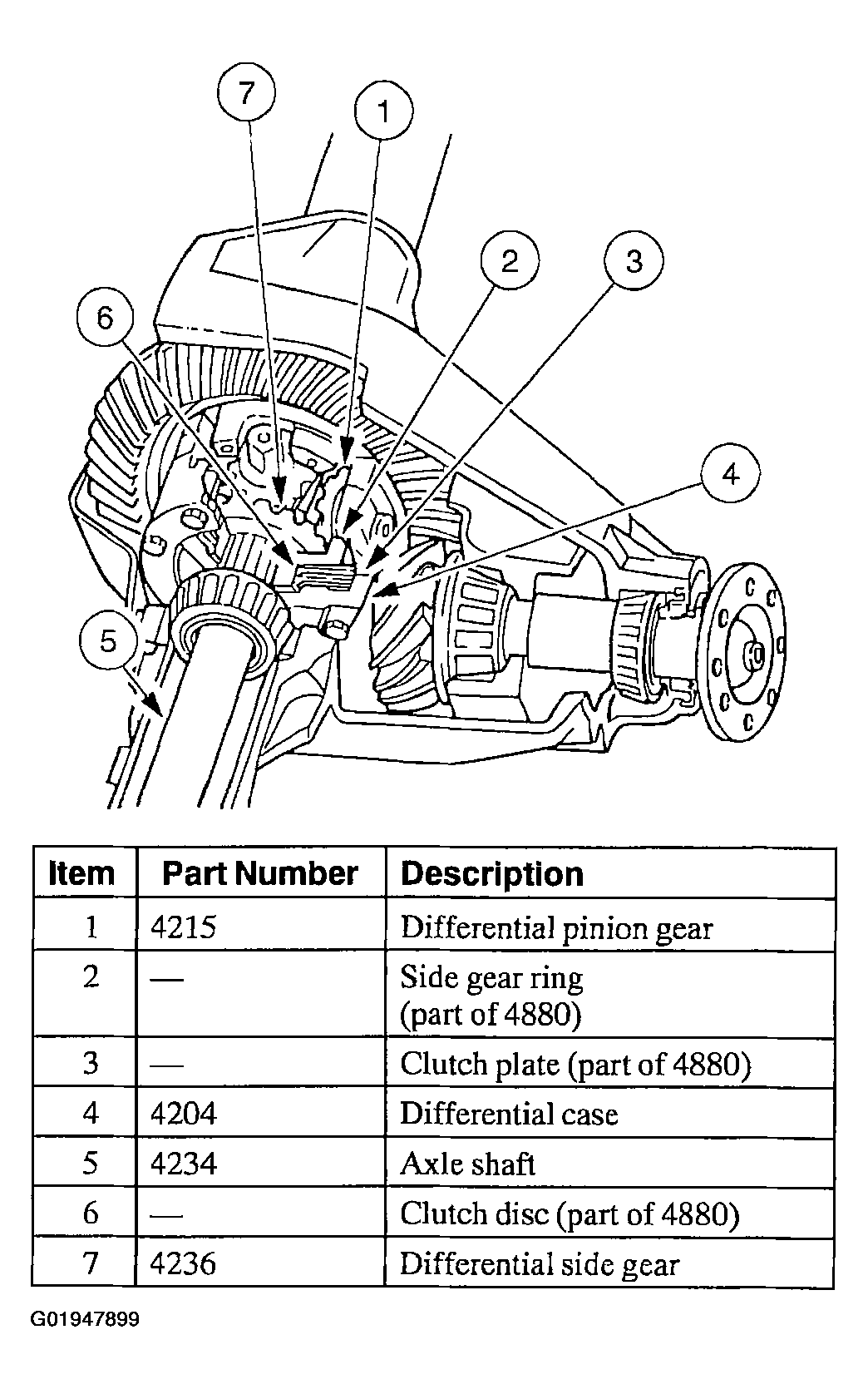

LIMITED-SLIP DIFFERENTIAL-MODEL 70-2U POWER-LOK®-CUTAWAY

Fig 4: Identifying Limited-Slip Differential - Model 70-2U Power-Lok® -Cutaway

Courtesy of FORD MOTOR CO.

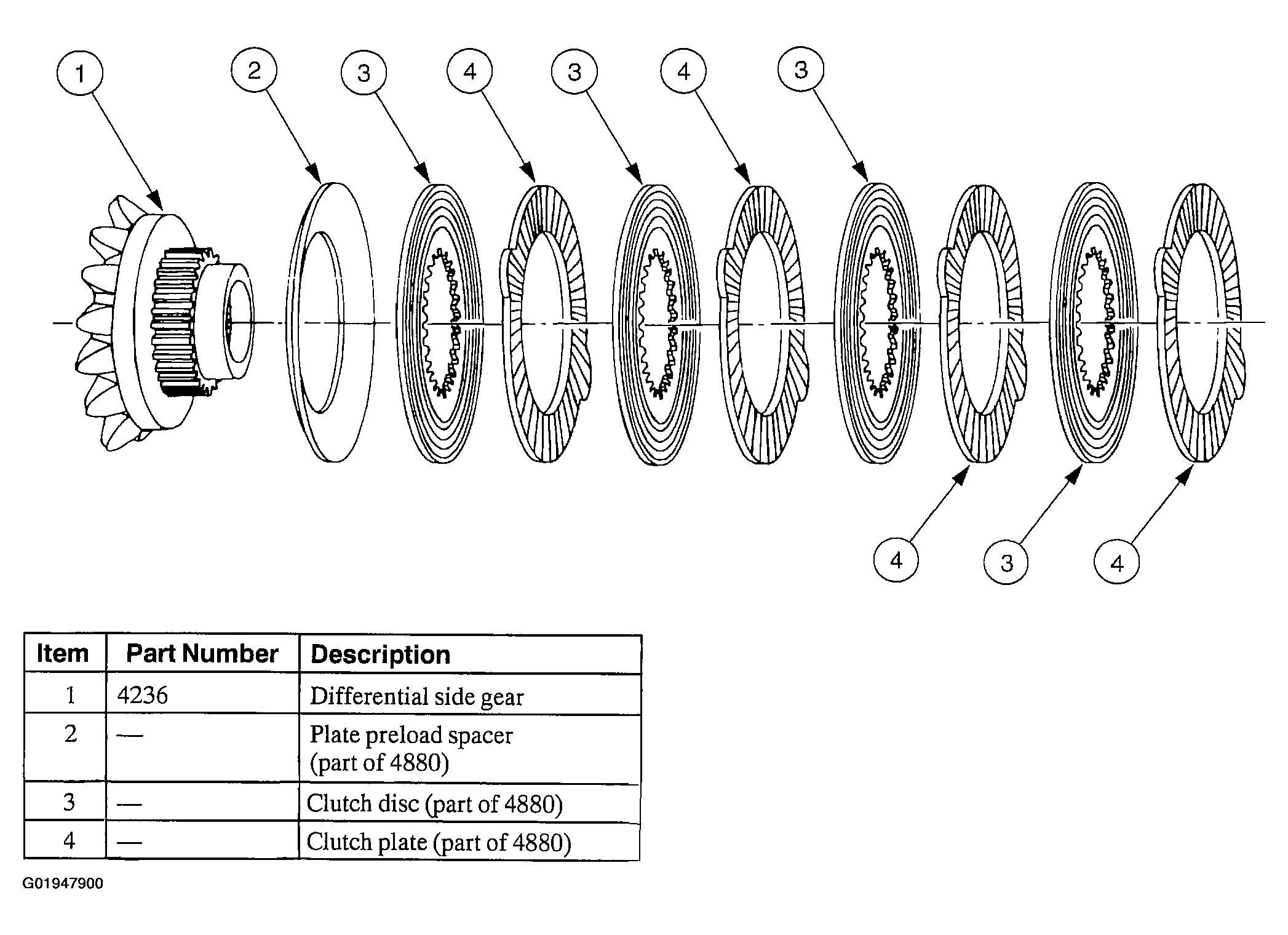

DIFFERENTIAL CLUTCH PACK - MODEL 60-1U TRAC-LOK®--EXPLODED VIEW

Fig 5: Exploded View Of Differential Clutch Pack - Model 60-1U Trac-Lok

Courtesy of FORD MOTOR CO.

The Model 60 differential clutch packs have clutch discs with concentric grooves and clutch plates with radial grooves. The Model 70 Power-Lok® differential has paper-coated clutch packs. Prior to assembly, soak the clutch packs for 20 minutes in Additive Friction Modifier C8AZ-19B546-A or equivalent meeting Ford specification EST-M2C118-A. Arrangement of these plates and discs is at the option of the vehicle manufacturer. During disassembly, note the arrangement of these components to maintain their order during assembly.
