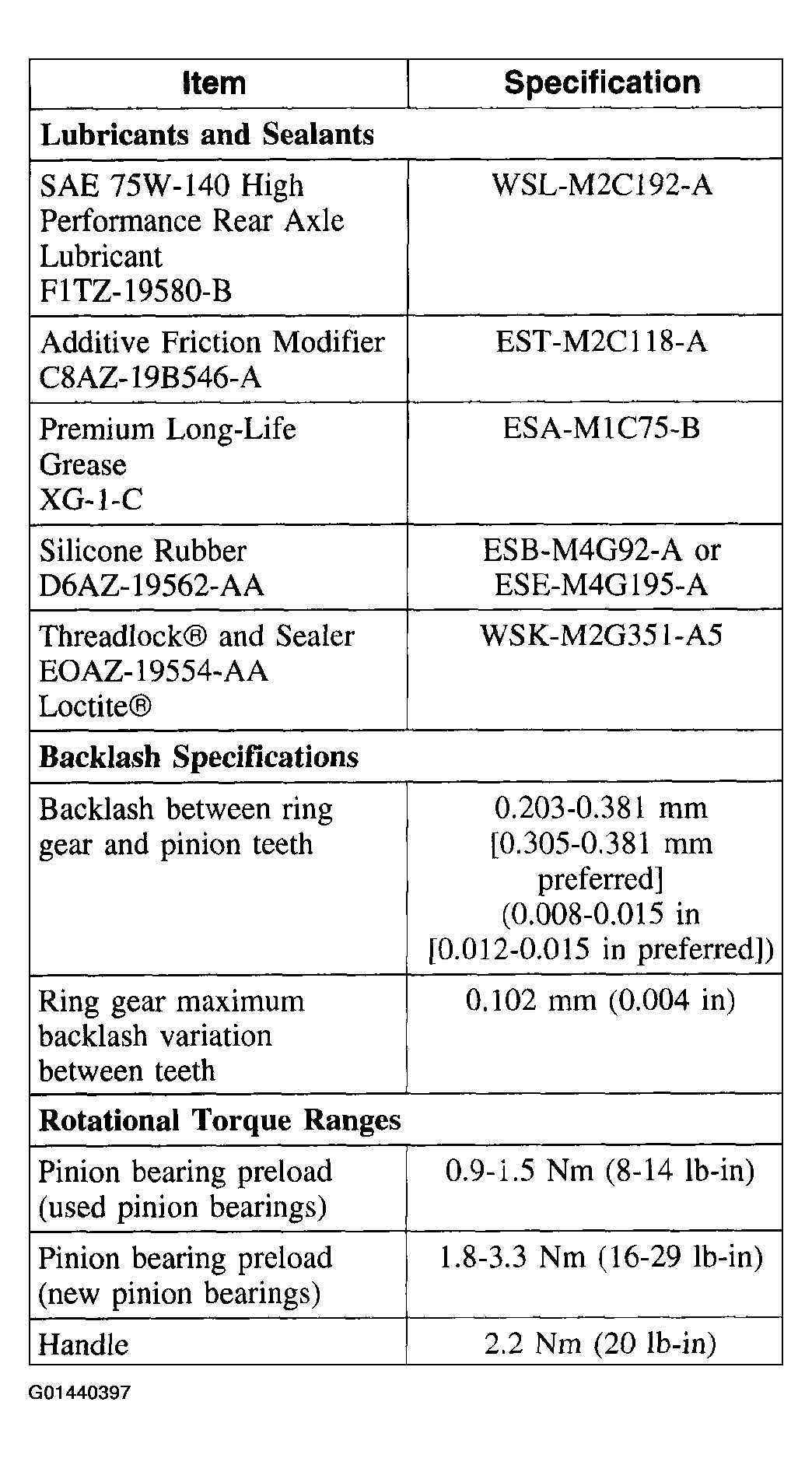

GENERAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Lubricants and Sealants | |
| SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B | WSL-M2C192-A |
| Additive Friction Modifier C8AZ-19B546-A | EST-M2C118-A |
| Premium Long-Life Grease XG-l-C | ESA-M1C75-B |
| Silicone Rubber D6AZ-19562-AA | ESB-M4G92-A or ESE-M4G195-A |
| Threadlock® and Sealer EOAZ-19554-AA Loctite® | WSK-M2G351-A5 |
| Backlash Specifications | |
| Backlash between ring gear and pinion teeth | 0.203-0.381 mm [0.305-0.381 mm preferred] (0.008-0.015 in [0.012-0.015 in preferred]) |
| Ring gear maximum backlash variation between teeth | 0.102 mm (0.004 in) |
| Rotational Torque Ranges | |
| Pinion bearing preload (used pinion bearings) | 0.9-1.5 Nm (8-14 lb-in) |
| Pinion bearing preload (new pinion bearings) | 1.8-3.3 Nm (16-29 lb-in) |
| Handle | 2.2 Nm (20 lb-in) |
| Clearance Specifications | |
| Differential case maximum runout | 0.076 mm (0.003 in) |
| Maximum axle shaft end play | 0.762 mm (0.030 in) |
| Pinion flange maximum radial runout in assembly | 0.305 mm (0.012 in) T.I.R. |
| RABS sensor air gap | 0.127-1.143 mm (0.005-0.045 in) |
