Axle Shaft: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  3. Remove the differential housing cover (4033).
  4. Remove the rear brake drums (1126). For additional information, refer to DISC & DRUM .
  5. Remove the differential pinion shaft (4211).
    1. Remove and discard the differential pinion shaft lock bolt.
    2. Remove the differential pinion shaft.

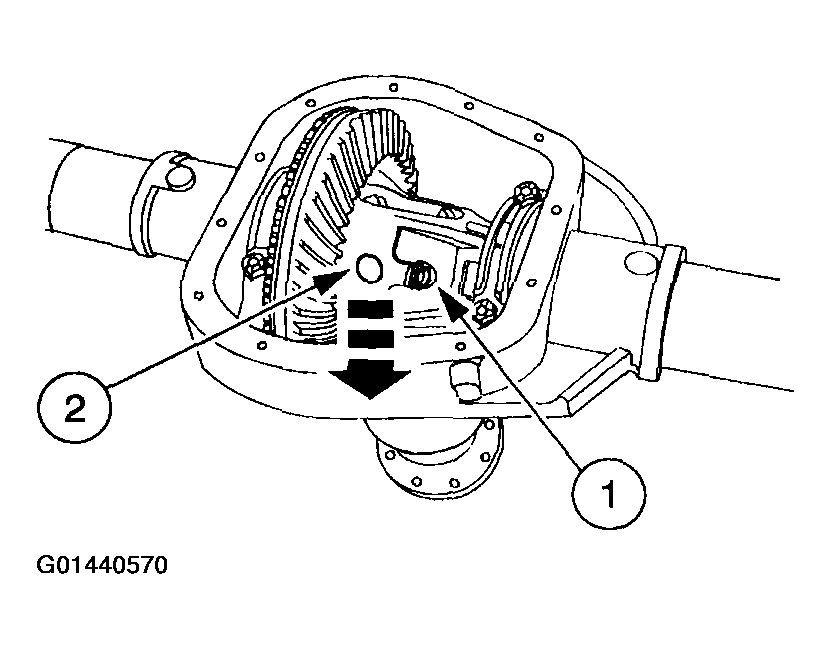

    Fig 1: Removing Differential Pinion Shaft
    G01440570Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not damage the rubber O-rings in the U-washer grooves.

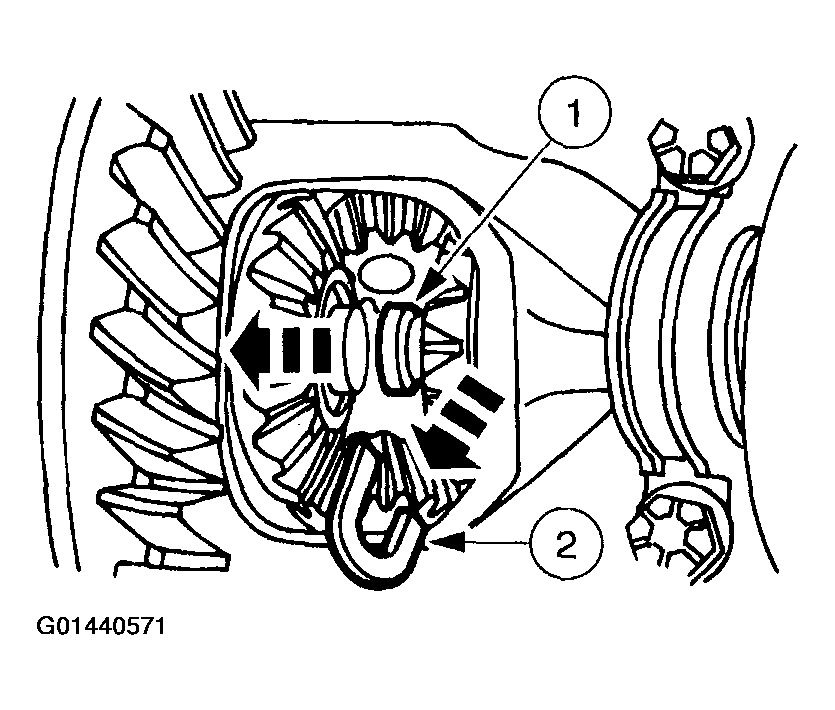

    Fig 2: Removing U-Washers
    G01440571Courtesy of FORD MOTOR CO.
  6. Remove the U-washers (4N237).
    1. Push the axle shafts (4234) inboard.
    2. Remove the U-washers.
    7. CAUTION: Do not damage the wheel bearing oil seal (1177).
  7. Remove the two axle shafts.

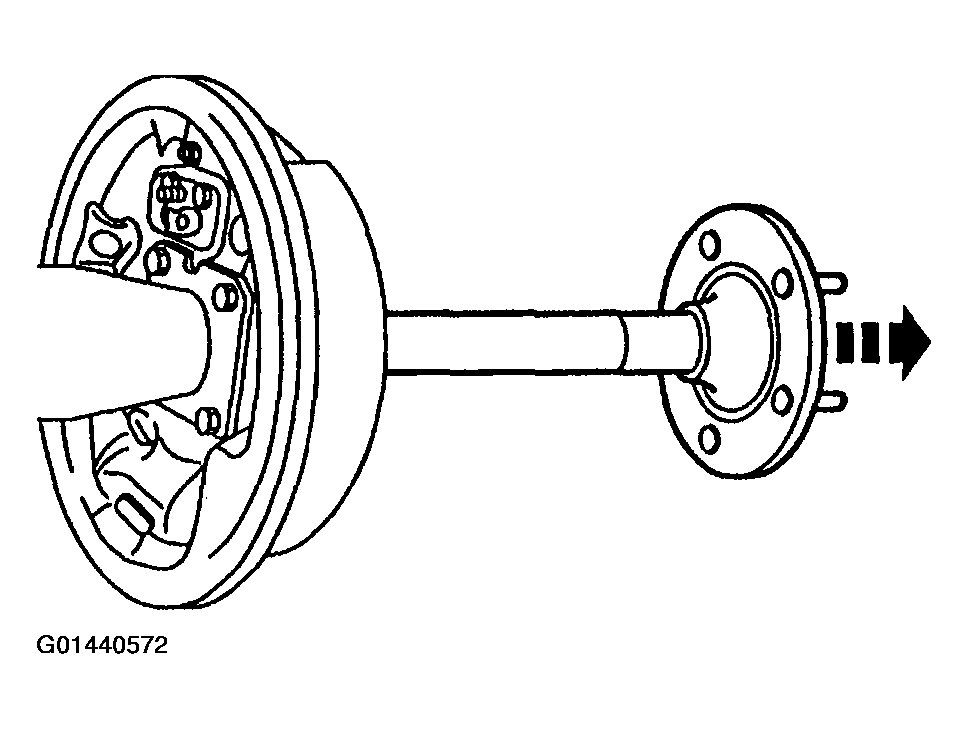

Fig 3: Removing Axle Shafts
G01440572Courtesy of FORD MOTOR CO.
