Differential Case and Ring Gear - Conventional: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the differential case (4204). For additional information, refer to DIFFERENTIAL CASE .

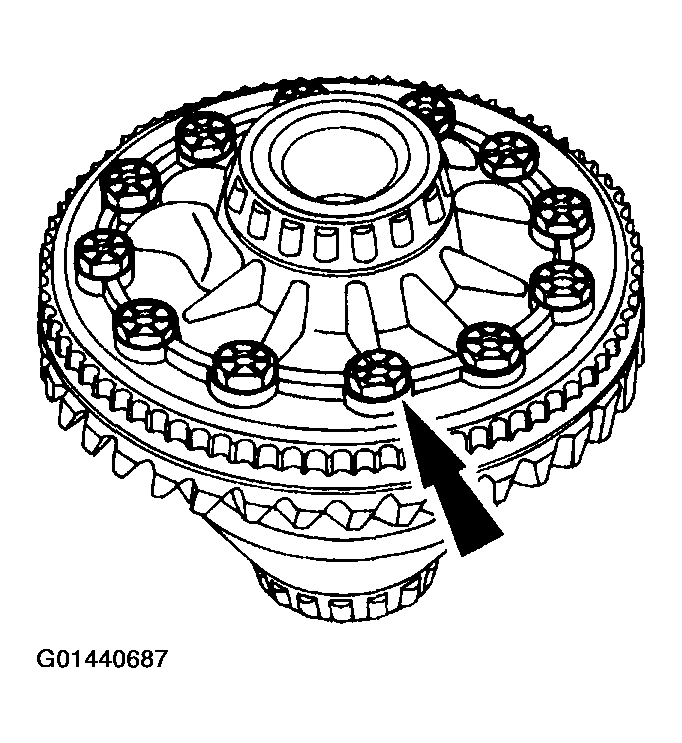

Remove the bolts.

Fig 1: Removing Ring Gear Bolt
Courtesy of FORD MOTOR CO.

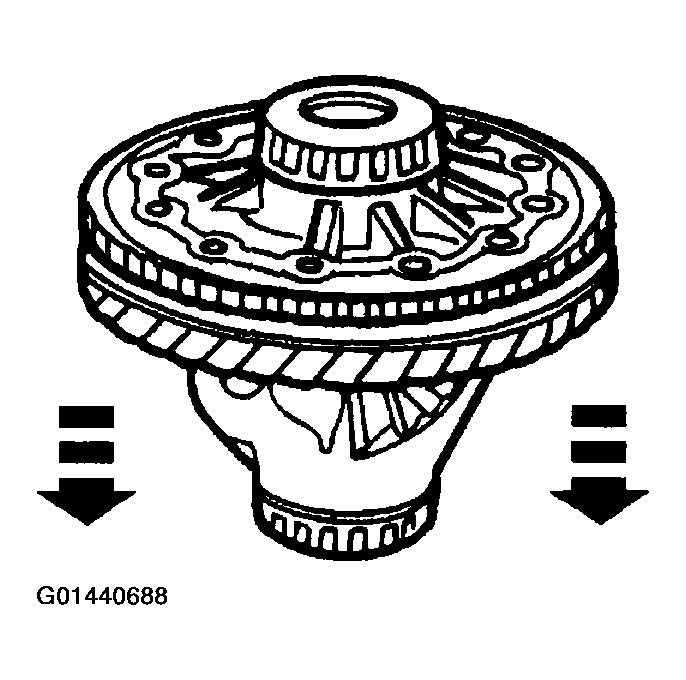

Insert a punch in the bolt holes and drive the ring gear off.

Fig 2: Removing Ring Gear
Courtesy of FORD MOTOR CO.

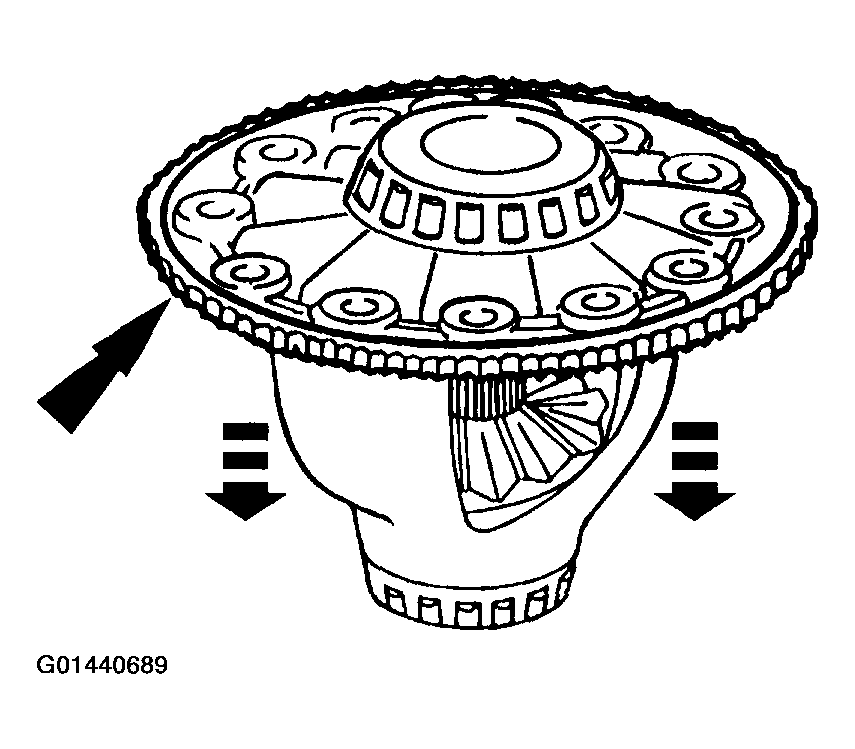

NOTE: The anti-lock speed sensor ring cannot be reused once removed.

Fig 3: Removing Anti-Lock Speed Sensor Ring

Courtesy of FORD MOTOR CO.

Remove the anti-lock speed sensor ring.

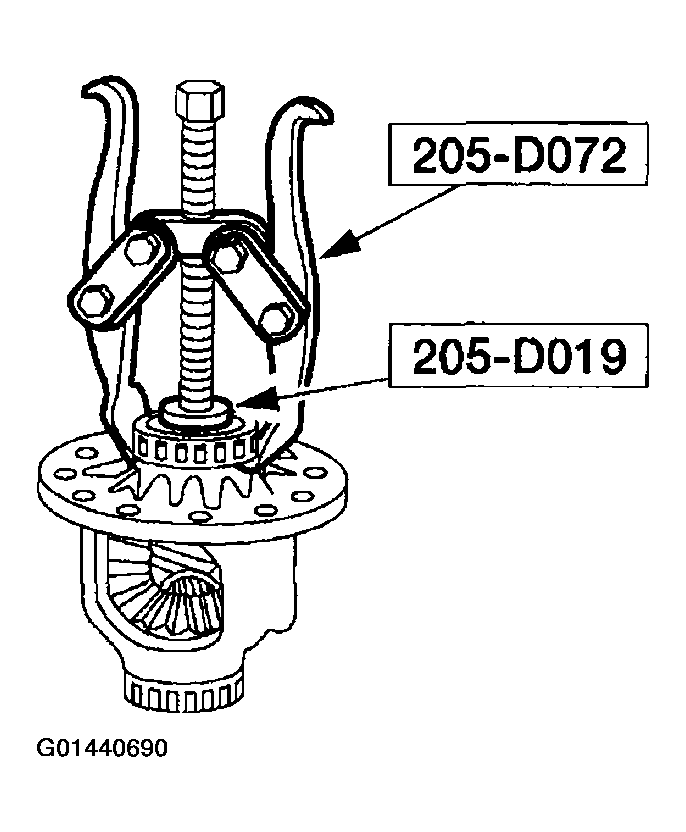

Using the special tools, remove the differential bearings (4221).

Fig 4: Removing Differential Bearings
Courtesy of FORD MOTOR CO.
Remove the differential pinion shaft lock bolt and the differential pinion shaft (4211).

Fig 5: Removing Differential Pinion Shaft Lock Bolt And The Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

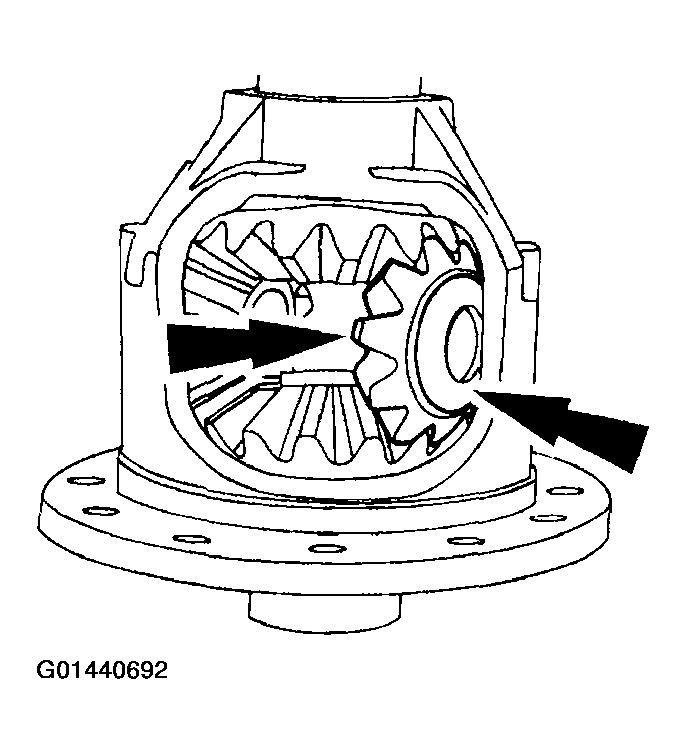

Rotate and remove the differential pinion gears and differential pinion thrust washers.

Fig 6: Removing Differential Pinion Gears And Differential Pinion Thrust Washers
Courtesy of FORD MOTOR CO.
Remove the differential side gears (4236) and the differential side gear thrust washers (4228).

Fig 7: Removing Differential Side Gears And Differential Side Gear Thrust Washers

Courtesy of FORD MOTOR CO.
