Rear Drive Axle and Differential
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Refer to DRIVELINE SYSTEM-GENERAL INFORMATION .
- The differential case, which is mounted in the rear axle housing between two opposing differential bearings (4221) that are retained in the carrier by removable bearing caps.
- Uses SAE 75W-140 High Performance Rear Axle Lubricant FITZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
- Differential bearing preload and ring gear backlash adjusted by differential bearing shims located between the differential bearing cups (4222) and the rear axle housing.
- Rear axle identification on an embossed metal tag bolted to the differential housing cover.

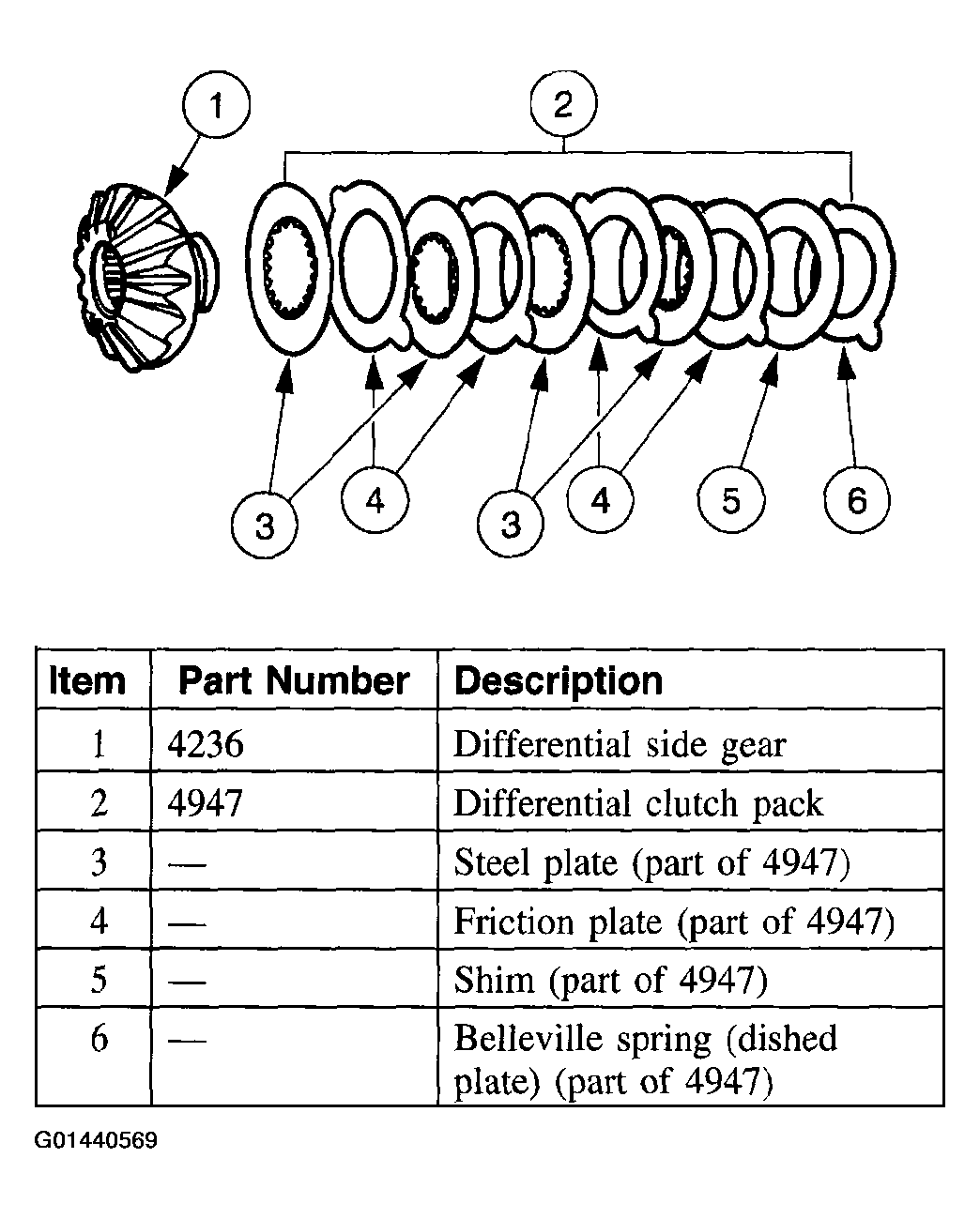

- The limited-slip differential containing a differential clutch pack arranged as shown in the illustration.
