Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

Raise and support the vehicle.
E150, E250, E350 AND E450
Remove the A/C condenser air deflector (19E667).
1. Remove the pushpin retainers.
2. Remove the A/C condenser air deflector from the frame.

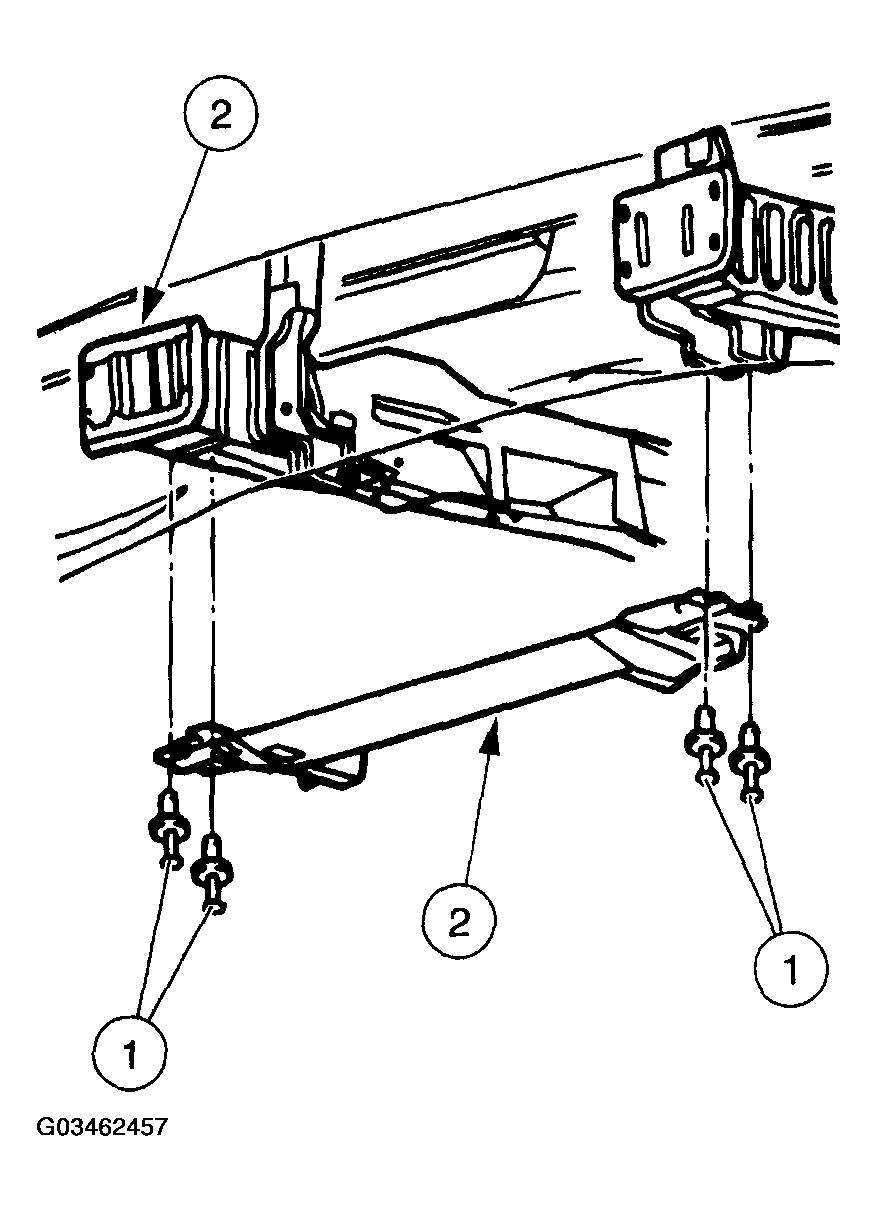

  Fig 1: Removing A/C Condenser Air Deflector From Frame
  Courtesy of FORD MOTOR CO.

  NOTE: The aid of an assistant is required to remove the front bumper.

  Remove the retaining nuts and the front bumper (17757).

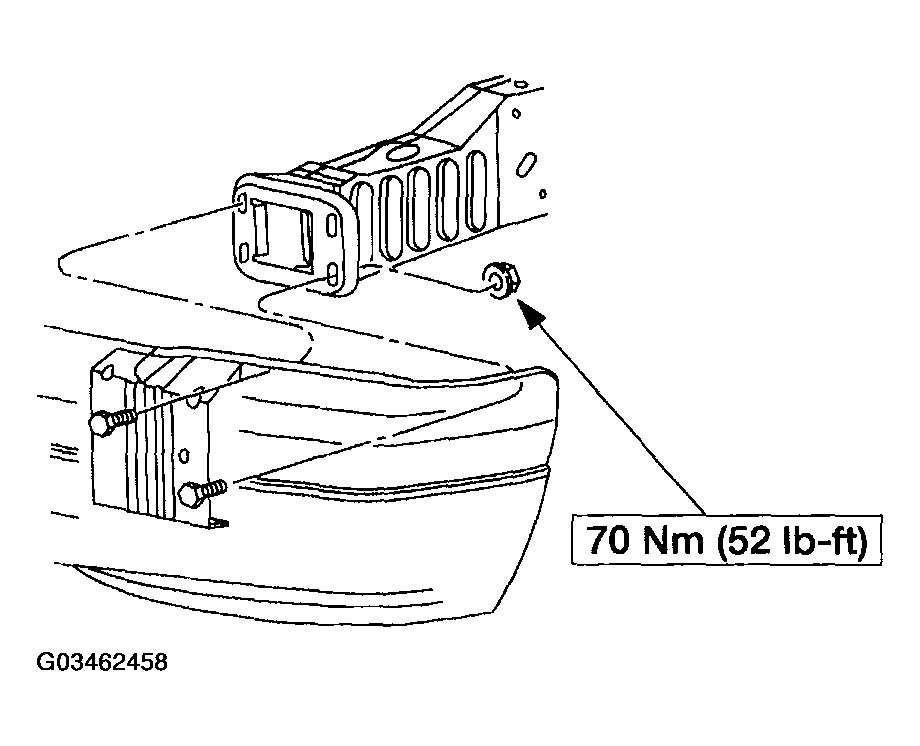

  Fig 2: Removing Retaining Nuts And Front Bumper
  Courtesy of FORD MOTOR CO.
3. Remove the retaining nuts and the front bumper.
4. To install, reverse the removal procedure.
