Valance Panel: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille supports. For additional information, refer to RADIATOR GRILLE SUPPORT  .
  2. Remove the front end valance panel retaining screws.

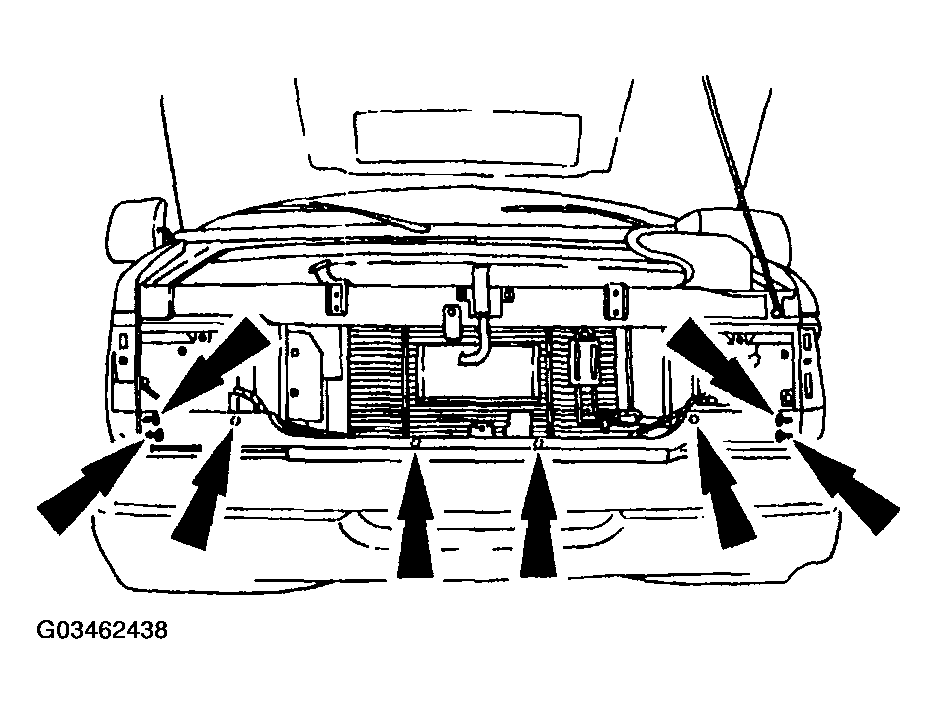

Fig 1: Removing Front End Valance Panel Retaining Screws
G03462438Courtesy of FORD MOTOR CO.
