Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the hood (16612).
Remove the headlamps. For additional information, refer to EXTERIOR LIGHTING .

NOTE: RH shown, LH similar.

Fig 1: Removing Parking Lamp Screws

Courtesy of FORD MOTOR CO.

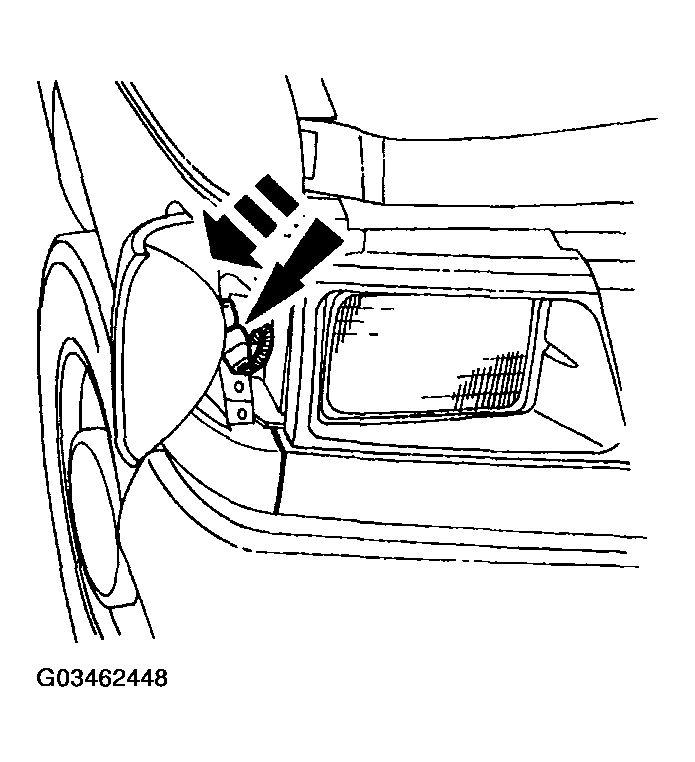

Remove the parking lamp screws.
Pull the parking lamp (13200) forward and disconnect the electrical connector.

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the radiator grille (8200).

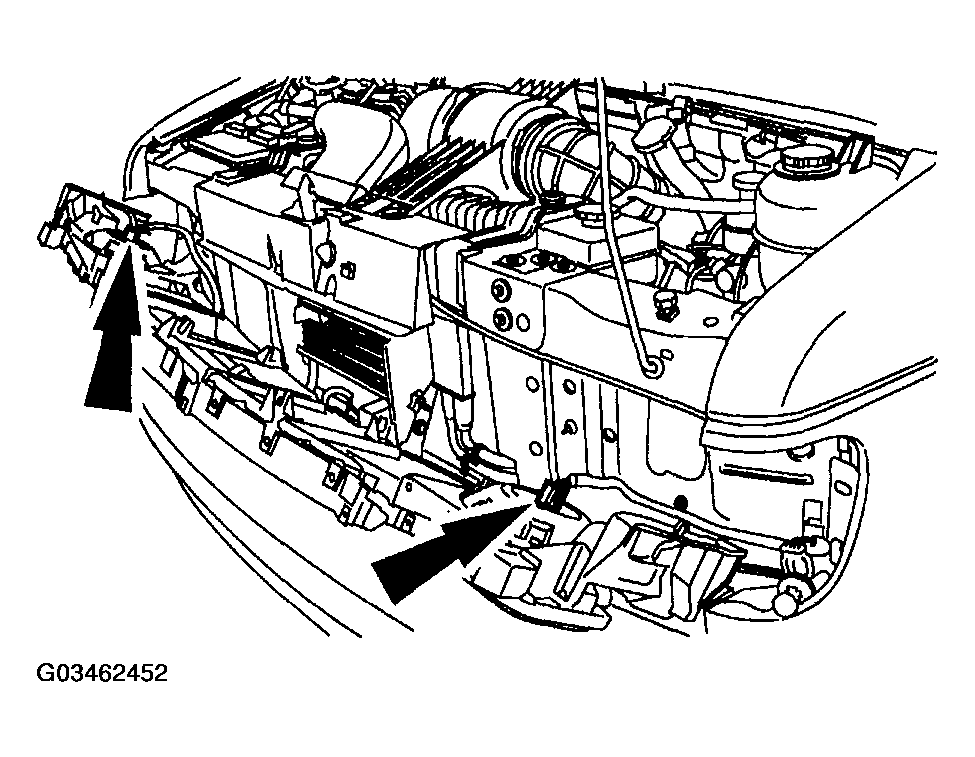

1. Remove the screws on top of the radiator grille.
2. Grasp the radiator grille by the lower crossmember and pull forward firmly to disengage the three lower clips.
3. Remove the radiator grille.
Fig 3: Removing Radiator Grille
Courtesy of FORD MOTOR CO.

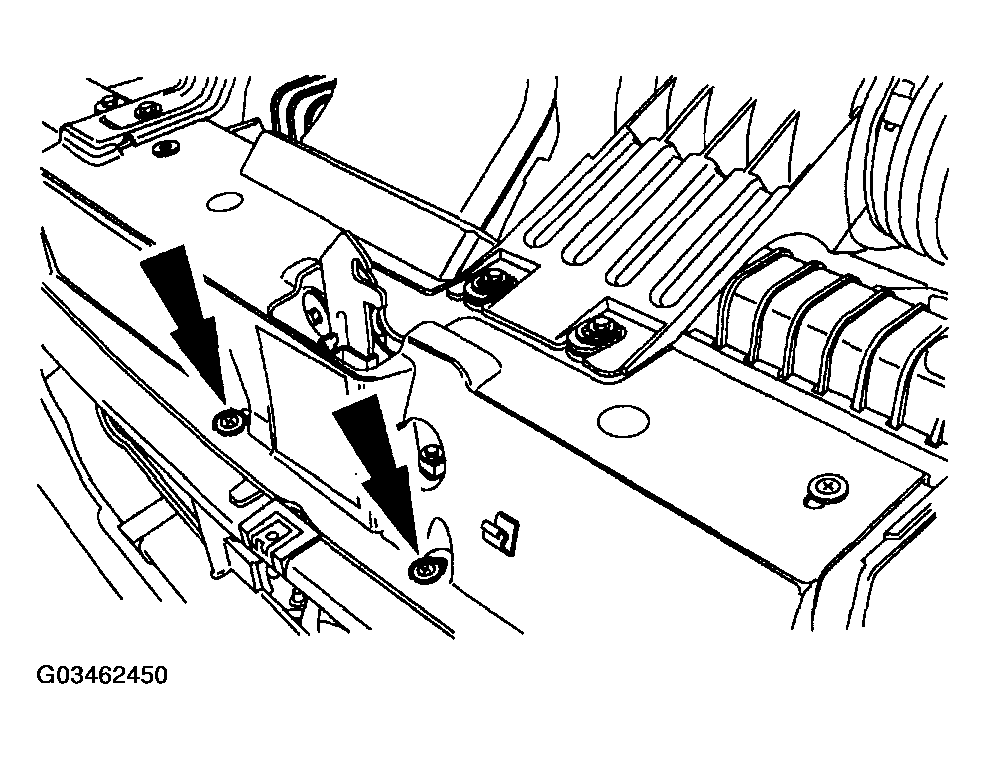

Remove the upper A/C condenser air deflector retainers.

Fig 4: Removing Upper A/C Condenser Air Deflector Retainers
Courtesy of FORD MOTOR CO.

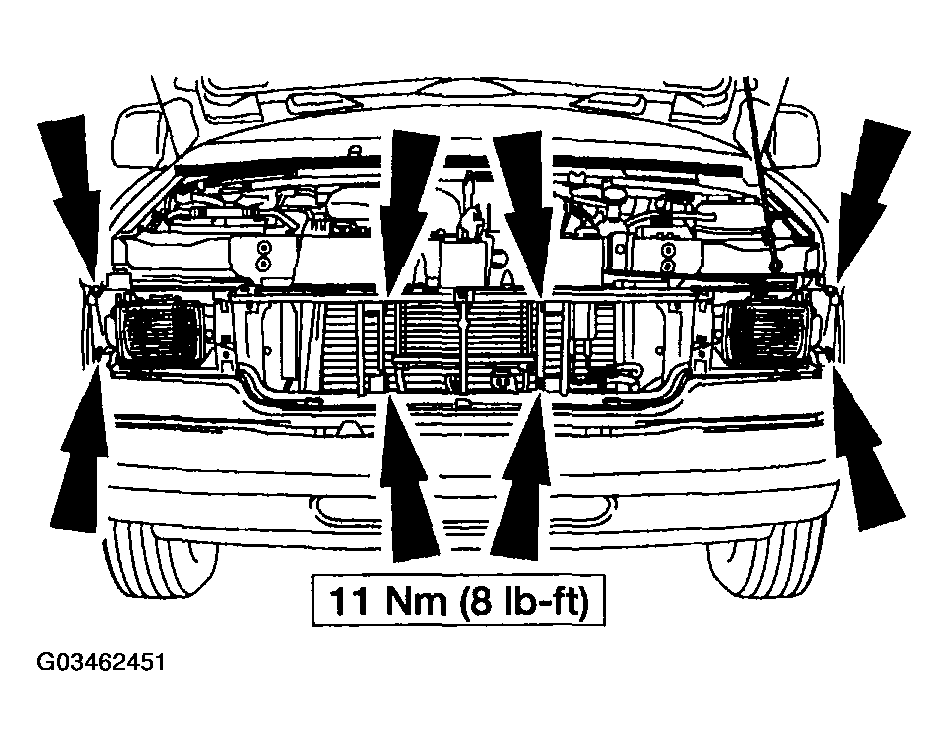

Remove the radiator grille opening panel reinforcement screws.

Fig 5: Removing Radiator Grille Opening Panel Reinforcement Screws
Courtesy of FORD MOTOR CO.
Remove the grille opening panel reinforcement (8A284).
- Disconnect the headlamp connectors.
Fig 6: Disconnecting Headlamp Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
