Fender - Front: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the removal procedure in reverse order.

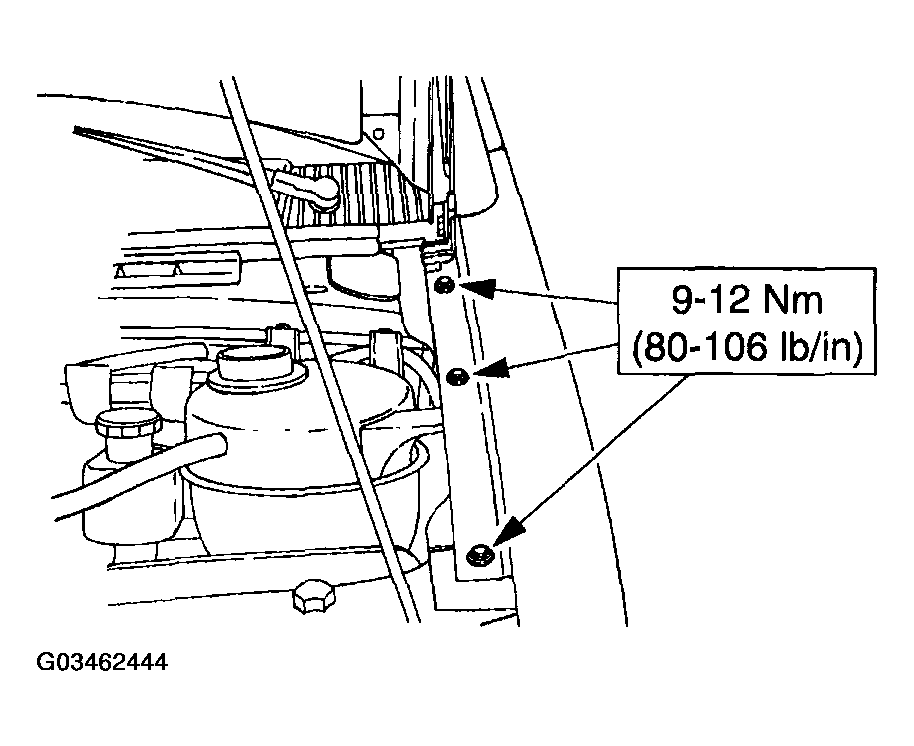

    Fig 1: Installing Front Fender-To-Fender Upper Apron Retaining Screws
    G03462444Courtesy of FORD MOTOR CO.

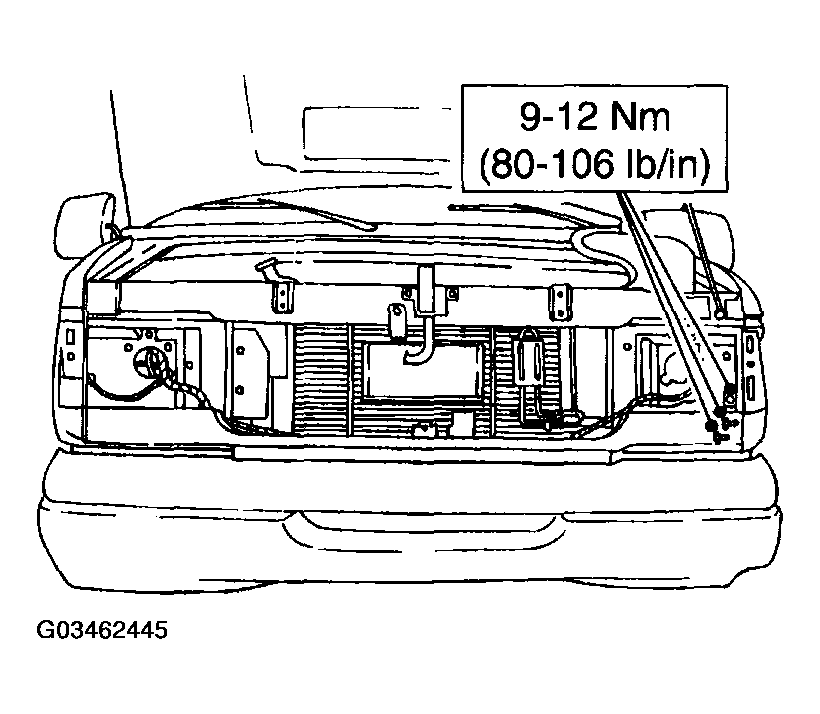

    Fig 2: Installing Front Fender-To-Radiator Support Retaining Screw
    G03462445Courtesy of FORD MOTOR CO.

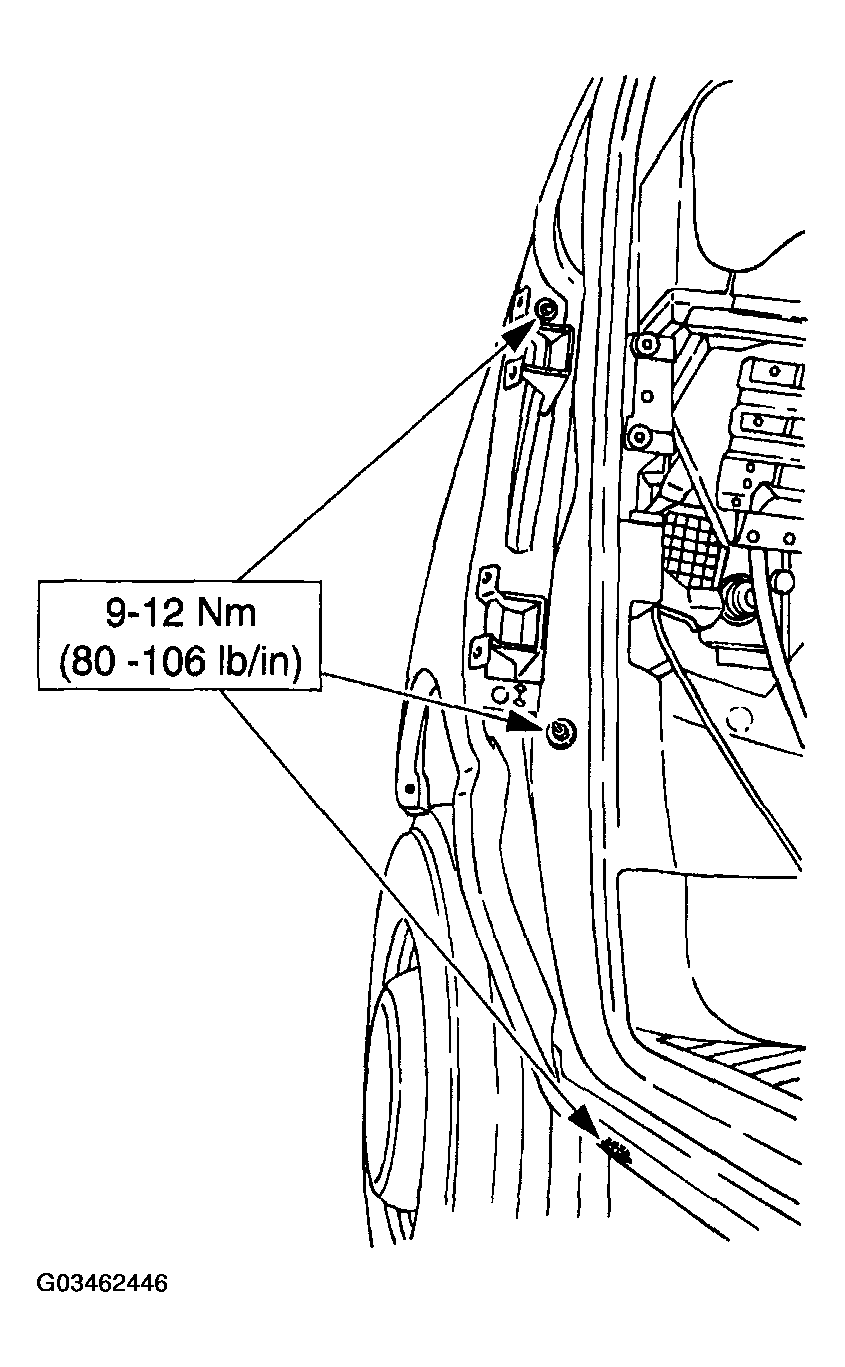

    Fig 3: Installing Fender-To-Cowl Side Brackets Retaining Bolts
    G03462446Courtesy of FORD MOTOR CO.
