Front End Body Panels

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

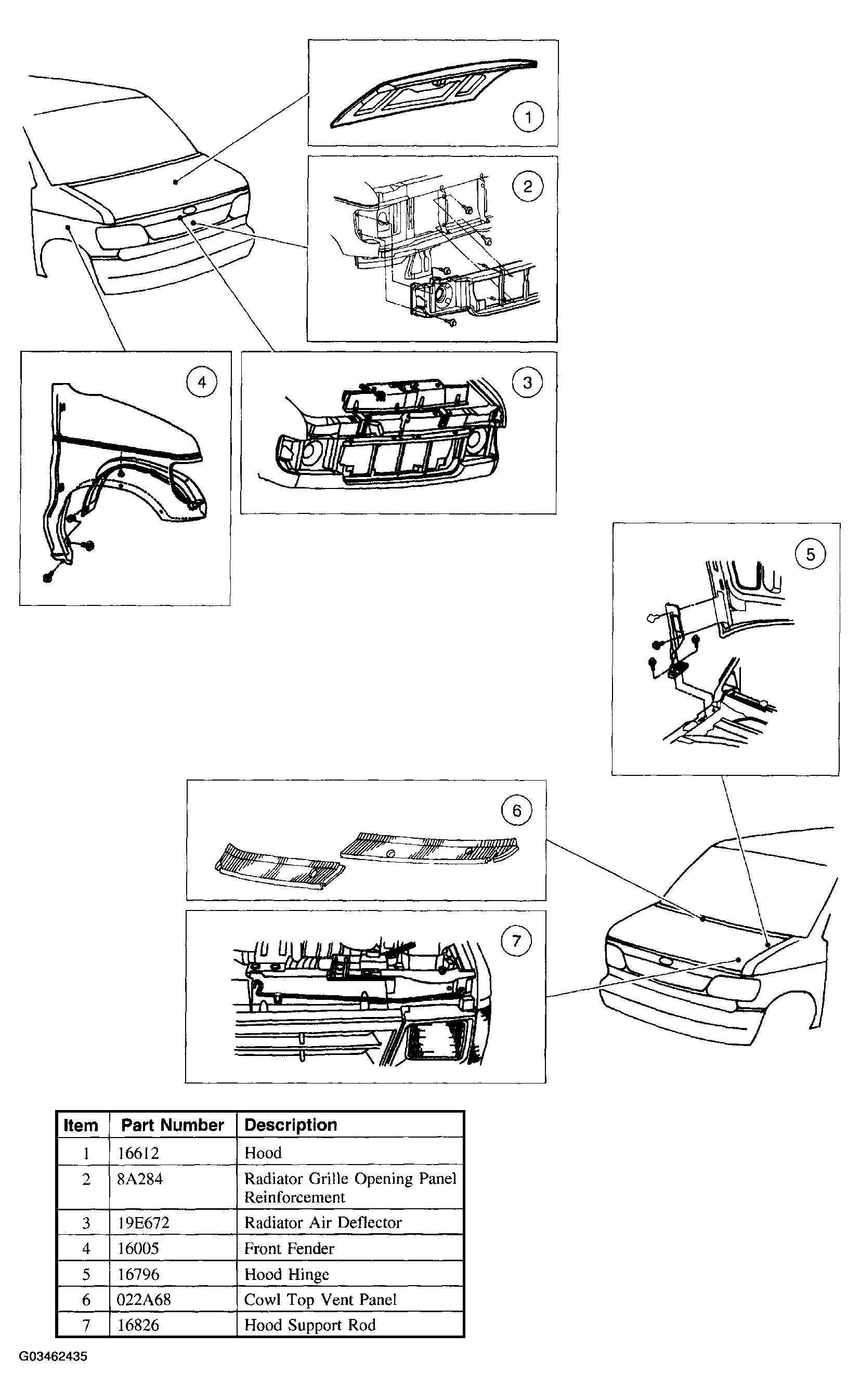

Fig 1: Identifying Front End Body Panels

Courtesy of FORD MOTOR CO.

DESCRIPTION CHART

Item	Part Number	Description
1	16612	Hood
2	8A284	Radiator Grille Opening Panel Reinforcement
3	19E672	Radiator Air Deflector
4	16005	Front Fender
5	16796	Hood Hinge
6	022A68	Cowl Top Vent Panel
7	16826	Hood Support Rod
