Lamp Switch - Headlamp: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable; refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the instrument panel finish panel; refer to INSTRUMENT PANEL AND CONSOLE .
  3. Remove the headlamp switch bolts.

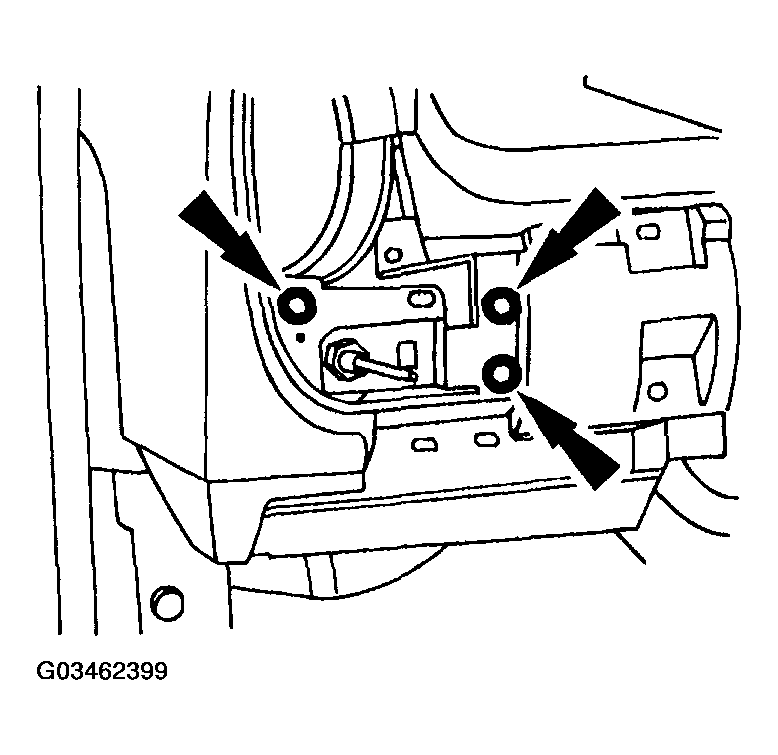

    Fig 1: Removing Headlamp Switch Bolts
    G03462399Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connector and remove the headlamp switch (11654).
