Lamp Switch - Brake Pedal Position: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable; refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the brake pedal position (BPP) switch electrical connector.
    Fig 1: Disconnecting Brake Pedal Position (BPP) Switch Electrical Connector
    G03462400Courtesy of FORD MOTOR CO.
  3. Remove the BPP switch.
    1. Remove the self-locking pin.
    2. Remove the brake master cylinder push rod spacer (2B129).
    3. Remove the BPP switch from the brake master cylinder push rod.
    4. Remove the brake master cylinder push rod bushing (2474).
    5. Remove the brake master cylinder push rod spacer.

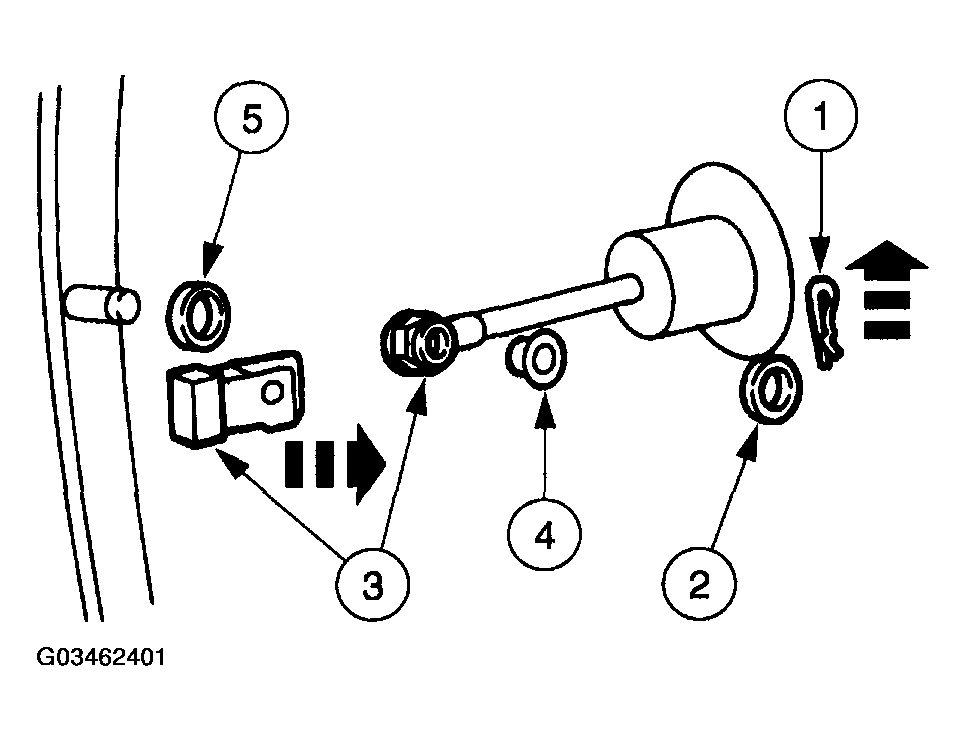

    Fig 2: Removing Brake Master Cylinder Push Rod Spacer
    G03462401Courtesy of FORD MOTOR CO.
