Lamp Assembly - Tail Lamp: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH shown; LH similar.
  1. Remove the rear lamp screws.

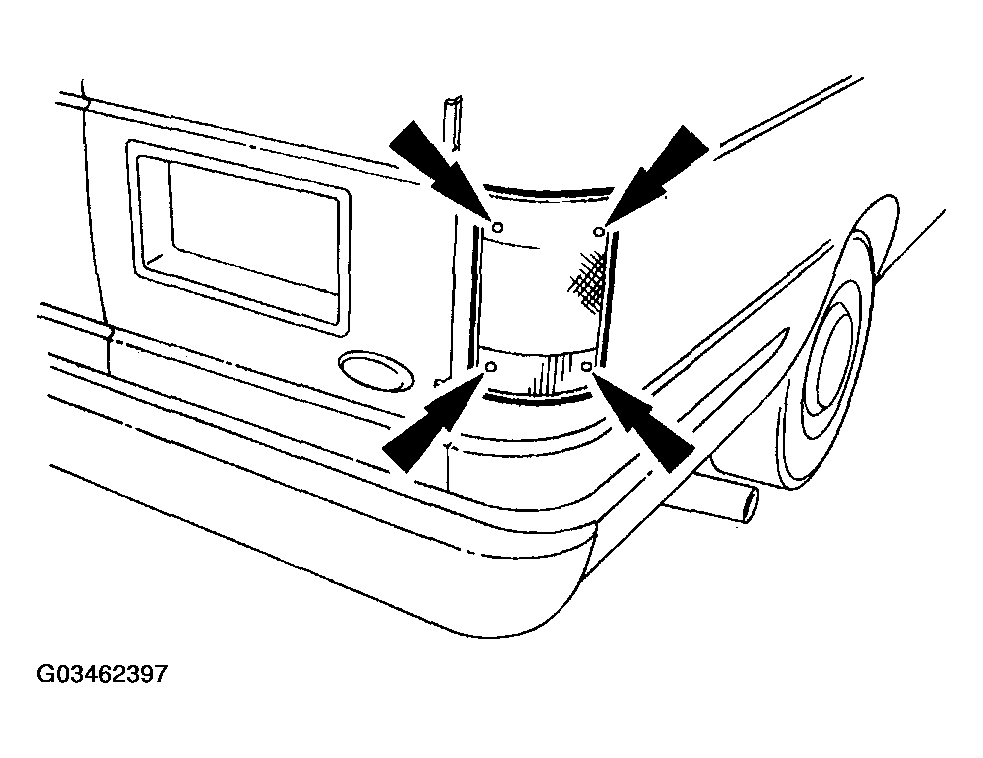

    Fig 1: Removing Rear Lamp Screws
    G03462397Courtesy of FORD MOTOR CO.
  2. Pull the rear lamp (13404) forward.
    Fig 2: Pulling Rear Lamp Forward
    G03462398Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.
