Lamp Assembly - Rear Hi-Mount, with Attached Cargo Lamp: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear hi-mount lamp screws.

Fig 1: Removing Rear Hi-Mount Lamp Screws
Courtesy of FORD MOTOR CO.
Remove the screws retaining the lens to the interior lamp door (13788) (cargo lamp).

Fig 2: Removing Screws Retaining Lens To Interior Lamp Door
Courtesy of FORD MOTOR CO.
Remove the interior lamp door (cargo lamp) screws.

Fig 3: Removing Interior Lamp Door (Cargo Lamp) Screws
Courtesy of FORD MOTOR CO.

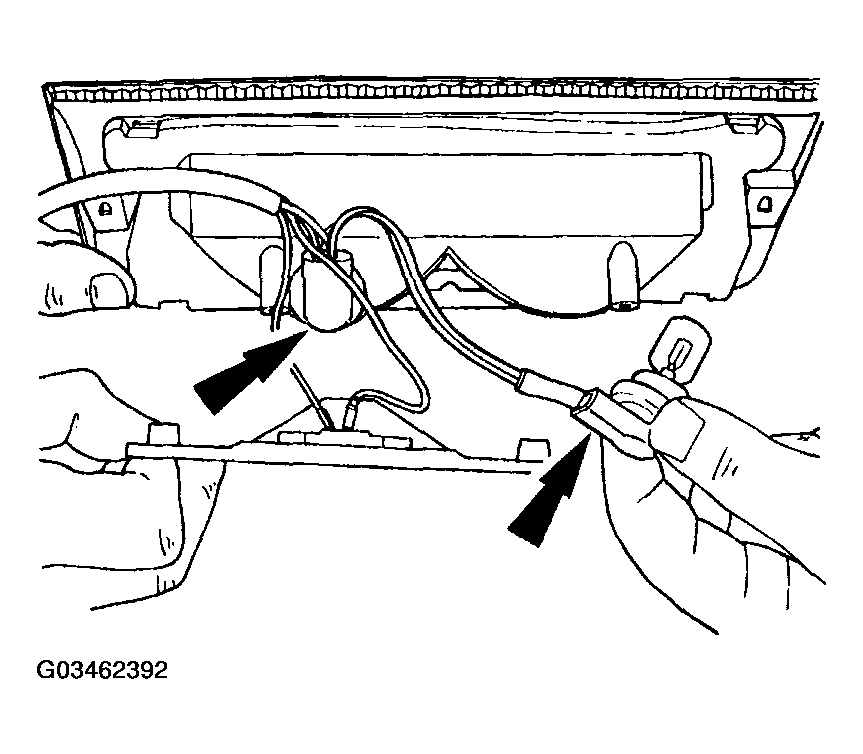

Remove the two bulb sockets and remove the rear hi-mount lamp assembly.

Fig 4: Removing Two Bulb Sockets And Removing Rear Hi-Mount Lamp Assembly

Courtesy of FORD MOTOR CO.
