Lamp Assembly - Headlamp, Low Series: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown; LH similar.

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

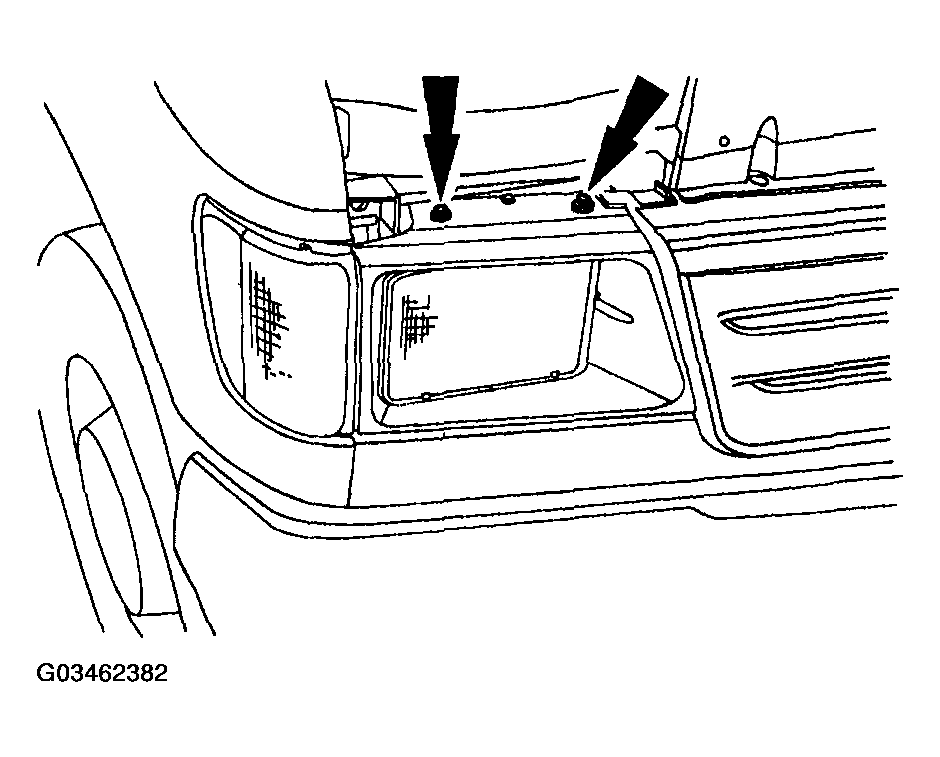

Fig 1: Removing Headlamp Door Screws

Courtesy of FORD MOTOR CO.

Remove the headlamp door screws and remove the headlamp door.
Remove the screws and remove the retaining ring.

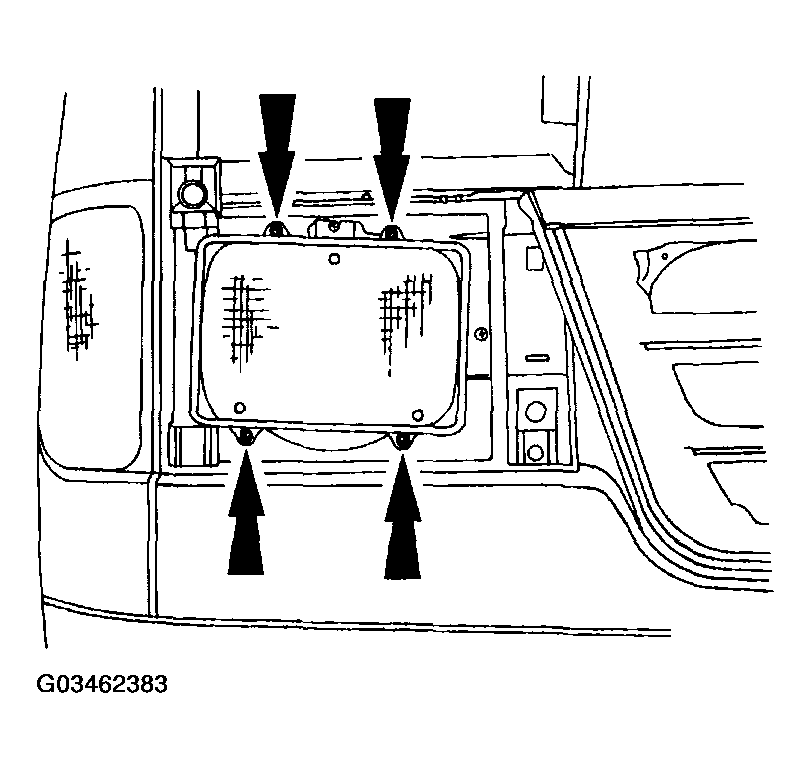

Fig 2: Removing Retaining Ring
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the headlamp.

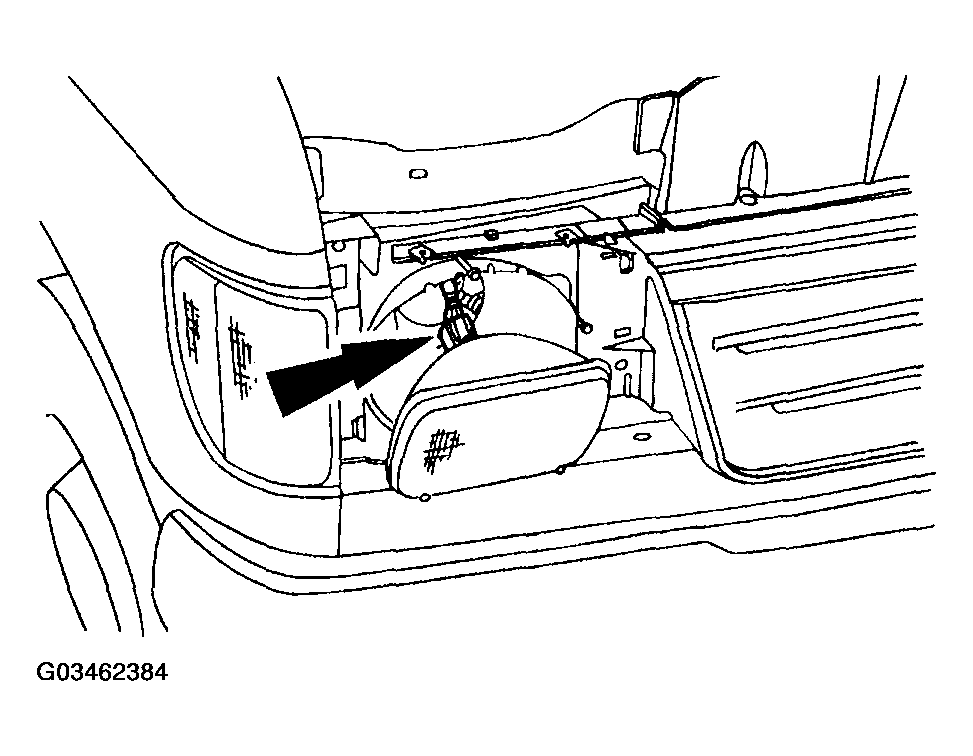

Fig 3: Disconnecting Electrical Connector

Courtesy of FORD MOTOR CO.
