Lamp Assembly - Headlamp, Aerodynamic: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown; LH similar.

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

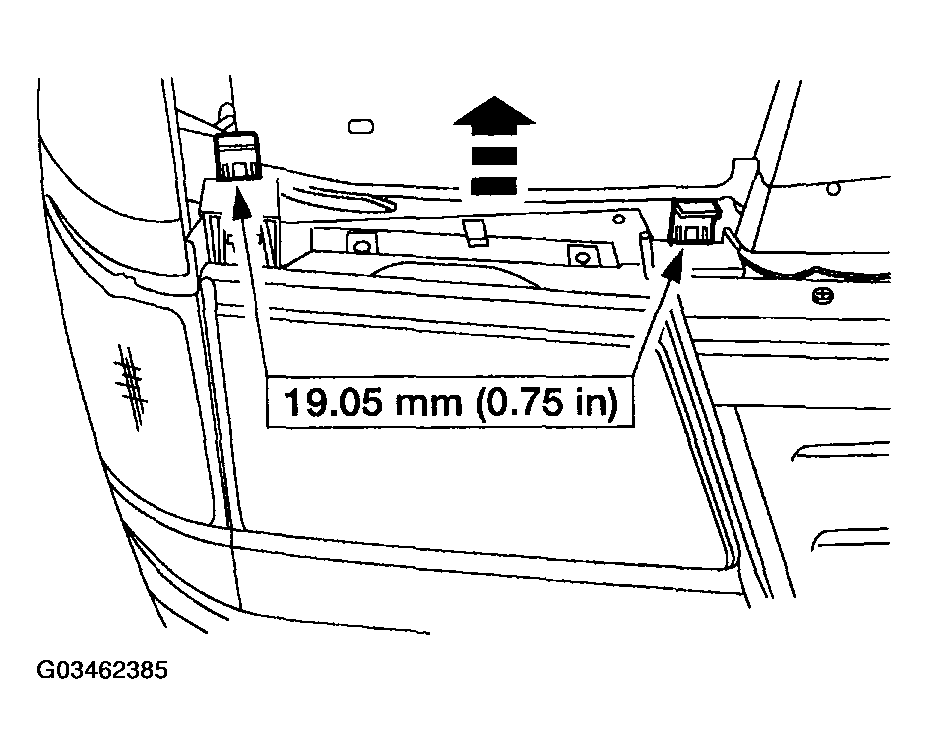

Fig 1: Pulling Up On Headlamp Mounting Clips

Courtesy of FORD MOTOR CO.

Pull up on the headlamp mounting clips to release the headlamp.
Remove the headlamp assembly.
1. Pull the headlamp assembly forward.
2. Disconnect the electrical connector.

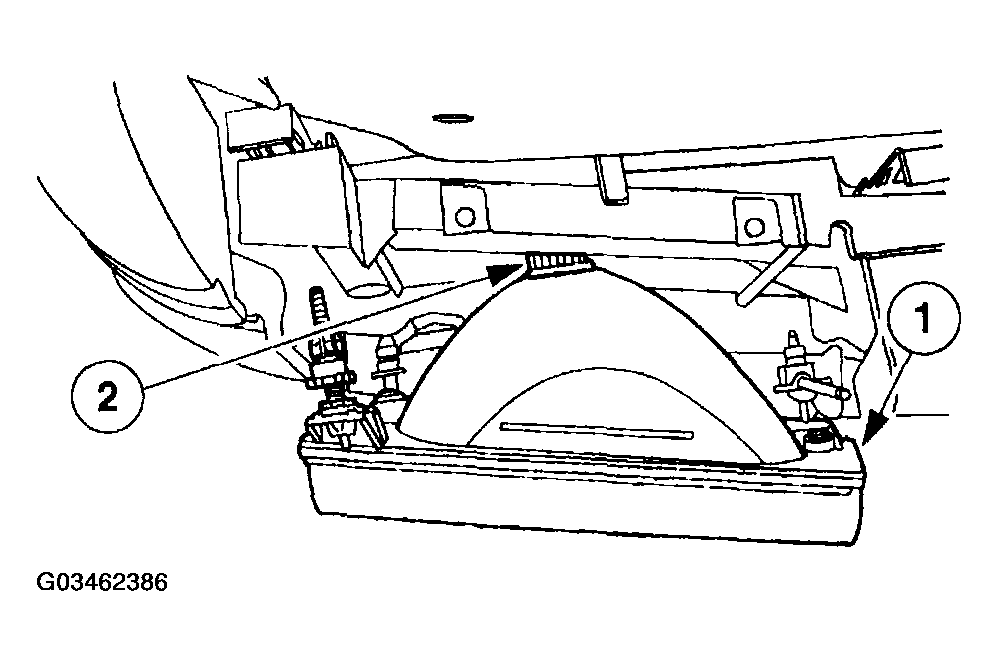

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
