Pinpoint Test A: Both Headlamps Are Inoperative

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

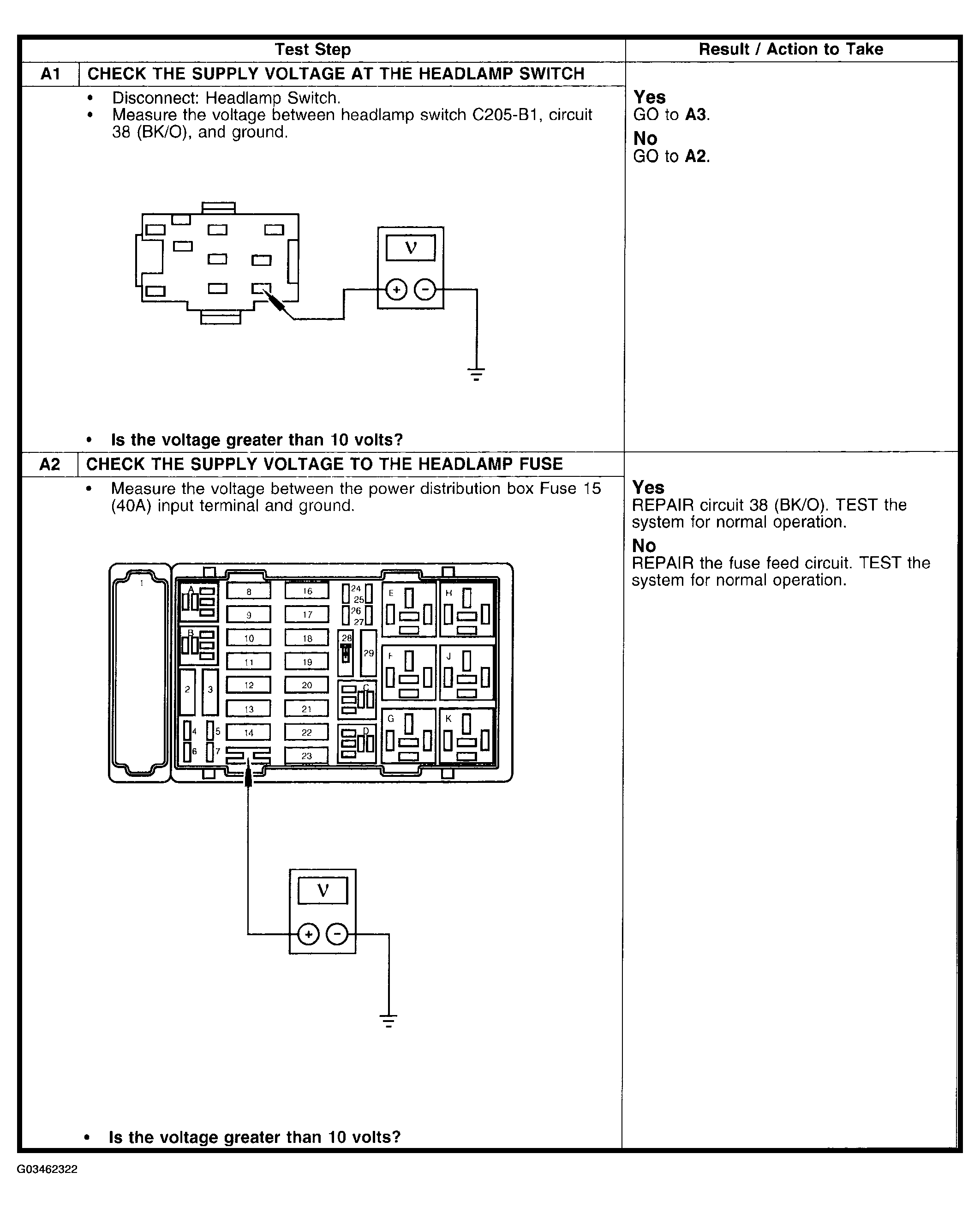

Fig 1: Pinpoint Test A: Both Headlamps Are Inoperative (A1-A2)
G03462322Courtesy of FORD MOTOR CO.

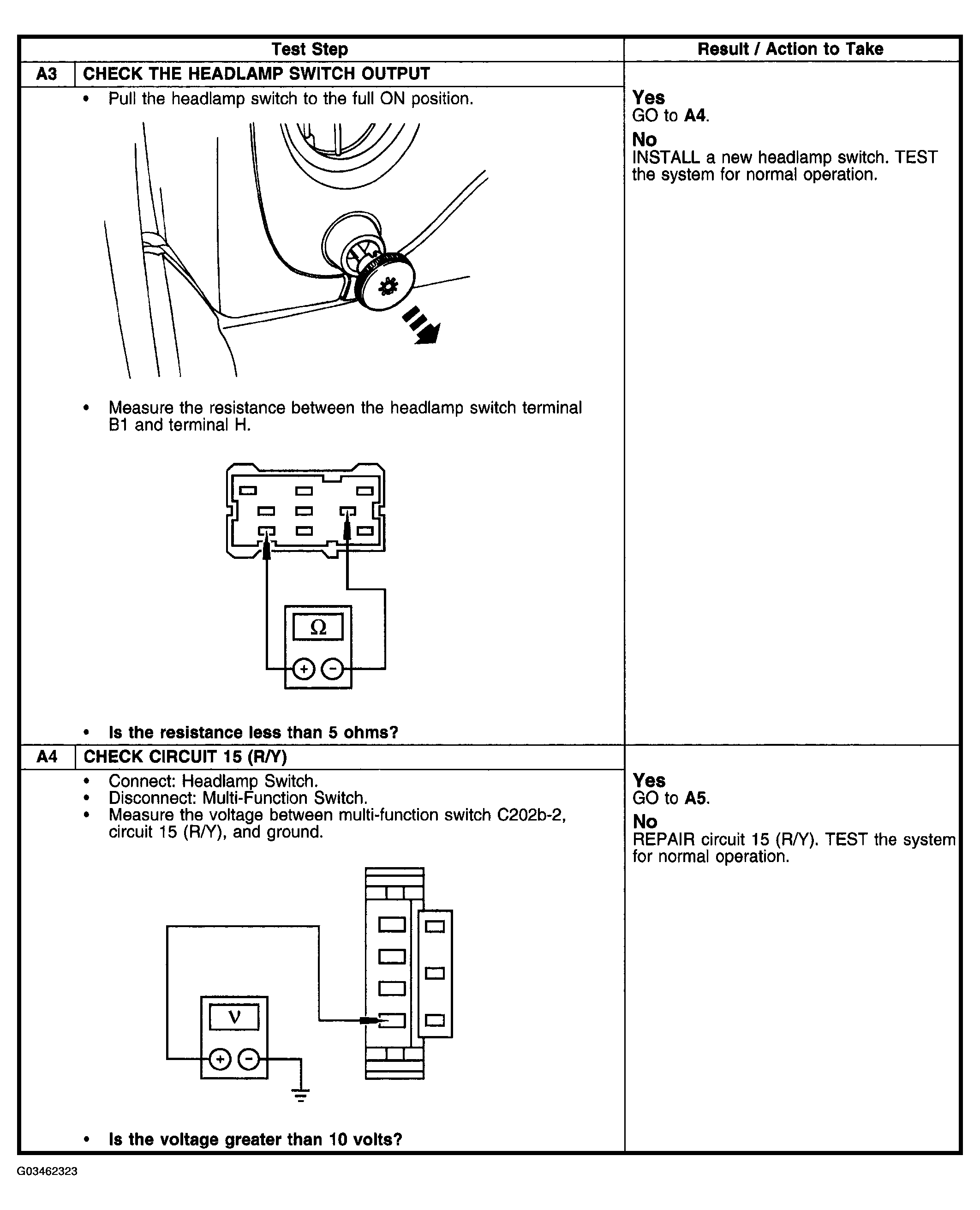

Fig 2: Pinpoint Test A: Both Headlamps Are Inoperative (A3-A4)
G03462323Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test A: Both Headlamps Are Inoperative (A5-A7)
G03462324Courtesy of FORD MOTOR CO.
Fig 4: Pinpoint Test A: Both Headlamps Are Inoperative (A8)
G03462325Courtesy of FORD MOTOR CO.
