Piston - Ring-to-Groove Clearance

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the piston for ring land damage or accelerated wear.
    Fig 1: Inspecting Piston For Ring Land Damage Or Accelerated Wear
    G03462010Courtesy of FORD MOTOR CO.
  2. Measure the piston ring-to-groove clearance.
    • Refer to SPECIFICATIONS in the appropriate ENGINE article.
    • If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.

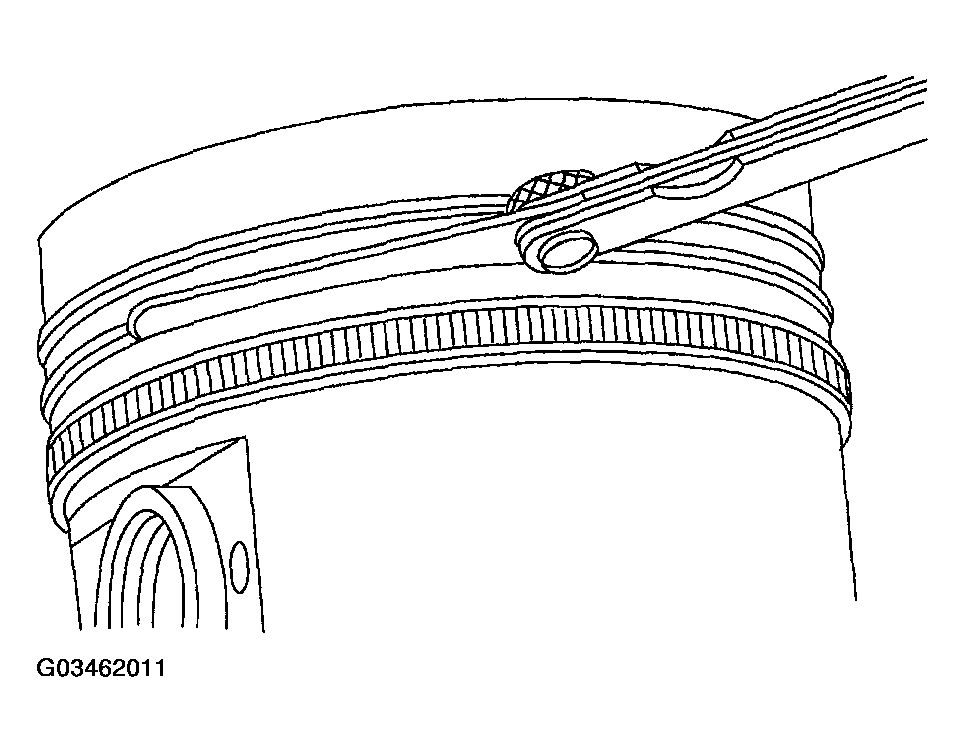

    Fig 2: Measuring Piston Ring-To-Groove Clearance
    G03462011Courtesy of FORD MOTOR CO.
