Special Tool(s)
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

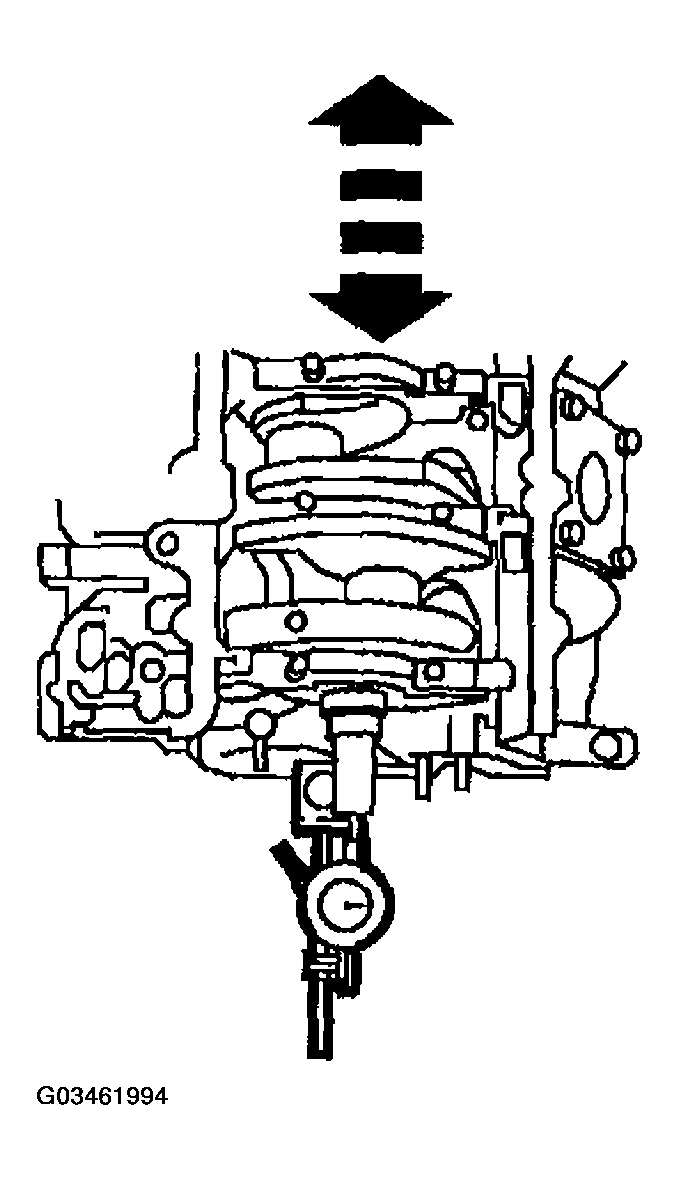

- Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
- Position the crankshaft to the rear of the cylinder block.
- Zero the indicator.
- Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- If crankshaft end play exceeds specifications, install a new crankshaft thrust washer (6334) or crankshaft thrust main bearing (6337). Refer to SPECIFICATIONS in the appropriate ENGINE article.
