Camshaft Journal - Clearance, Push Rod Engines, Micrometer Method

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.

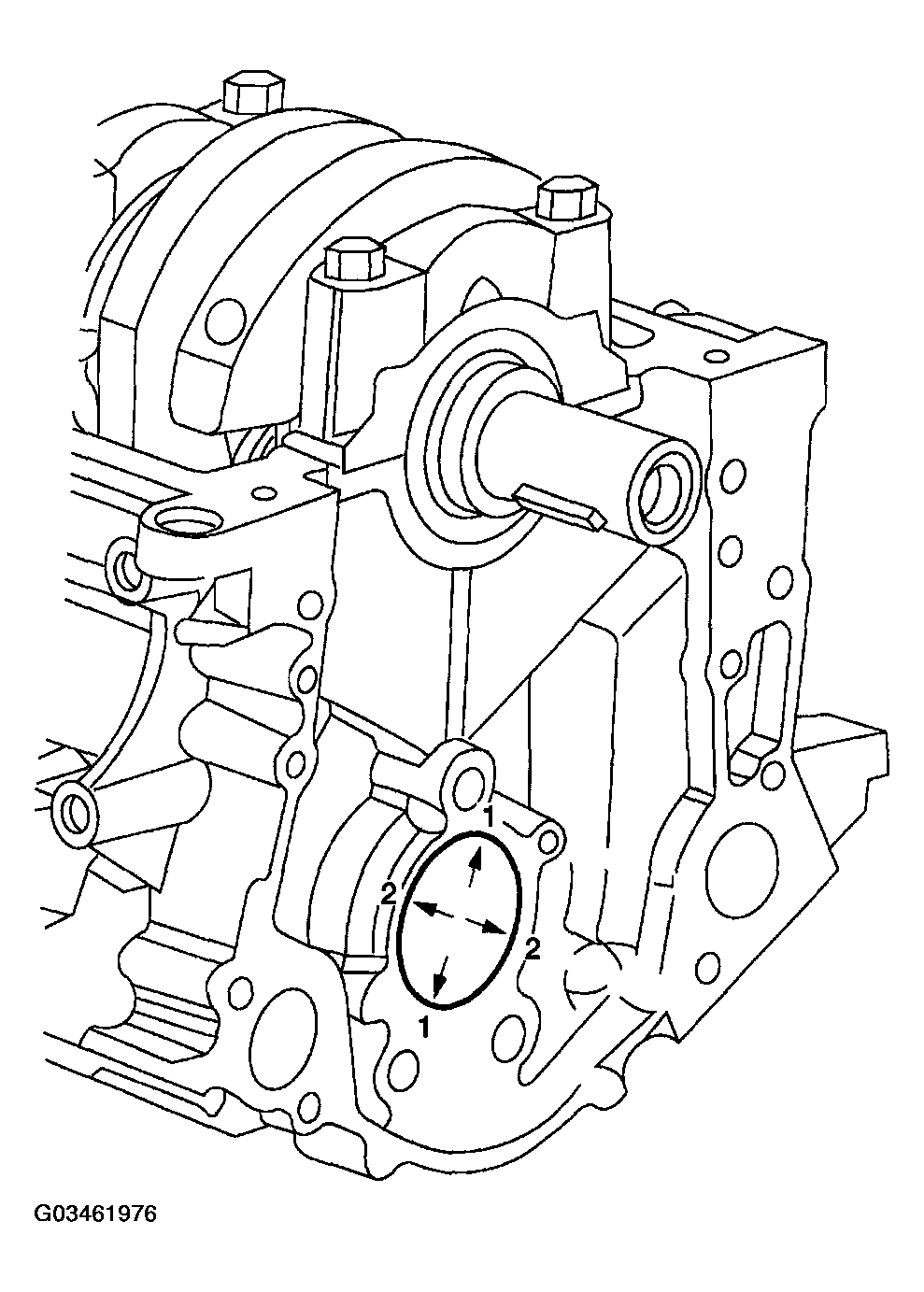

    Fig 1: Measuring Each Camshaft Bearing (6261) In Two Directions
    G03461976Courtesy of FORD MOTOR CO.
  1. Measure each camshaft bearing (6261) in two directions.
    • Subtract the camshaft journal diameter from the camshaft bearing diameter.
