Special Tool(s)

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Service Tool

Courtesy of FORD MOTOR CO.

NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.

Remove the camshaft bearing cap and lay Plastigage across the surface. Refer to IN-VEHICLE REPAIR in the appropriate ENGINE article for the procedure.

NOTE: Do not turn the camshaft while carrying out this procedure.

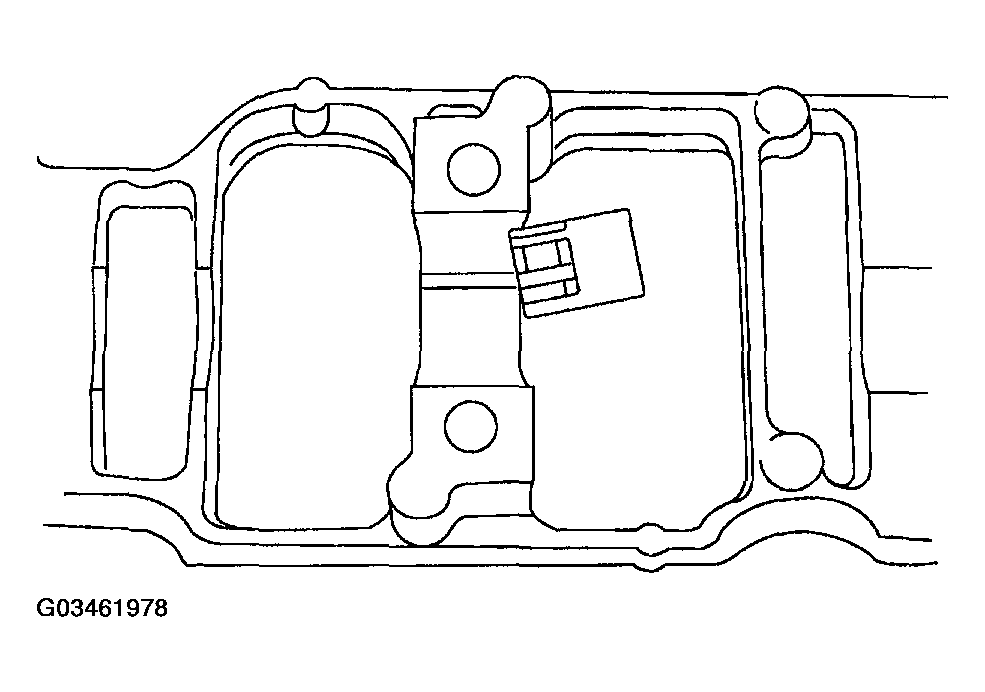

Fig 2: Positioning Camshaft Bearing Cap

Courtesy of FORD MOTOR CO.

Position the camshaft bearing cap and install the bolts. Refer to IN-VEHICLE REPAIR in the appropriate ENGINE article for the procedure.
Use Plastigage to verify the camshaft journal clearance.
- If out of specification, install new components as necessary. Refer to IN-VEHICLE REPAIR in the appropriate ENGINE article for the procedure.
