Four Wheel Anti-Lock Brake System (4WABS) Hydraulic Control Unit (HCU)
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure only needs to be carried out if a new 4-wheel anti-lock brake (4WABS) hydraulic control unit (HCU) has been installed or if the HCU lines have been opened.
- Clean all dirt from and remove the brake master cylinder filler cap. Fill the brake master cylinder reservoir with the specified brake fluid.

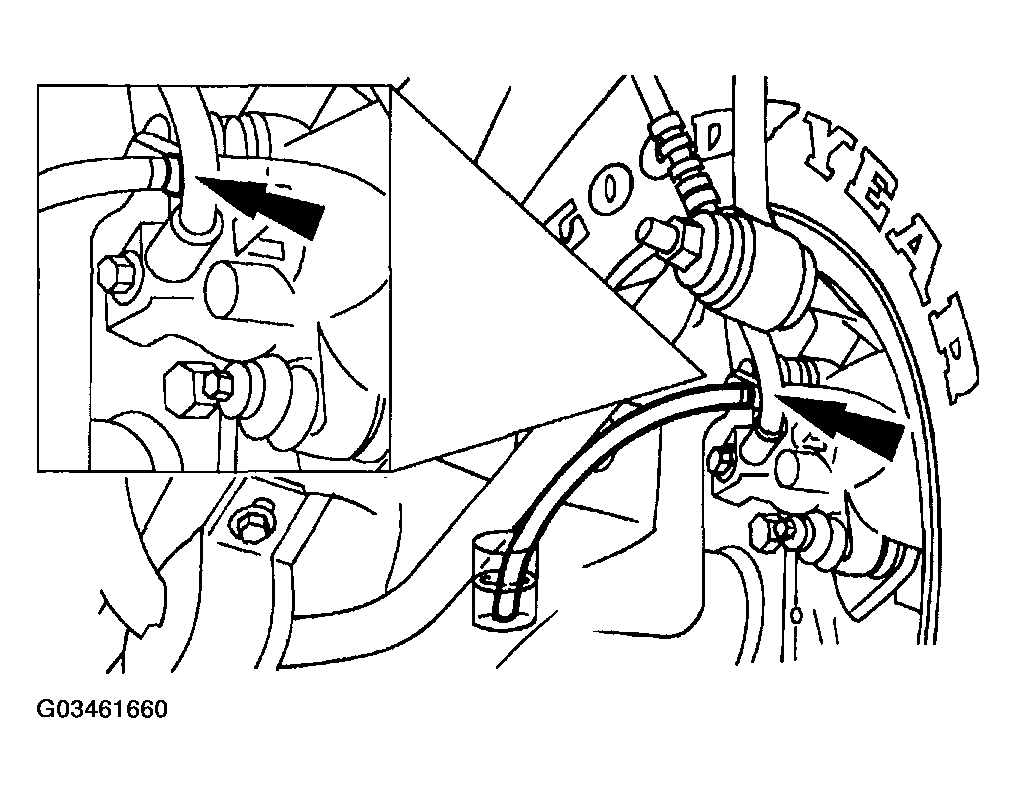

- Connect a clear waste line to the RH rear bleeder screw and submerge the other end in a container partially filled with the recommended brake fluid.

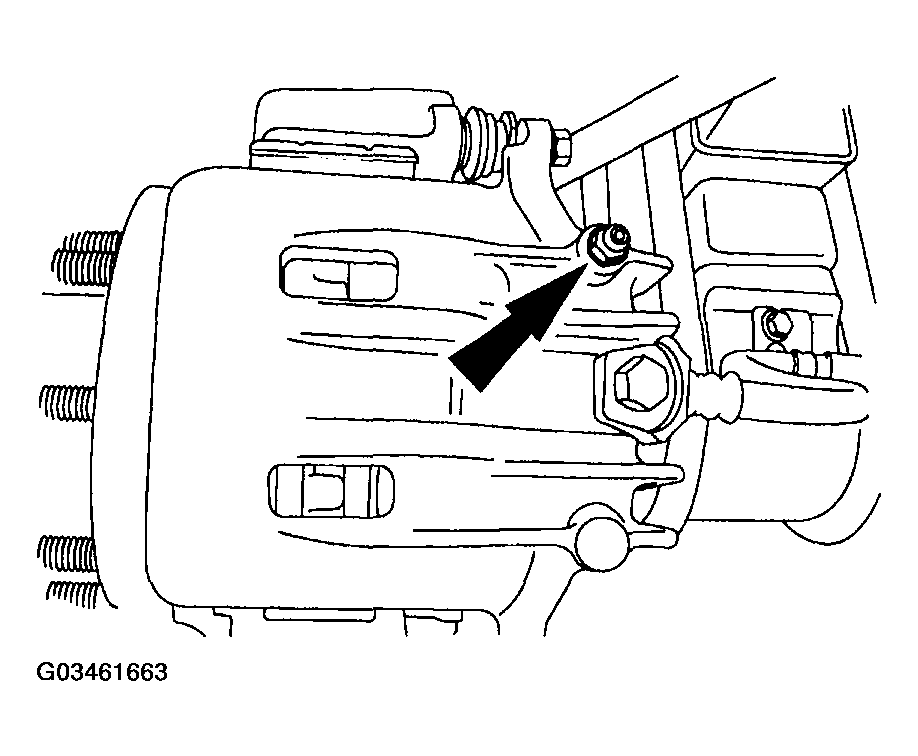

- Loosen the RH rear bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal, tighten the RH rear bleeder screw.
- Repeat until clear, bubble-free fluid comes out.
- Refill the brake master cylinder reservoir as necessary.

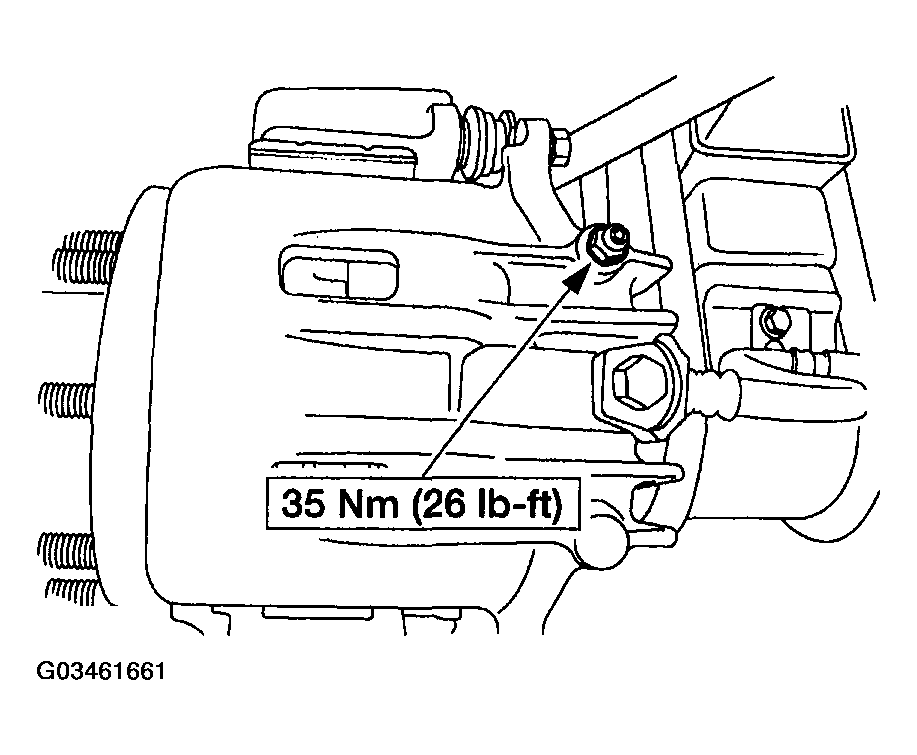

- Tighten the rear bleeder screw, and disconnect the waste line.

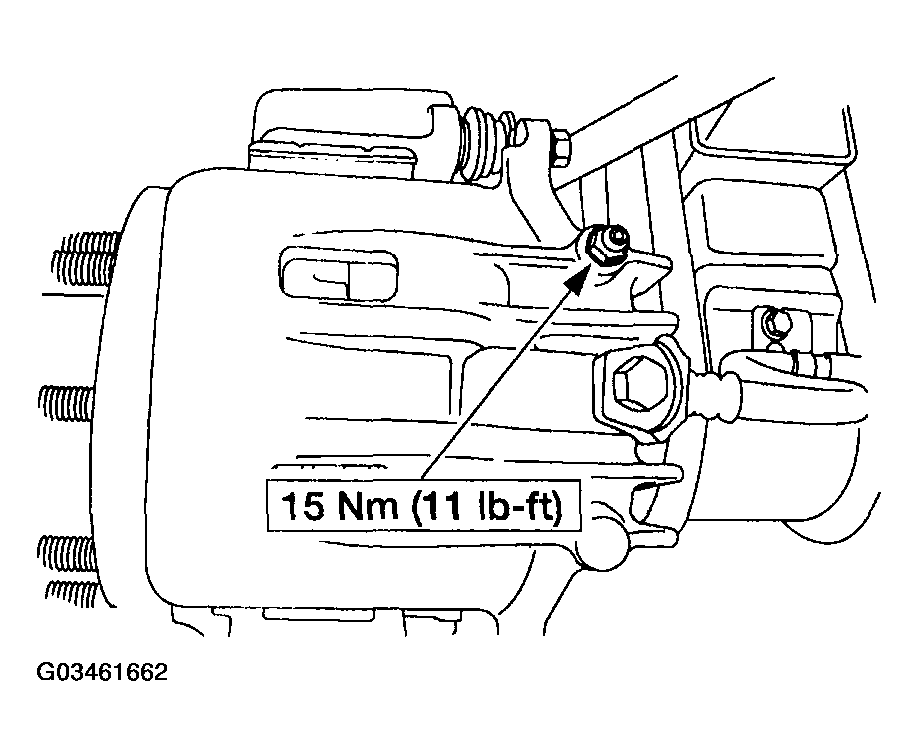

- Tighten the front bleeder screw.
- Repeat Steps 2 , 3 and 4 for the LH rear bleeder screw, the RH front disc brake caliper bleeder screw, and the LH front disc brake caliper bleeder screw, in that order.
- Connect the scan tool DCL cable adapter into the vehicle data link connector (DLC) under the dash, and follow the scan tool instructions
- Repeat the system bleed procedure as outlined in Steps 1 through 5 .
