Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery. Refer to BATTERY, MOUNTING AND CABLES .
  2. Raise and support the vehicle. Refer to JACKING & LIFTING .
    CAUTION: Clean off dirt and debris that may have collected around the rear axle speed sensor before removal to prevent fluid contamination.
  3. Remove the rear axle speed sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the rear axle speed sensor.

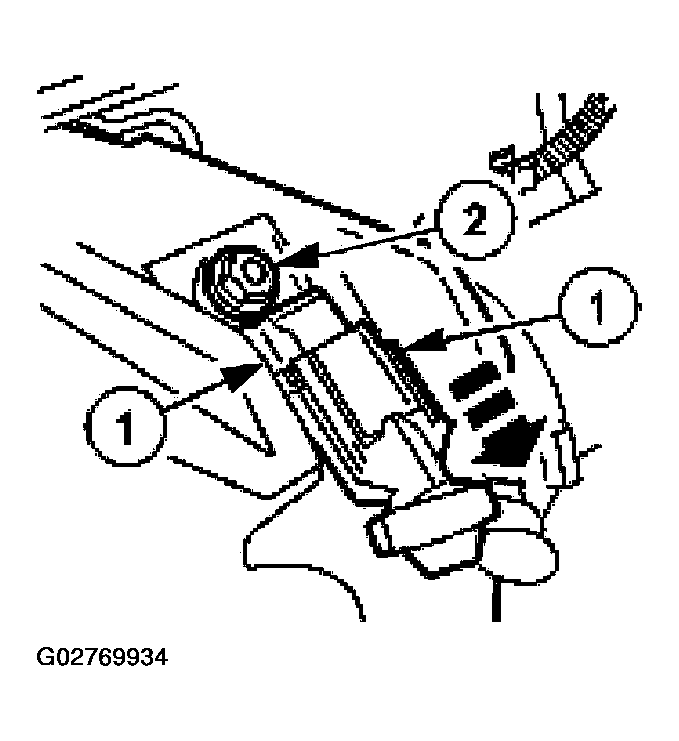

      Fig 1: Removing Rear Axle Speed Sensor
      G02769934Courtesy of FORD MOTOR CO.
