Symptom Chart

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Failure of a mechanical brake component may not cause the yellow ABS warning indicator to illuminate or a DTC to be stored. The Symptom Chart is a starting point to begin diagnosis of these concerns.

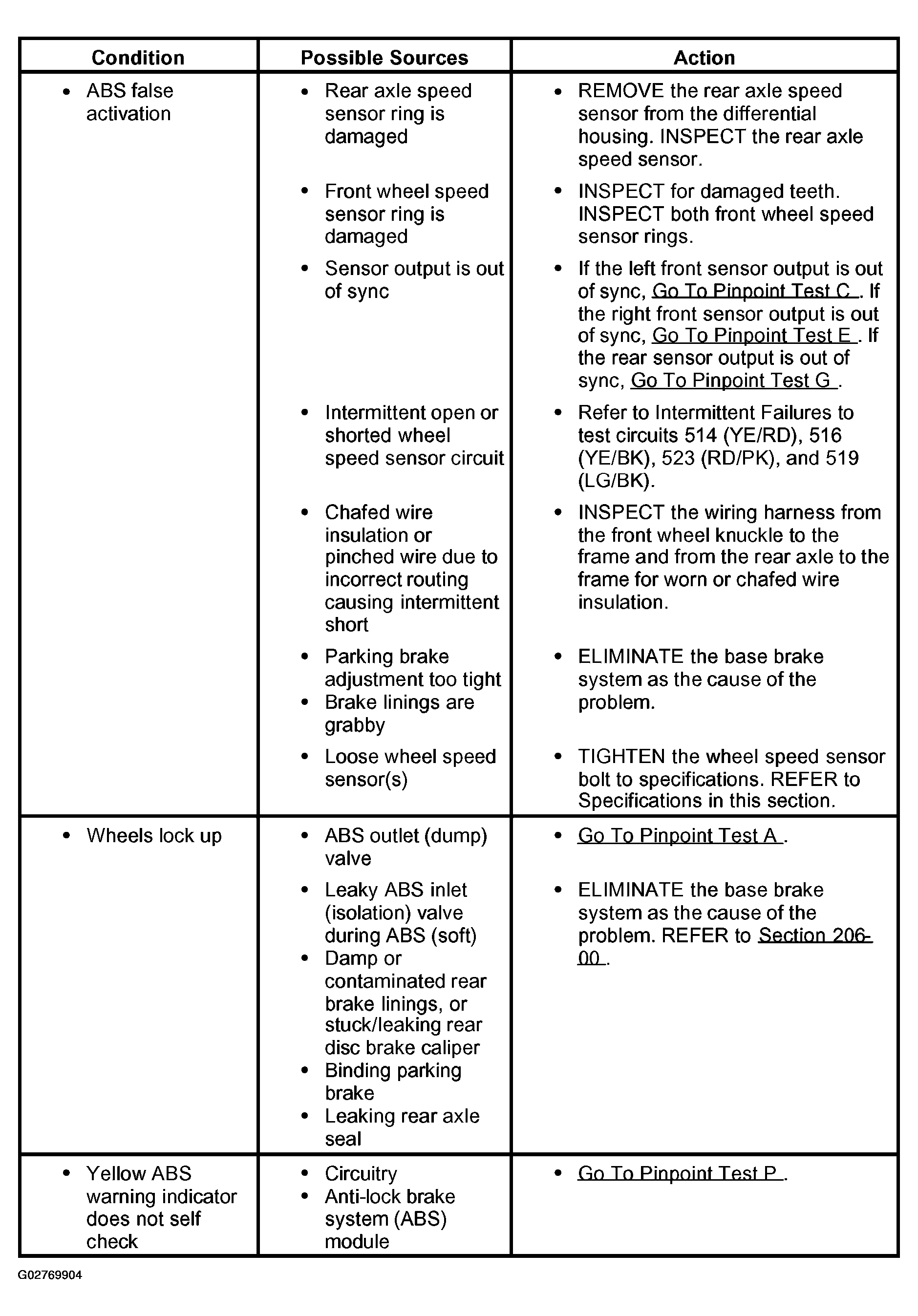

Fig 1: Symptom Chart (1 of 2)

Courtesy of FORD MOTOR CO.

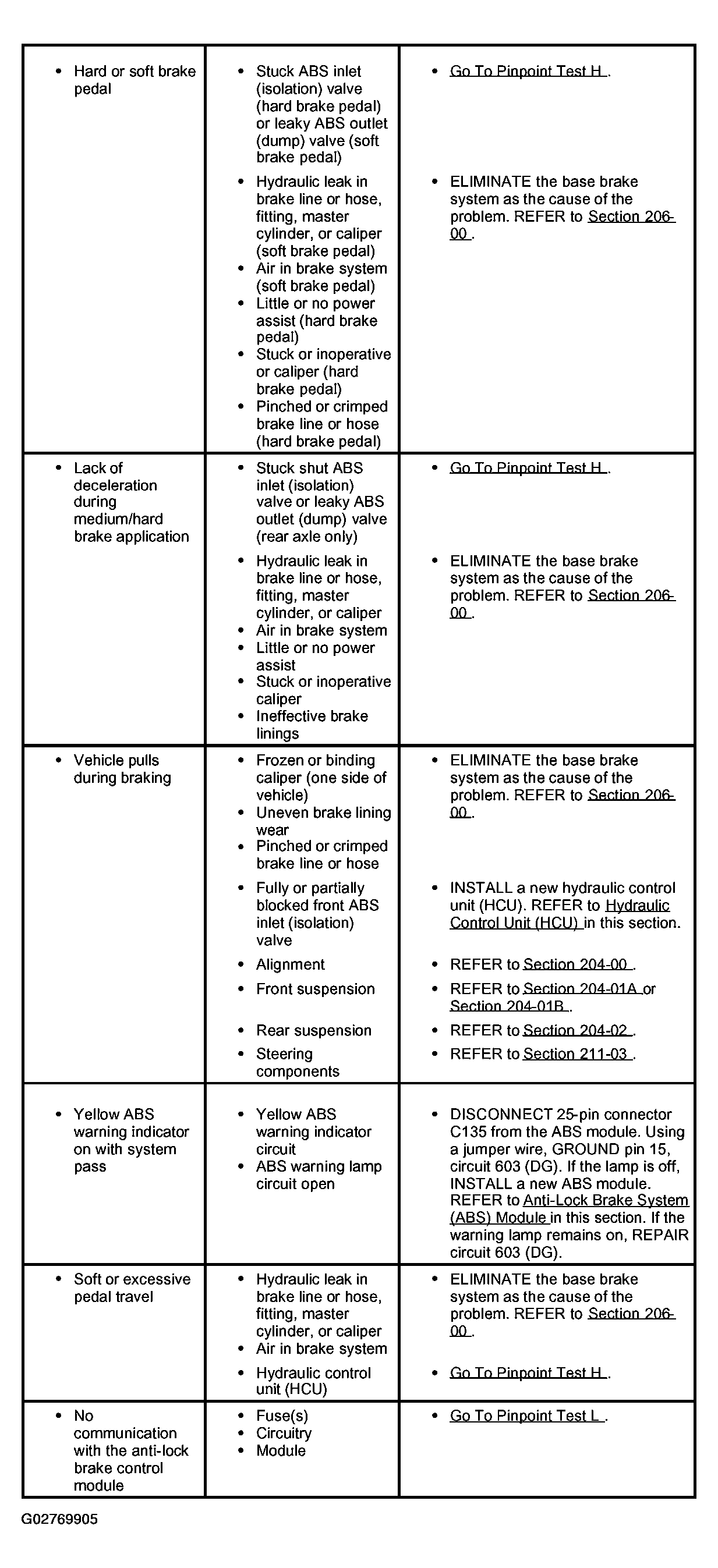

Fig 2: Symptom Chart (2 of 2)

Courtesy of FORD MOTOR CO.
