Pinpoint Test M: DTC C1169: Testing

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Repair all other DTCs before proceeding.

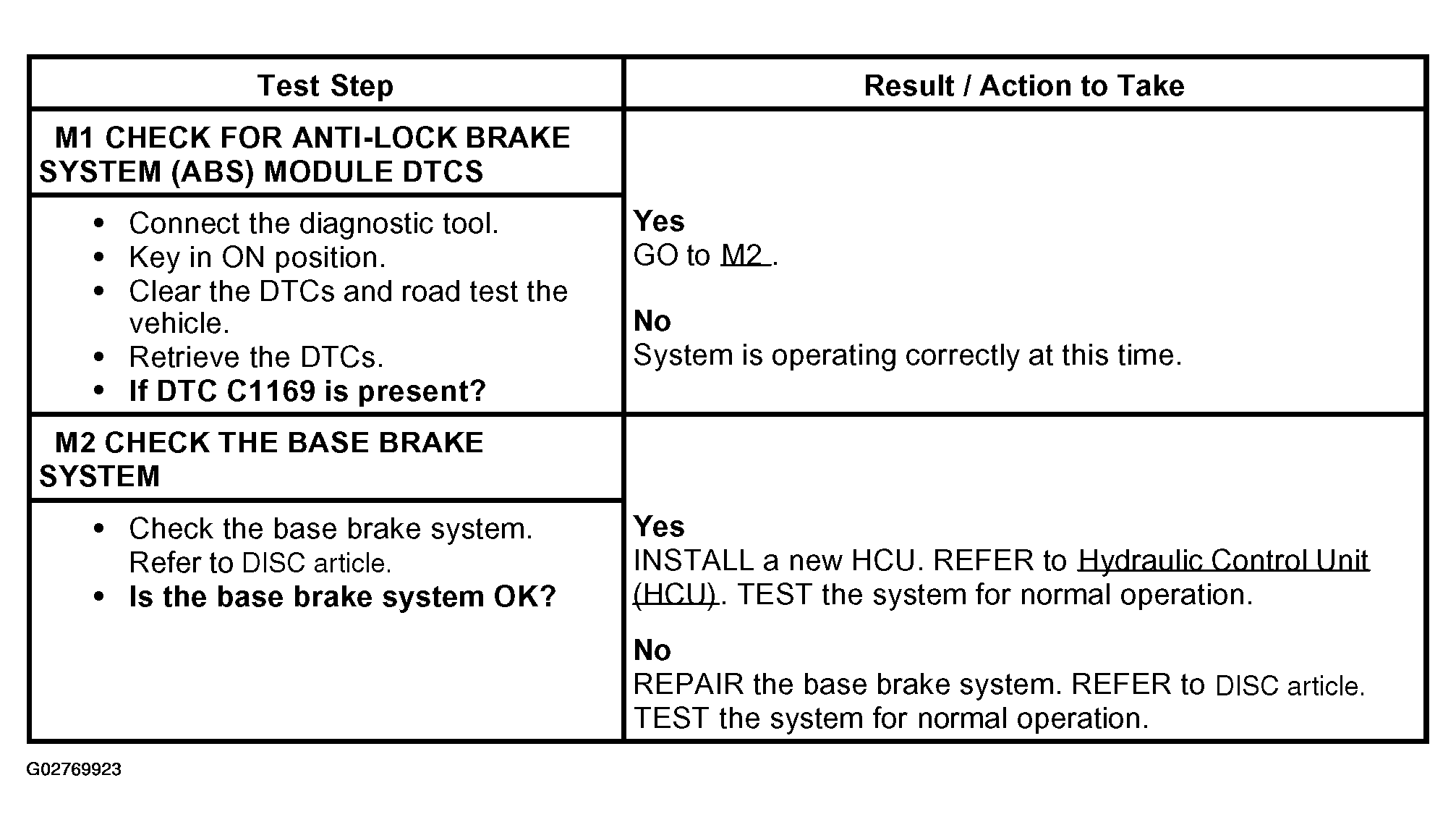

Fig 1: Pinpoint Test M: DTC C1169 - Excessive Dump Time (M1 & M2)
G02769923Courtesy of FORD MOTOR CO.
