Pinpoint Test F: DTC C1230: Testing

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

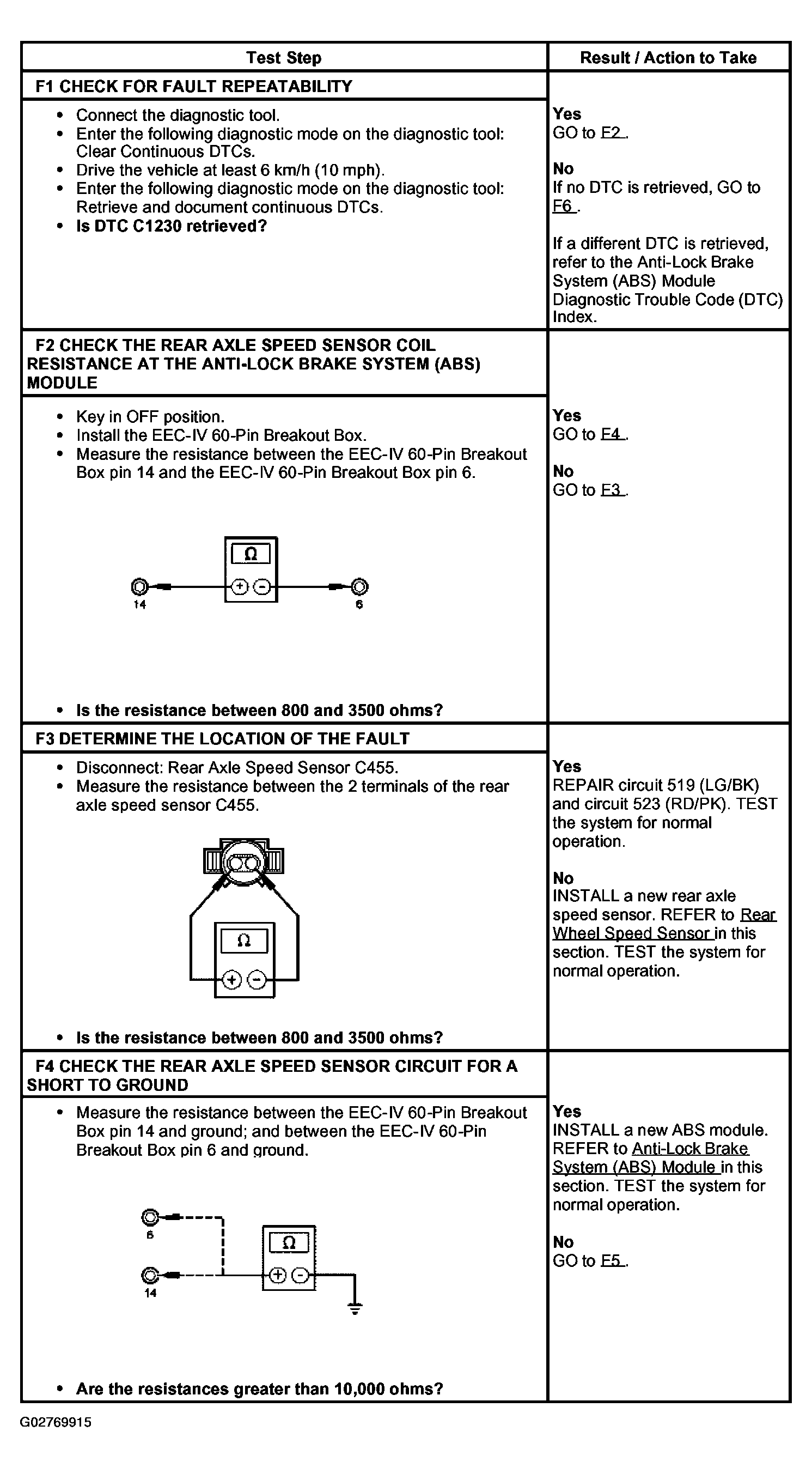

Fig 1: Pinpoint Test F: DTC C1230 - Rear Axle Speed Sensor Input Circuit Failure (F1-F4)
G02769915Courtesy of FORD MOTOR CO.

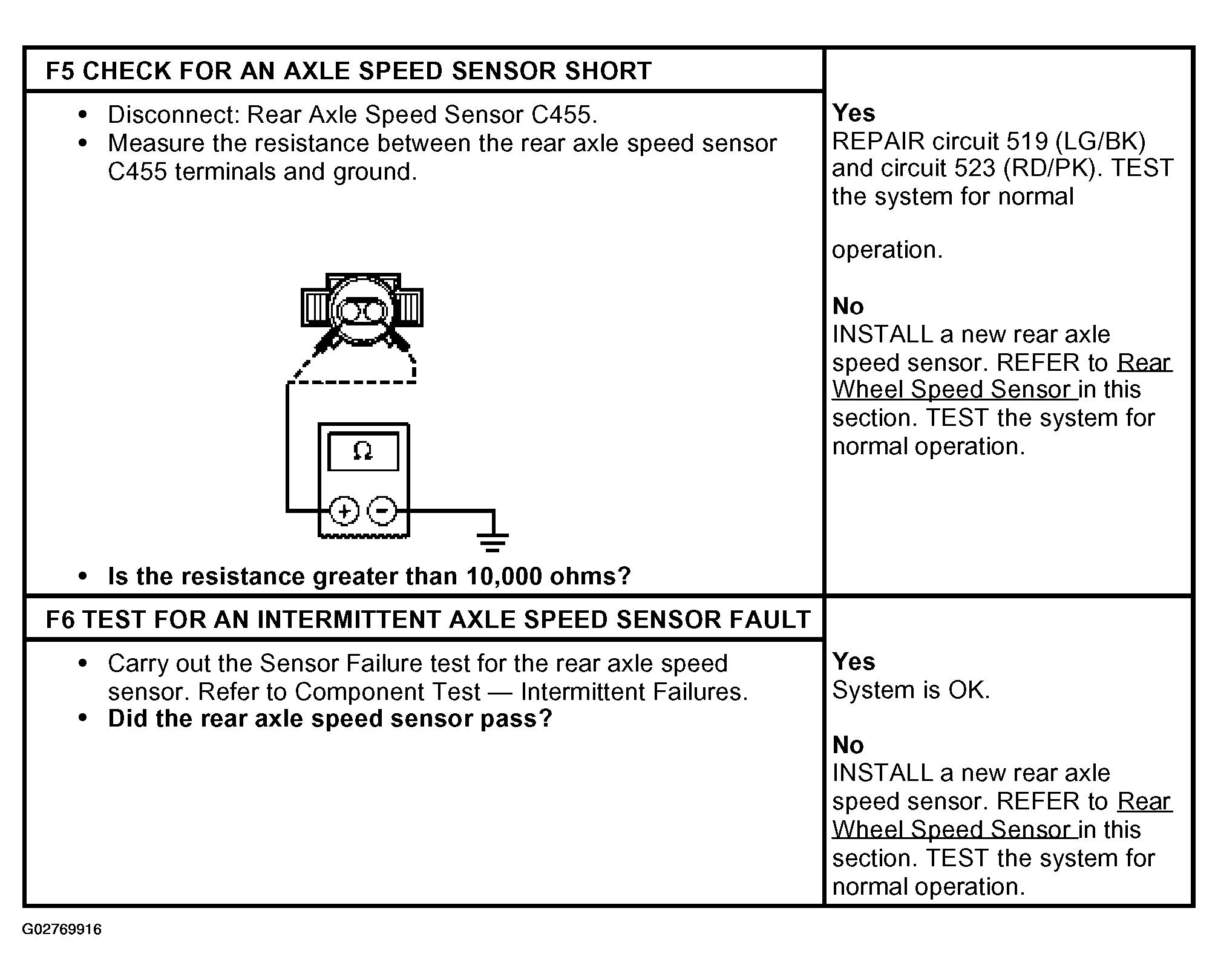

Fig 2: Pinpoint Test F: DTC C1230 - Rear Axle Speed Sensor Input Circuit Failure (F5 & F6)
G02769916Courtesy of FORD MOTOR CO.
