Pinpoint Test E: DTCs C1148, C1234: Testing

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

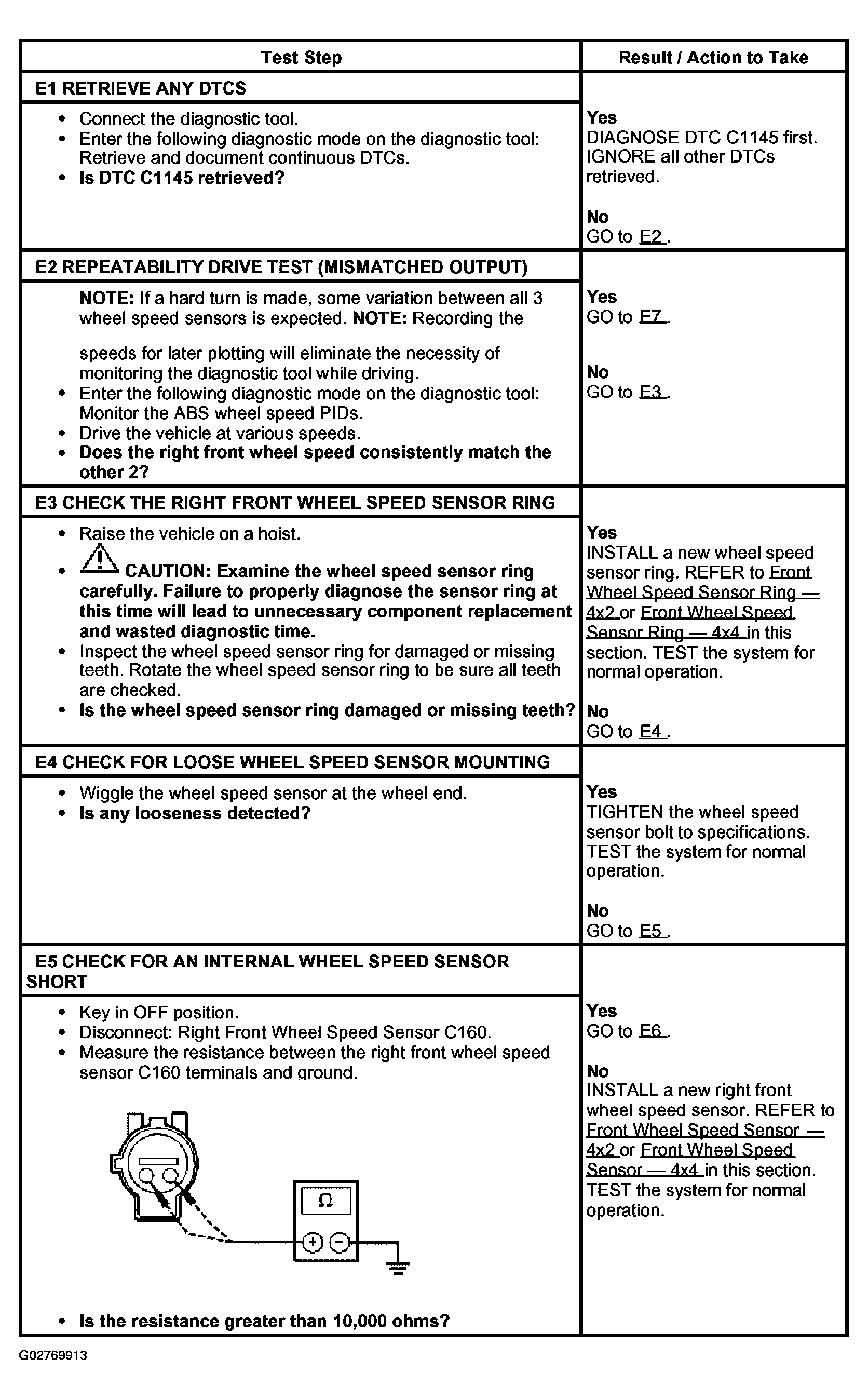

Fig 1: Pinpoint Test E: DTCs C1148, C1234 - Right Front Wheel Speed Sensor Input Signal Erratic/Missing (E1-E5)
G02769913Courtesy of FORD MOTOR CO.

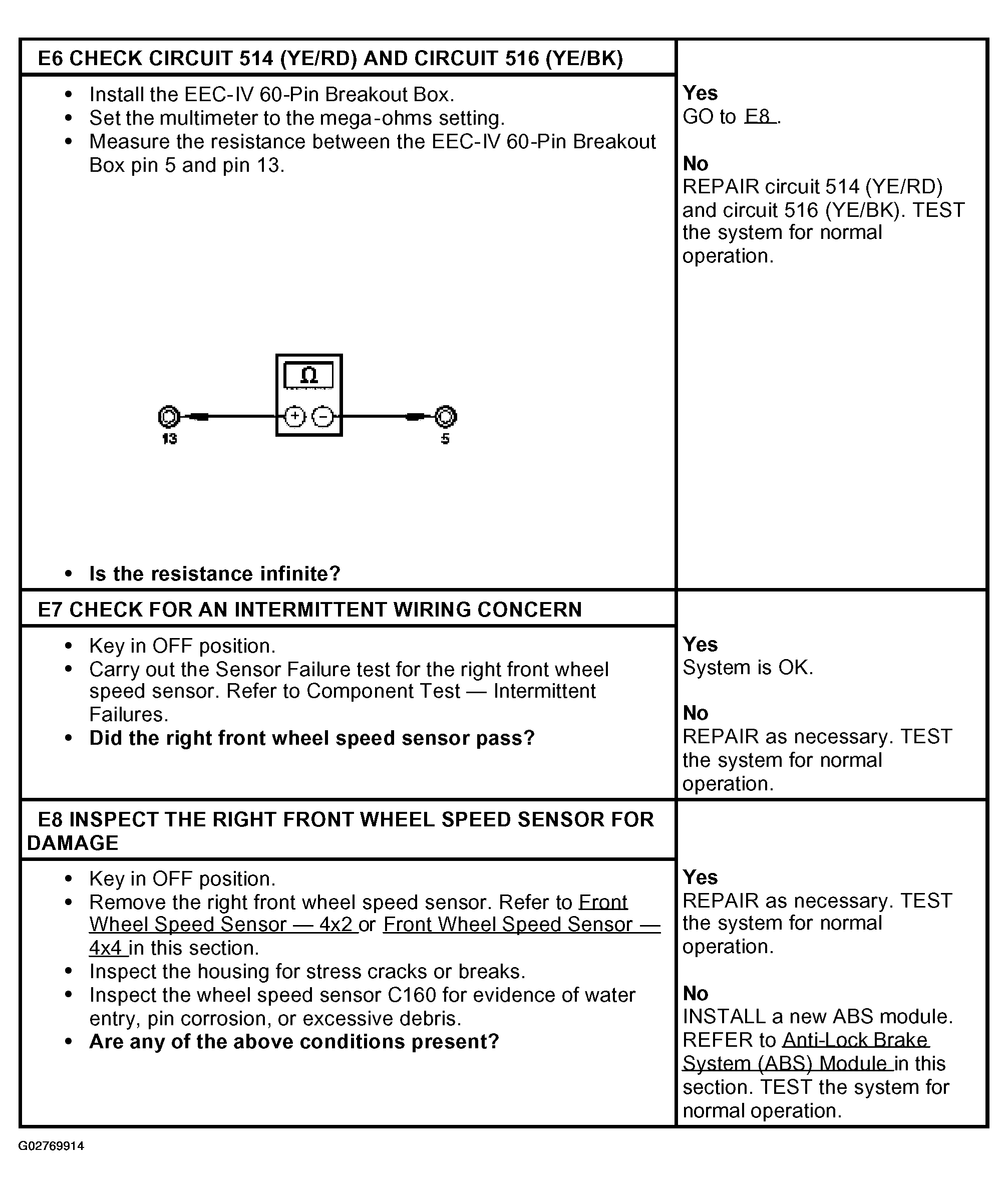

Fig 2: Pinpoint Test E: DTCs C1148, C1234 - Right Front Wheel Speed Sensor Input Signal Erratic/Missing (E6-E8)
G02769914Courtesy of FORD MOTOR CO.
