Pinpoint Test B: DTC C1155: Testing

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

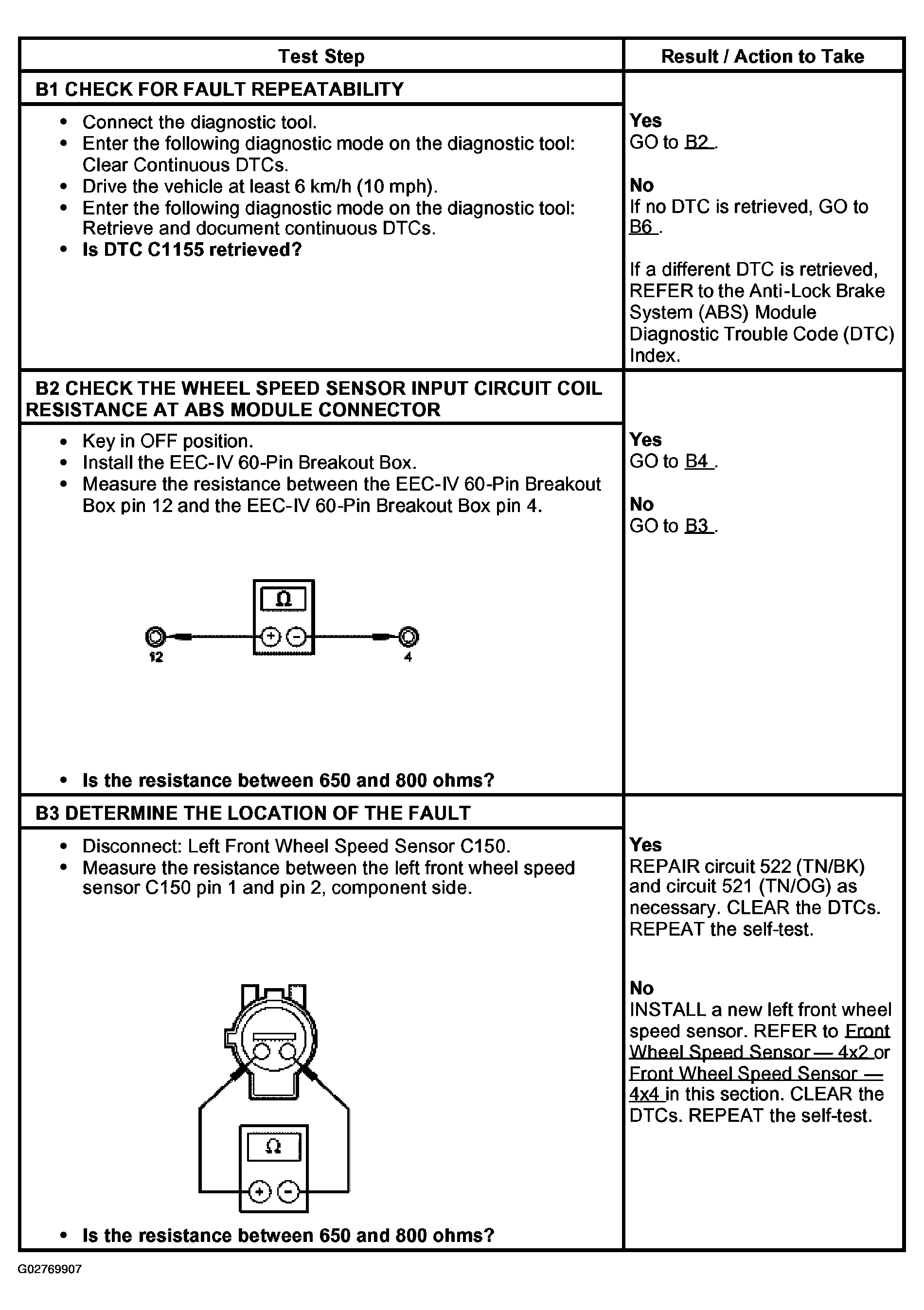

Fig 1: Pinpoint Test B: DTC C1155 - Left Front Wheel Speed Sensor Input Circuit Failure (B1-B3)
G02769907Courtesy of FORD MOTOR CO.

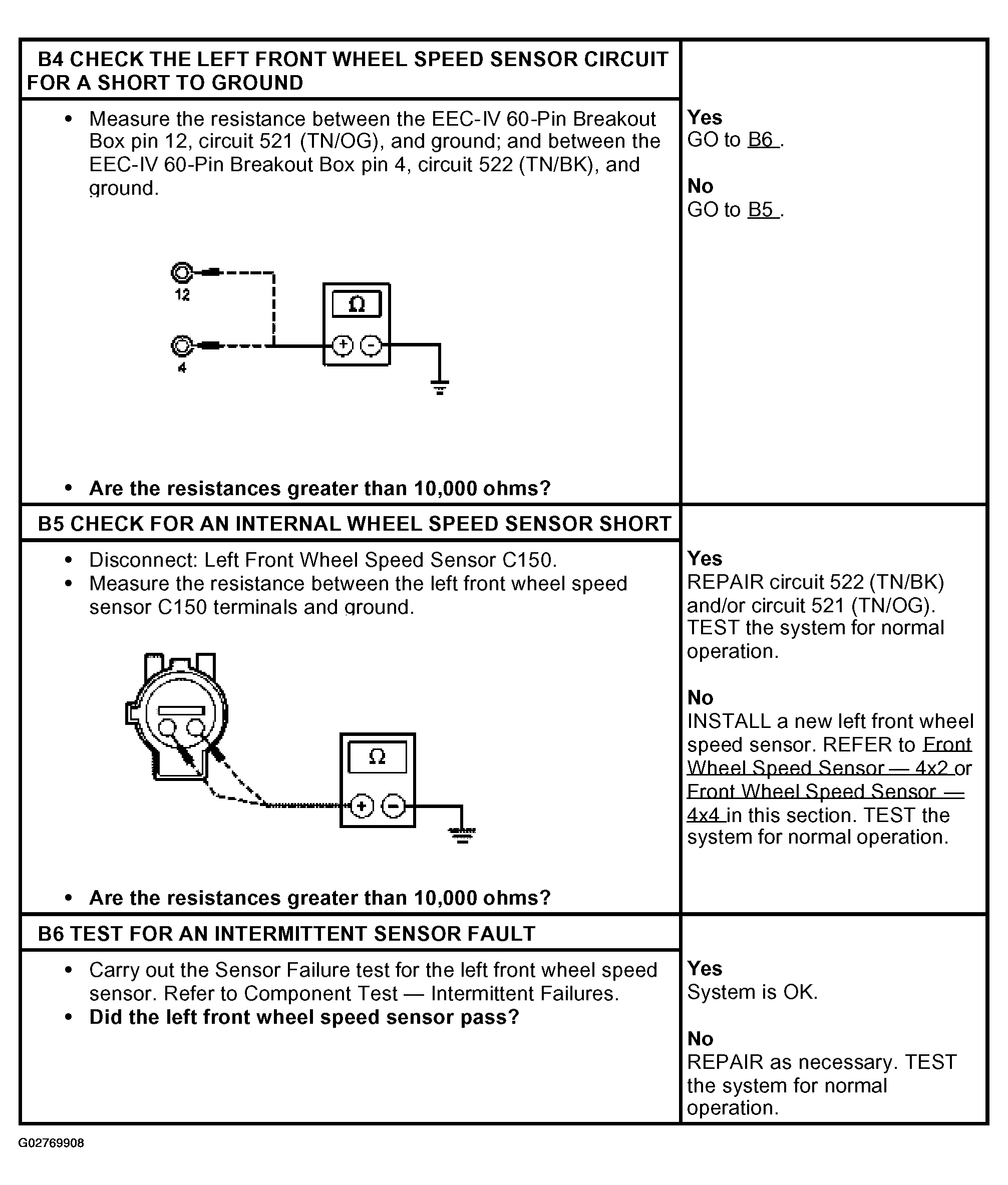

Fig 2: Pinpoint Test B: DTC C1155 - Left Front Wheel Speed Sensor Input Circuit Failure (B4-B6)
G02769908Courtesy of FORD MOTOR CO.
