Safety Belt Shoulder Height Adjuster - Front Row, Crew Cab and Excursion: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Make sure to tighten nuts and bolts to specification.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.

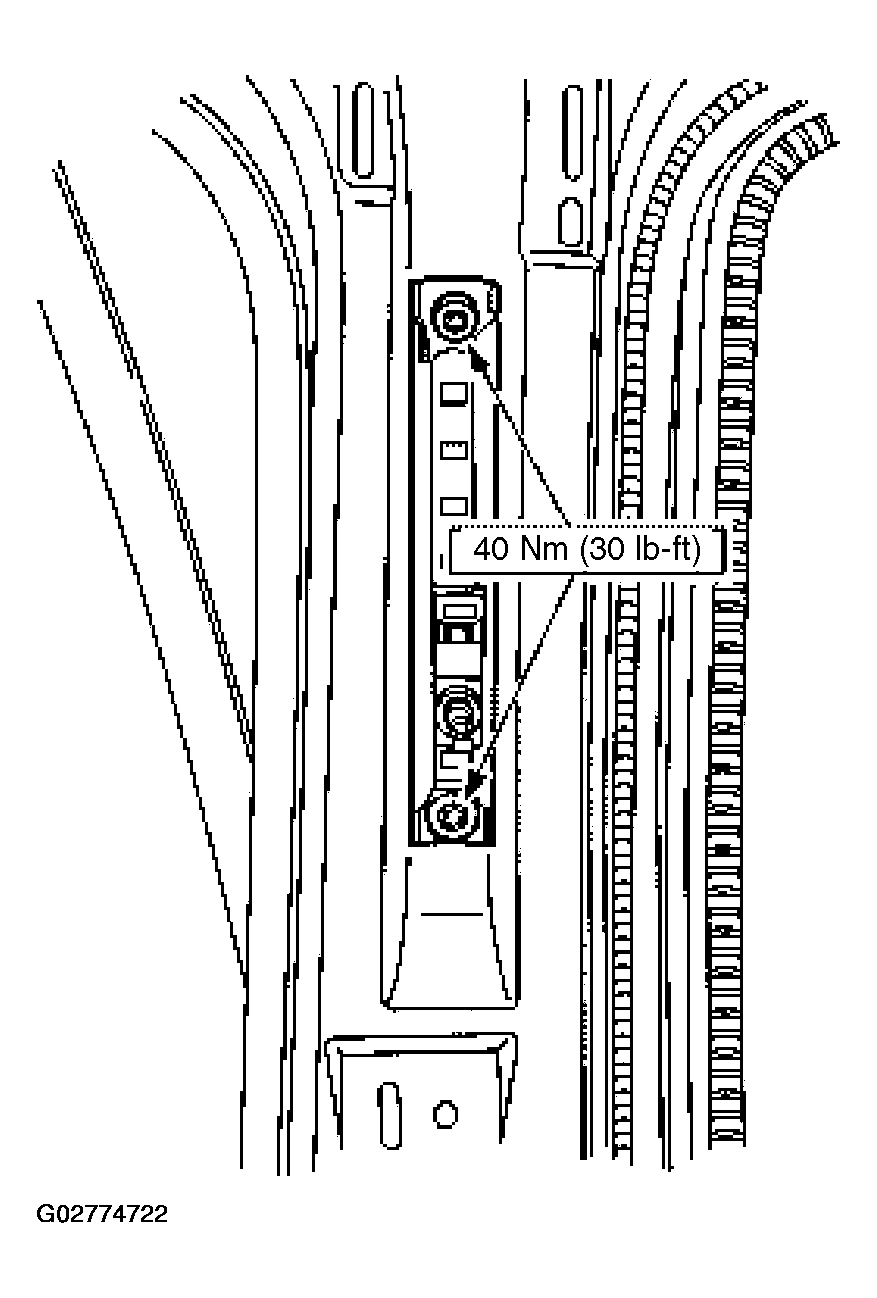

Fig 1: Installing Shoulder Safety Belt Height Adjuster

Courtesy of FORD MOTOR CO.

Fig 2: Installing Height Adjuster Cover

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Check the restraint system for correct operation.
