Safety Belt Buckle and Pretensioner - Seat Integrated Restraints (SIR), SuperCab: Installation
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

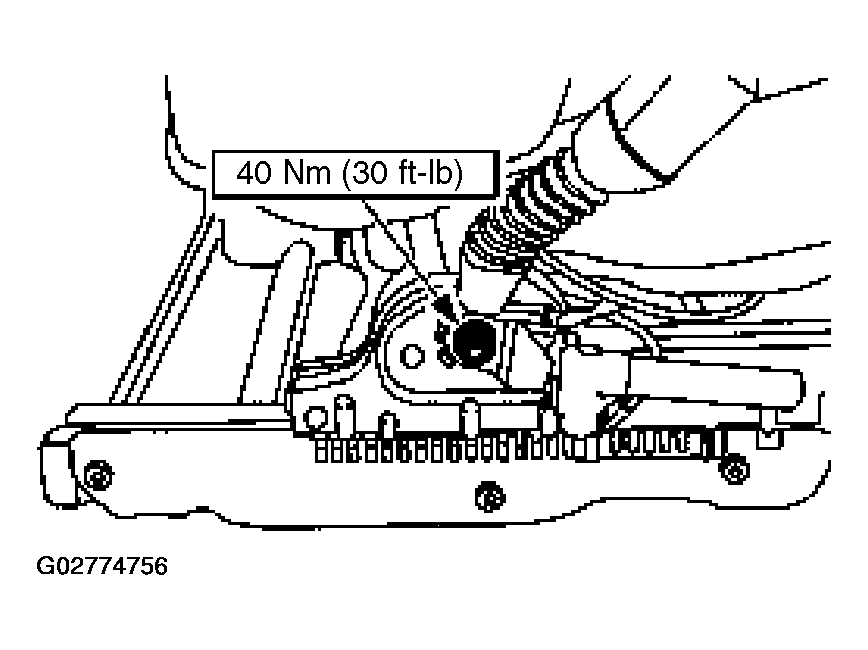

- Position the safety belt buckle and pretensioner to the seat and install the nut.
- Route the safety belt buckle pretensioner harness and usage detection switch wire harness as noted in removal.

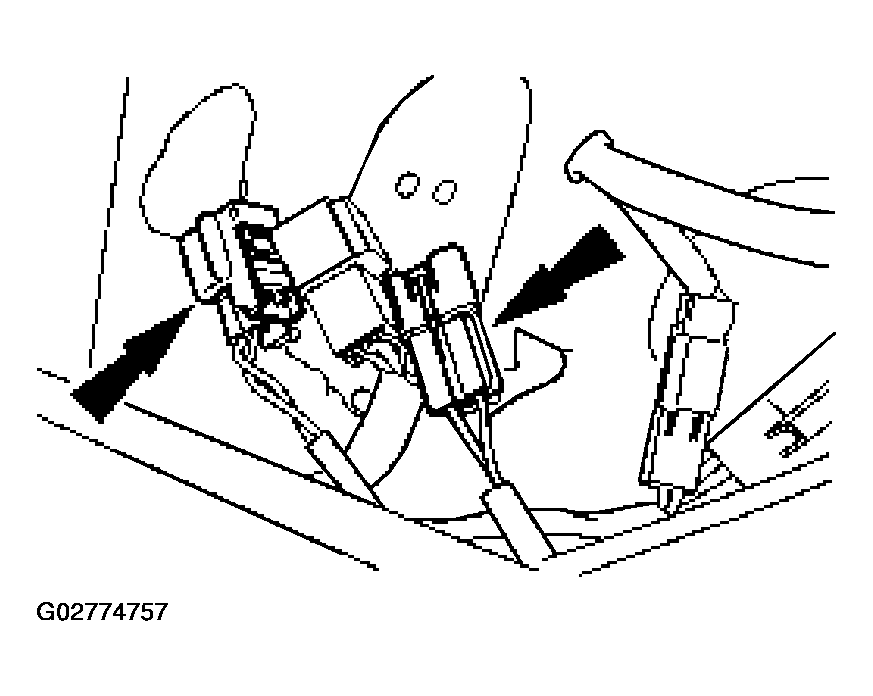

- Install the safety belt buckle pretensioner and usage detection switch electrical connectors to the seat cushion pan.
- Install the seat on the side with the affected safety belt buckle and pretensioner. Refer to SEATING .
- Repower the SRS. Refer to AIR BAG RESTRAINT SYSTEMS .
- Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
NOTE:
When tightening the safety belt buckle pretensioner retaining nut, make sure that the seat backrest pivot bolt does not turn with the nut.
